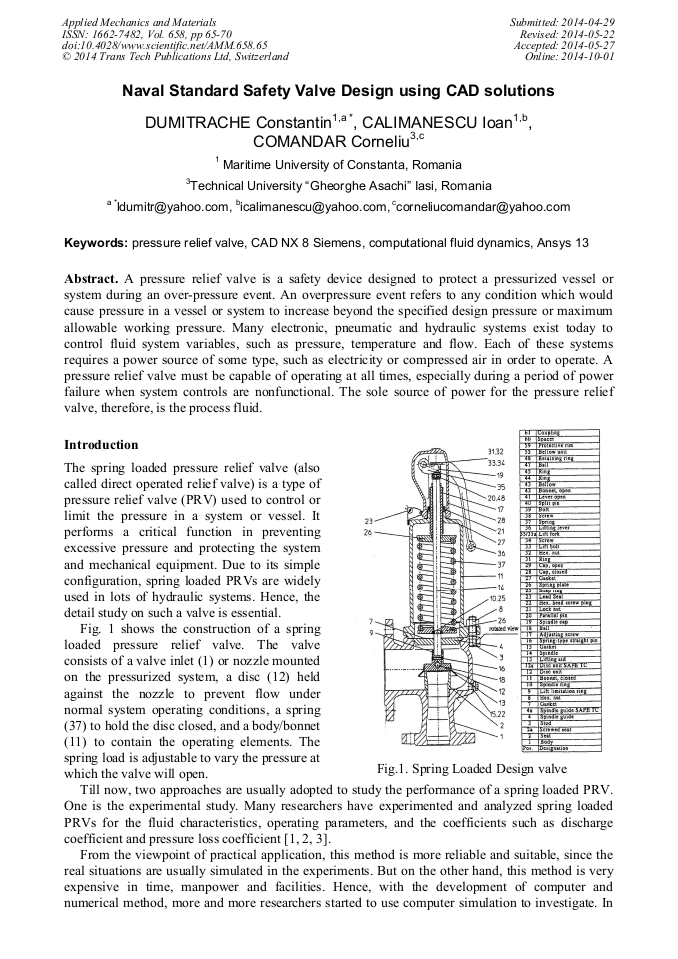

Naval Standard Safety Valve Design Using CAD Solutions

Abstract:

A pressure relief valve is a safety device designed to protect a pressurized vessel or system during an over-pressure event. An overpressure event refers to any condition which would cause pressure in a vessel or system to increase beyond the specified design pressure or maximum allowable working pressure. Many electronic, pneumatic and hydraulic systems exist today to control fluid system variables, such as pressure, temperature and flow. Each of these systems requires a power source of some type, such as electricity or compressed air in order to operate. A pressure relief valve must be capable of operating at all times, especially during a period of power failure when system controls are nonfunctional. The sole source of power for the pressure relief valve, therefore, is the process fluid.

• Periodical: Applied Mechanics and Materials (Volume 658)
• Pages: 65-70
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.658.65
• Online since: October 2014
• Authors: Constantin Dumitrache*, Ioan Calimanescu, Corneliu Comandar
• Keywords: Ansys 13, CAD Nx 8 Siemens, Computational Fluid Dynamics (CFD), Pressure Relief Valve

References

[1] Sallet, D. W., Nastoll, W., Knight, R. W., Palmer, M. E., Singh, A., Experimental Investigation of the Internal Pressure and Flow Fields in a Safety Valve, ASME Paper 81-WA/NE-19, Jan 1981, 1-8.

[2] Sallet D. W., Somers G. W., Flow Capacity and Response of Safety Relief Valves to Saturated Water Flow, Plant/Operations Progress, Volume 4 Issue 4, 1985, 207 – 216.

DOI: 10.1002/prsb.720040405

[3] Tadashi Narabayashi, Hideo Nagasaka, Masao Niwano, Yoshiteru Ohtsuki, Safety Relief Valve Performance for Two-phase Flow, Journal of nuclear science and technology, Vol. 23 , No. 3, March 1986, 197-213.

DOI: 10.1080/18811248.1986.9734973

[4] Asok Ray, Dynamic modeling and simulation of a relief valve, SIMULATION, Vol. 31, No. 5, 1978, 167-172.

DOI: 10.1177/003754977803100504

[5] L. Catalani, Dynamic Stability Analysis of Spring Loaded Safety Valves - Elements for Improved Valve Performance through Assistance Device, 7th International Conference on Structural Mechanics in Reactor Technology, DIVISION G: LWR PRESSURE COMPONENTS – VESSEL, Chicago, IL, USA, August 22-26, (1983).

[6] M. R. Mokhtarzadeh-Dehghan, N. Ladommatos and T. J. Brennan, Finite Element Analysis of Flow in a Hydraulic Pressure Valve, Applied Mathematical Modelling, Volume 21, Issue 7, July 1997, 437-445.

DOI: 10.1016/s0307-904x(97)00038-3

[7] J Francis, P L Betts, Modelling Incompressible Flow in a Pressure Relief Valve, Proceedings of the Institution of Mechanical Engineers, Part E: Journal of Process Mechanical Engineering, Volume 211, Number 2 / 1997, 83-93.

DOI: 10.1243/0954408971529575

[8] C. Srikanth, C. Bhasher, Flow Analysis in Valve with Moving Grids through CFD Techniques, Advances in Engineering Sofware, 40 2009, 193-201.

DOI: 10.1016/j.advengsoft.2008.04.003

[9] Xue Guan Song, Lin Wang, Seong Gul Kim, Young Chul Park, Transient Flow Analysis of Spring Loaded Pressure Safety Valve, ASME 2009 Pressure Vessel and Piping Conference, July (2009).

DOI: 10.1115/pvp2009-77043

[10] M. L. Barhalescu, Protective Coatings on carbon steel, Advanced Materials Research, vol 837, pag. 241-246, 2013, www. scientific. net/AMR. 837. 241.

DOI: 10.4028/www.scientific.net/amr.837.241
