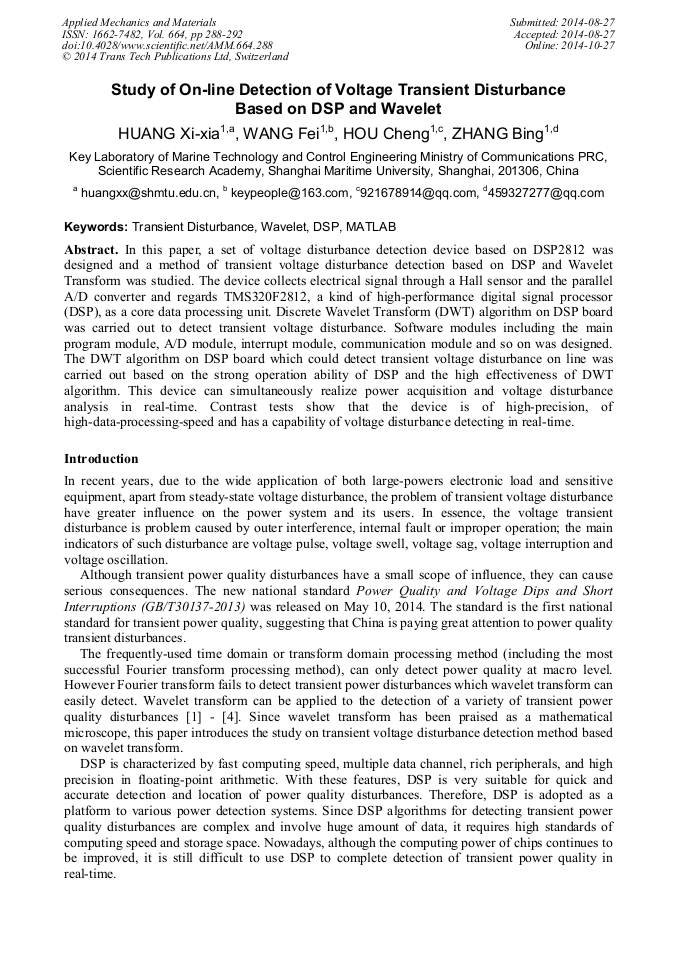

Study of On-Line Detection of Voltage Transient Disturbance Based on DSP and Wavelet

Abstract:

In this paper, a set of voltage disturbance detection device based on DSP2812 was designed and a method of transient voltage disturbance detection based on DSP and Wavelet Transform was studied. The device collects electrical signal through a Hall sensor and the parallel A/D converter and regards TMS320F2812, a kind of high-performance digital signal processor (DSP), as a core data processing unit. Discrete Wavelet Transform (DWT) algorithm on DSP board was carried out to detect transient voltage disturbance. Software modules including the main program module, A/D module, interrupt module, communication module and so on was designed. The DWT algorithm on DSP board which could detect transient voltage disturbance on line was carried out based on the strong operation ability of DSP and the high effectiveness of DWT algorithm. This device can simultaneously realize power acquisition and voltage disturbance analysis in real-time. Contrast tests show that the device is of high-precision, of high-data-processing-speed and has a capability of voltage disturbance detecting in real-time.
