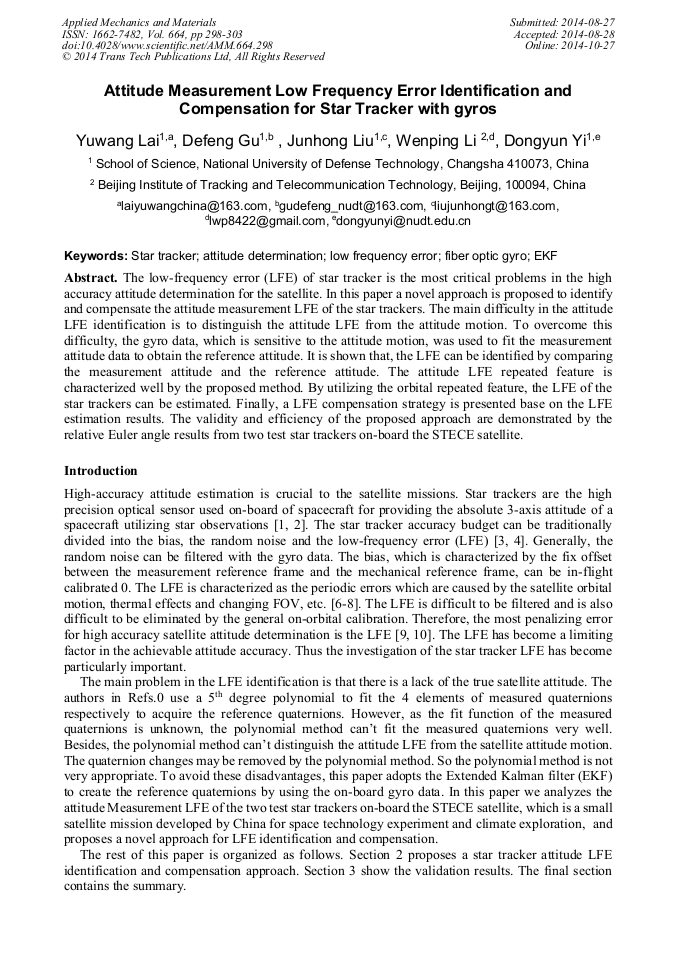

Attitude Measurement Low Frequency Error Identification and Compensation for Star Tracker with Gyros

Abstract:

The low-frequency error (LFE) of star tracker is the most critical problems in the high accuracy attitude determination for the satellite. In this paper a novel approach is proposed to identify and compensate the attitude measurement LFE of the star trackers. The main difficulty in the attitude LFE identification is to distinguish the attitude LFE from the attitude motion. To overcome this difficulty, the gyro data, which is sensitive to the attitude motion, was used to fit the measurement attitude data to obtain the reference attitude. It is shown that, the LFE can be identified by comparing the measurement attitude and the reference attitude. The attitude LFE repeated feature is characterized well by the proposed method. By utilizing the orbital repeated feature, the LFE of the star trackers can be estimated. Finally, a LFE compensation strategy is presented base on the LFE estimation results. The validity and efficiency of the proposed approach are demonstrated by the relative Euler angle results from two test star trackers on-board the STECE satellite.

• Periodical: Applied Mechanics and Materials (Volume 664)
• Pages: 298-303
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.664.298
• Online since: October 2014
• Authors: Yu Wang Lai*, De Feng Gu, Jun Hong Liu, Wen Ping Li, Dong Yun Yi
• Keywords: Attitude Determination, EKF, Fiber Optic Gyro, Low Frequency Error, Star Tracker

References

[1] Rogers G D, Schwinger M R, Kaidy J T, et al. Autonomous star tracker performance, Acta Astronautica 65(2009): 61–74.

DOI: 10.1016/j.actaastro.2009.01.045

[2] Sun Ting, Fei Xing, Zheng You. Optical System Error Analysis and Calibration Method of High-Accuracy Star Trackers, Sensors 13. 4 (2013): 4598-4623.

DOI: 10.3390/s130404598

[3] U. Schmidt, Ch. Elstner, K. Michel. ASTRO 15 Star Tracker Flight Experience and Further Improvements towards the ASTRO APS Star Tracker, AIAA Guidance, Navigation, and Control Conference, AIAA-2008-6649, (2008).

DOI: 10.2514/6.2008-6649

[4] Blarre L, Ouaknine J, Oddos-Marcel L. High accuracy Sodern Star Trackers: Recent improvements proposed on SED36 and HYDRA Star Trackers, AIAA Guidance, Navigation, and Control Conference, AIAA 2006-6046, Keystone, CO, United States, (2006).

DOI: 10.2514/6.2006-6046

[5] Ouaknine J, Blarre L, Oddos-Marcel L. Reduction of Low Frequency Error for SED36 and APS based HYDRA Star Trackers, Proc. 6th Internat. Conf. on Space Optics', ESTEC, Noordwijk, The Netherlands, 27-30 June 2006 (ESA SP-621, June 2006).

DOI: 10.1117/12.2308086

[6] Jorgensen, P.S., Jorgensen, J.L., Denver, T., Betto, M. In-flight quality and accuracy of attitude measurements from the CHAMP advanced Stellar compass', Acta Astronautica, 2005, 56, pp.181-186.

DOI: 10.1016/j.actaastro.2004.09.012

[7] Yuwang Lai, Junhong Liua, Yonghe Ding, et al. Precession-Nutation Correction for Star Tracker Attitude Measurement of STECE Satellite, Chinese Journal of Aeronautics, Vol. 27, No. 1, pp.117-123, (2014).

DOI: 10.1016/j.cja.2013.12.016

[8] Y. Lai, et al. In-flight quality evaluation of attitude measurements from STECE APS-01 star Tracker, Acta Astronautica (2014), http: /dx. doi. org/10. 1016/j. actaastro. 2014. 06. 009.

DOI: 10.1016/j.actaastro.2014.06.009

[9] Jiong-qi Wang, Kai Xiong, Haiyin Zhou. Low-frequency Periodic Error Identification and Compensation for Star Tracker Attitude Measurement, Chinese Journal of Aeronautics, Vol. 25, No. 2012, pp.615-621, (2012).

DOI: 10.1016/s1000-9361(11)60426-3

[10] K. Xiong, C.Q. Zhang, L.D. Liu. Identification of star sensor low-frequency error parameters, IET Control Theory Appl., 2012, Vol. 6, Iss. 3, pp.384-393.

DOI: 10.1049/iet-cta.2011.0086

[11] Crassidis, J.L., Markley, F.L., Cheng Y., A survey of nonlinear attitude estimation methods, J. Guid. Control Dyn., 2007, 30 (1), pp.12-28.

[12] Lefferts, E. J., Markley, F. L., and Shuster, M. D., Kalman Filtering for Spacecraft Attitude Estimation, J. Guid. Control Dyn., Vol. 5, No. 5, 1982, pp.417-429.

DOI: 10.2514/3.56190

[13] Markley, F. L., Attitude Error Representations for Kalman Filtering. J. Guid. Control Dyn., Vol. 63, No. 2, 2003, pp.311-317.

[14] Y. Yang, Spacecraft attitude determination and control: Quaternion based method, Annual Reviews in Control, 36 (2012): 198-219.

DOI: 10.1016/j.arcontrol.2012.09.003
