Synthesis and Characterization of Carboxyl-Terminated Hyperbranched Polyester

Shi Jie Niu; Jian Wang; Yu Qing Bai; Ming Tao Run

doi:10.4028/www.scientific.net/AMM.665.327

Paper Titles

Molecularly Imprinted Solid-Phase Extraction: Extraction of Traditional Chinese Medicine Active Ingredients
p.311

P-Toluene Sulfonic Acid Doped Polyaniline/Carbon Nanotube Nanocomposites by a Sequential Doping-Dedoping-Redoping Process
p.315

Mechanical Properties of Fumed Silica/PP Composites
p.319

Inhibition of TGFα-Saporin on Neointimal Hyperplasia via Inhibiting Smooth Muscle Cells Proliferation and Promoting its Apoptosis
p.323

Synthesis and Characterization of Carboxyl-Terminated Hyperbranched Polyester
p.327

Melting and Crystallization Properties of Crystalline/Crystalline Blends of Poly(Trimethylene Terephthalate) and Poly(Ethylene Terephthalate)
p.331

Preparation of Polyethylene with Vanadium/Titanium Bi-Metal Ziegler-Natta Catalysts
p.335

Desulfurization of Model Gasoline by Adsorption Process with Ruthenium Ion Modified Y-Zeolites
p.339

Effect of Nano-Calcium Carbonate on the Mechanical Properties of Polypropylene
p.343

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 665Synthesis and Characterization of...

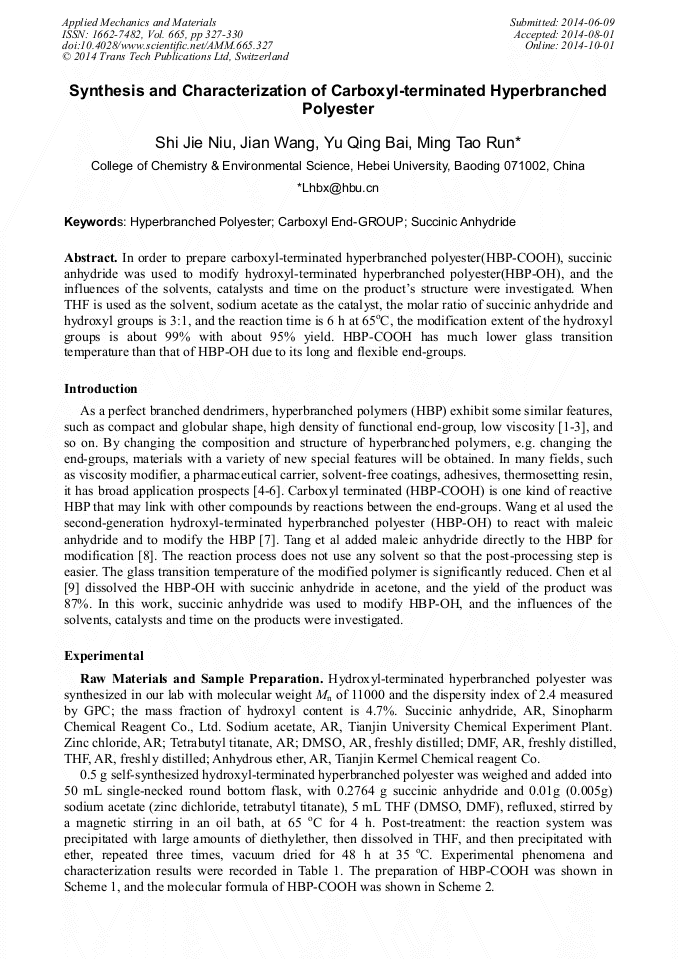

Synthesis and Characterization of Carboxyl-Terminated Hyperbranched Polyester

Abstract:

In order to prepare carboxyl-terminated hyperbranched polyester (HBP-COOH), succinic anhydride was used to modify hydroxyl-terminated hyperbranched polyester (HBP-OH), and the influences of the solvents, catalysts and time on the product’s structure were investigated. When THF is used as the solvent, sodium acetate as the catalyst, the molar ratio of succinic anhydride and hydroxyl groups is 3:1, and the reaction time is 6 h at 65°C, the modification extent of the hydroxyl groups is about 99% with about 95% yield. HBP-COOH has much lower glass transition temperature than that of HBP-OH due to its long and flexible end-groups.
