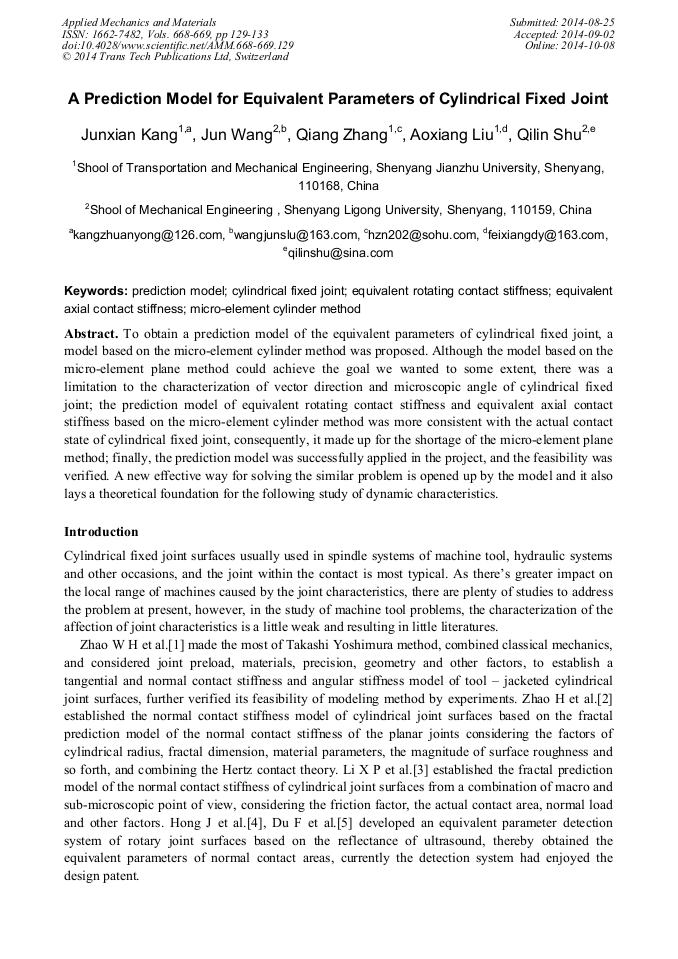

A Prediction Model for Equivalent Parameters of Cylindrical Fixed Joint

Abstract:

To obtain a prediction model of the equivalent parameters of cylindrical fixed joint, a model based on the micro-element cylinder method was proposed. Although the model based on the micro-element plane method could achieve the goal we wanted to some extent, there was a limitation to the characterization of vector direction and microscopic angle of cylindrical fixed joint; the prediction model of equivalent rotating contact stiffness and equivalent axial contact stiffness based on the micro-element cylinder method was more consistent with the actual contact state of cylindrical fixed joint, consequently, it made up for the shortage of the micro-element plane method; finally, the prediction model was successfully applied in the project, and the feasibility was verified. A new effective way for solving the similar problem is opened up by the model and it also lays a theoretical foundation for the following study of dynamic characteristics.

• Periodical: Applied Mechanics and Materials (Volumes 668-669)
• Pages: 129-133
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.668-669.129
• Online since: October 2014
• Authors: Jun Xian Kang*, Jun Wang, Qiang Zhang, Ao Xiang Liu, Qi Lin Shu
• Keywords: Cylindrical Fixed Joint, Equivalent Axial Contact Stiffness, Equivalent Rotating Contact Stiffness, Micro-Element Cylinder Method, Prediction Model

References

[1] Zhao W, Du C, Zhang J, et al. Analytical modeling method of dynamics for the spindle rotor system [J]. Chinese Journal of Mechanical Engineering, 2013, 49(6): 44-51. (In Chinese).

[2] Zhao H, Chen Q, Huang K. Fractal model of normal contact stiffness between two cylinders' joint interfaces [J]. Chinese Journal of Mechanical Engineering, 2011, 47(7): 53-58. (In Chinese).

DOI: 10.3901/jme.2011.07.053

[3] Li X, Zhao G, Liang Y, et al. Fractal Model of Normal Contact Stiffness between Two Cylinders' Joint Interfaces [J]. Chinese Journal of Agricultural Machinery, 2013, 44(010): 277-281. (In Chinese).

[4] Hong J, Zhang J, Du F, et al. Ultrasonic reflectivity extraction system and method for detecting rotary joint surface contact characteristics. Chinese Patent: CN102519717A, 2012-06-27.

[5] Du F, Hong J, Li B, et al. Contact Parameter Estimation with Ultrasonic Method [J]. Journal of Xi'an Jiaotong University, 2013, 47(3): 18-23. (In Chinese).

[6] Hou X, Yu H, Wang J, et al. Algorithm Research and Application of Fluid structure Interaction Vibration Problem in Inclined Pipe with Conveying Material [J]. Journal of Shenyang Jianzhu University(Natural Science), 2014 (001): 147-153. (In Chinese).

[7] Chen CH, Hu Q. SolidWorks® Simulation Basic Tutorial [M]. Beijing: Machinery Industry Press, 2010. (In Chinese).
