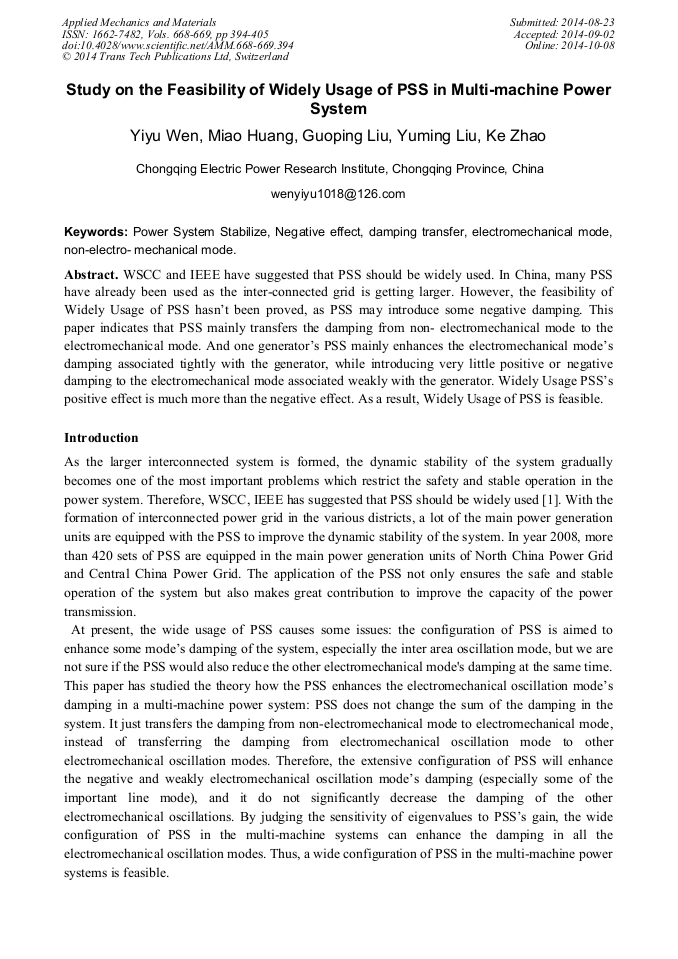

Study on the Feasibility of Widely Usage of PSS in Multi-Machine Power System

Abstract:

WSCC and IEEE have suggested that PSS should be widely used. In China, many PSS have already been used as the inter-connected grid is getting larger. However, the feasibility of Widely Usage of PSS hasn’t been proved, as PSS may introduce some negative damping. This paper indicates that PSS mainly transfers the damping from non-electromechanical mode to the electromechanical mode. And one generator’s PSS mainly enhances the electromechanical mode’s damping associated tightly with the generator, while introducing very little positive or negative damping to the electromechanical mode associated weakly with the generator. Widely Usage PSS’s positive effect is much more than the negative effect. As a result, Widely Usage of PSS is feasible.

• Periodical: Applied Mechanics and Materials (Volumes 668-669)
• Pages: 394-405
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.668-669.394
• Online since: October 2014
• Authors: Yi Yu Wen*, Miao Huang, Guo Ping Liu, Yu Ming Liu, Ke Zhao
• Keywords: Damping Transfer, Electromechanical Mode, Negative Effect, Non-Electro-Mechanical Mode, Power System Stabilize

References

[1] IEEE. IEEE Guide for the Preparation of Excitation System Specifications. (2004).

[2] H.A. Moussa, Yap-nan Yu: Dynamic Interaction of Multi-Machine Power System and Excitation Control, IEEE Trans. Of PAS, Jul. /Aug. (1974).

[3] Xuying Kai, Guodong Li, Qiuqi Rong: Matrix Theory and Its Applications [M]. Beijing: China Electric Power Press, 2003: 42-43.

[4] Xiaopeng Liu: Research on Power System Small Signal Stability method [D]. Xi'an: Xi'an Jiaotong University, (2002).

[5] Fan Zhang, Zheng Xu: Effects of Excitation System and Power System Stabilizer on Subsynchronous Resonance Damping [J]. Power system technology, 2006, 18: 14-19.

[6] Renmu He, Feng Shen, Dong Han, Zhiyong Han: Overview of Modeling and Parameter Identification of Excitation System of Generator [J]. Power system technology, 2007, 14: 62-67.

[7] Qingfen Liao, Dichen Liu, Jie Dang, liming Ying, Xue Cui, Xiaojie Pan: Sensitivity Analysis of Excitation System Model and Parameters on The Low Frequency Oscillation Eigenvalue [J]. Electric power automation equipment, 2009, 03: 69-73.

[8] Huiyun Han, Mei Huang: Power System Low Frequency Oscillation and Analysis of PSS [J]. North China Electric Power Technology, 2005, 07: 1-4.

[9] Wei Zhang, Li Yu, Yujuan Liu, haoNan Zhou: Synchronous Generator PSS and Excitation System Based on MATLAB Simulation [J]. Computer and Digital Engineering, 2011, 08: 62-65.

[10] Shuai Li, Jin Ma, Youqiang Xiao: The Impact of Load Models on PSS Parameter Tuning [J]. Modern Electric Power, 2010, 02: 1-5.
