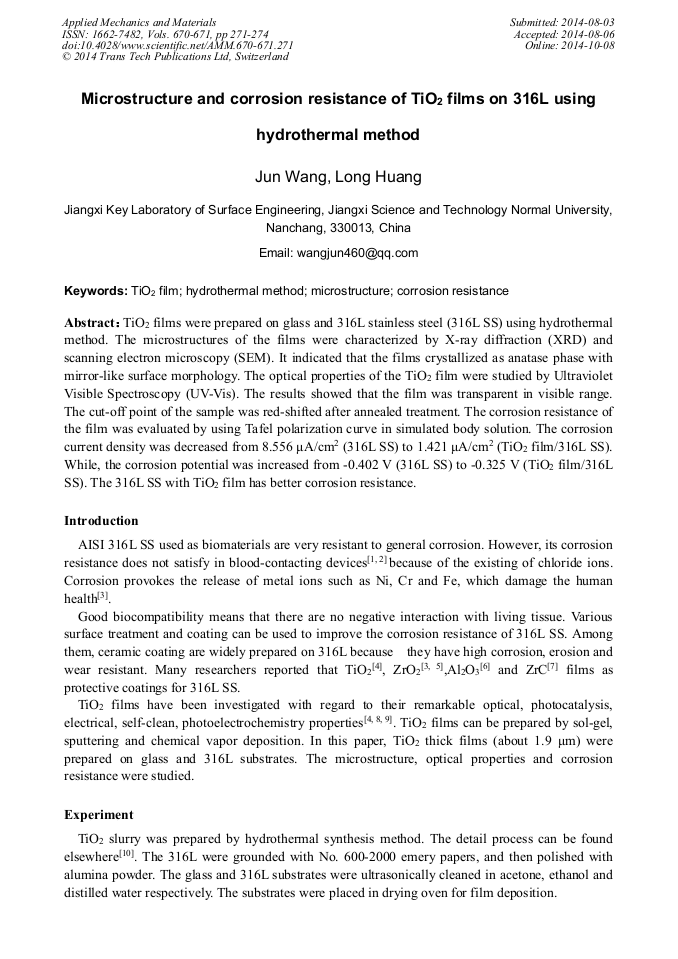

Microstructure and Corrosion Resistance of TiO₂ Films on 316L Using Hydrothermal Method

Abstract:

TiO₂ films were prepared on glass and 316L stainless steel (316L SS) using hydrothermal method. The microstructures of the films were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). It indicated that the films crystallized as anatase phase with mirror-like surface morphology. The optical properties of the TiO₂ film were studied by Ultraviolet Visible Spectroscopy (UV-Vis). The results showed that the film was transparent in visible range. The cut-off point of the sample was red-shifted after annealed treatment. The corrosion resistance of the film was evaluated by using Tafel polarization curve in simulated body solution. The corrosion current density was decreased from 8.556 μA/cm² (316L SS) to 1.421 μA/cm² (TiO₂ film/316L SS). While, the corrosion potential was increased from-0.402 V (316L SS) to-0.325 V (TiO₂ film/316L SS). The 316L SS with TiO₂ film has better corrosion resistance.

• Periodical: Applied Mechanics and Materials (Volumes 670-671)
• Pages: 271-274
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.670-671.271
• Online since: October 2014
• Authors: Jun Wang, Long Huang
• Keywords: Corrosion Resistance, Hydrothermal Method, Microstructure, TiO₂ Film

References

[1] J. Masalski, Improvement in corrosion resistance of the 316l stainless steel by means of Al2O3 coatings deposited by the sol-gel method, Thin Solid Films 349 (1999) 186-190.

DOI: 10.1016/s0040-6090(99)00230-8

[2] D. Xie, G. Wan, M.F. Maitz, H. Sun, N. Huang, Deformation and corrosion behaviors of Ti–O film deposited 316L stainless steel by plasma immersion ion implantation and deposition, Surface and Coatings Technology 214 (2013) 117-123.

DOI: 10.1016/j.surfcoat.2012.11.012

[3] S.K. Tiwari, J. Adhikary, T.B. Singh, R. Singh, Preparation and characterization of sol–gel derived yttria doped zirconia coatings on AISI 316L, Thin Solid Films 517 (2009) 4502-4508.

DOI: 10.1016/j.tsf.2008.12.025

[4] N. Barati, M.A.F. Sani, H. Ghasemi, Z. Sadeghian, S.M.M. Mirhoseini, Preparation of uniform TiO2 nanostructure film on 316L stainless steel by sol–gel dip coating, Appl Surf Sci 255 (2009) 8328-8333.

DOI: 10.1016/j.apsusc.2009.05.048

[5] E. Nouri, M. Shahmiri, H.R. Rezaie, F. Talayian, Investigation of structural evolution and electrochemical behaviour of zirconia thin films on the 316L stainless steel substrate formed via sol–gel process, Surface and Coatings Technology 205 (2011).

DOI: 10.1016/j.surfcoat.2011.05.024

[6] H. Vaghari, Z. Sadeghian, M. Shahmiri, Investigation on synthesis, characterisation and electrochemical properties of TiO2–Al2O3 nanocomposite thin film coated on 316L stainless steel, Surface and Coatings Technology 205 (2011) 5414-5421.

DOI: 10.1016/j.surfcoat.2011.06.004

[7] M. Ding, H. Zhang, C. Zhang, X. Jin, Characterization of ZrC coatings deposited on biomedical 316L stainless steel by magnetron sputtering method, Surface and Coatings Technology 224 (2013) 34-41.

DOI: 10.1016/j.surfcoat.2013.02.047

[8] J. Liu, D. Yang, F. Shi, Y. Cai, Sol–gel deposited TiO2 film on NiTi surgical alloy for biocompatibility improvement, Thin Solid Films 429 (2003) 225-230.

DOI: 10.1016/s0040-6090(03)00146-9

[9] B.S. Ng, I. Annergren, A.M. Soutar, K.A. Khor, A.E.W. Jarfors, Characterisation of a duplex TiO2/CaP coating on Ti6Al4V for hard tissue replacement, Biomaterials 26 (2005) 1087-1095.

DOI: 10.1016/j.biomaterials.2004.04.022

[10] Y.N. Xie, N. Huang, S.J. You., Y.M. Liu, B. Sebo, L.L. Liang, X.L. Fang, W. Liu, S.S. Guo, X.Z. Zhao, Improved performance of dye-sensitized solar cells by trace amount Cr-doped TiO2 photoelectrodes, Journal of Power Sources 224(2013)168-173.

DOI: 10.1016/j.jpowsour.2012.09.078

[11] S. Sério, M.E. Melo Jorge, M.J.P. Maneira, Y. Nunes, Influence of O2 partial pressure on the growth of nanostructured anatase phase TiO2 thin films prepared by DC reactive magnetron sputtering, Mater Chem Phys 126 (2011) 73-81.

DOI: 10.1016/j.matchemphys.2010.12.008
