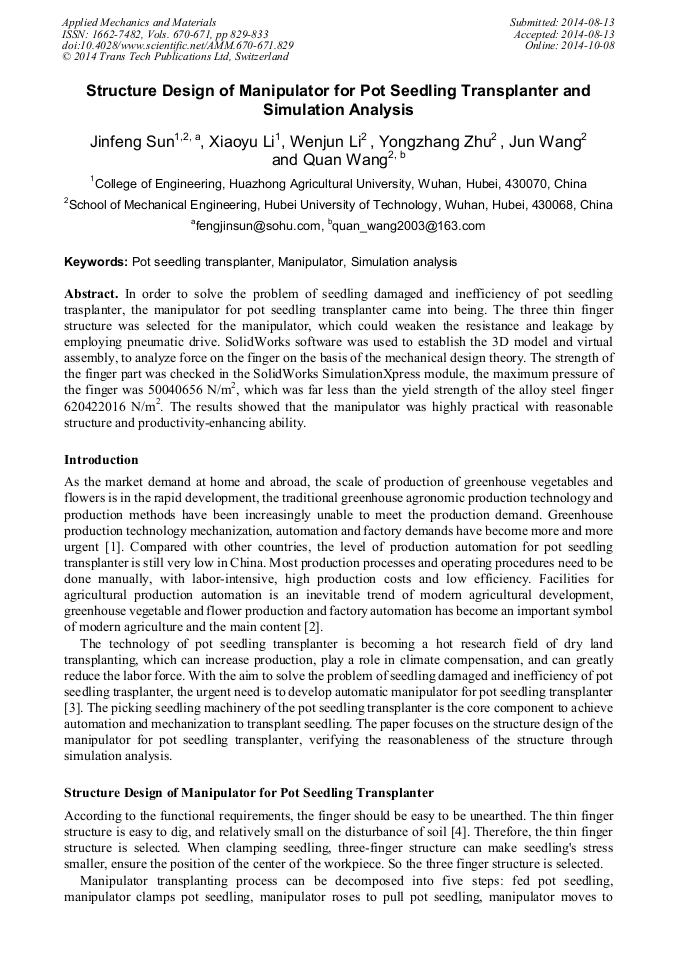

Structure Design of Manipulator for Pot Seedling Transplanter and Simulation Analysis

Abstract:

In order to solve the problem of seedling damaged and inefficiency of pot seedling trasplanter, the manipulator for pot seedling transplanter came into being. The three thin finger structure was selected for the manipulator, which could weaken the resistance and leakage by employing pneumatic drive. SolidWorks software was used to establish the 3D model and virtual assembly, to analyze force on the finger on the basis of the mechanical design theory. The strength of the finger part was checked in the SolidWorks SimulationXpress module, the maximum pressure of the finger was 50040656 N/m², which was far less than the yield strength of the alloy steel finger 620422016N/m². The results showed that the manipulator was highly practical with reasonable structure and productivity-enhancing ability.

You might also be interested in these eBooks

Applied Mechanics, Materials and Manufacturing IV

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 670-671)

Pages:

829-833

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.670-671.829

Citation:

Cite this paper

Online since:

October 2014

Authors:

Jin Feng Sun, Xiao Yu Li, Wen Jun Li, Yong Zhang Zhu, Jun Wang, Quan Wang

Keywords:

Manipulator, Pot Seedling Transplanter, Simulation Analysis
