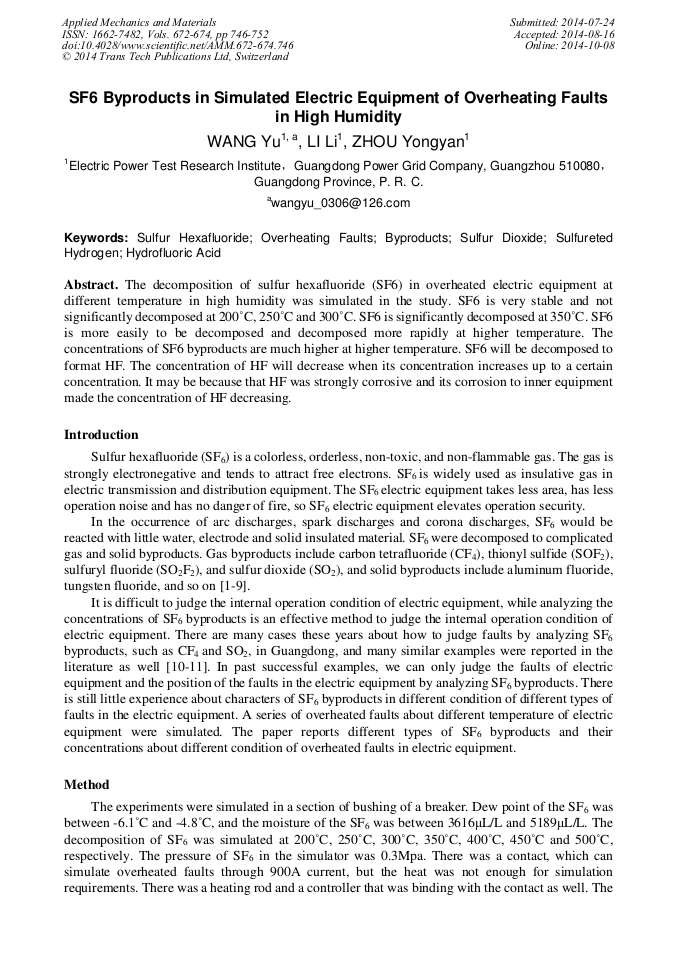

SF6 Byproducts in Simulated Electric Equipment of Overheating Faults in High Humidity

Abstract:

The decomposition of sulfur hexafluoride (SF6) in overheated electric equipment at different temperature in high humidity was simulated in the study. SF6 is very stable and not significantly decomposed at 200 °C, 250 °C and 300 °C. SF6 is significantly decomposed at 350 °C. SF6 is more easily to be decomposed and decomposed more rapidly at higher temperature. The concentrations of SF6 byproducts are much higher at higher temperature. SF6 will be decomposed to format HF. The concentration of HF will decrease when its concentration increases up to a certain concentration. It may be because that HF was strongly corrosive and its corrosion to inner equipment made the concentration of HF decreasing.

• Periodical: Applied Mechanics and Materials (Volumes 672-674)
• Pages: 746-752
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.672-674.746
• Online since: October 2014
• Authors: Yu Wang*, Li Li, Yong Yan Zhou
• Keywords: Byproducts, Hydrofluoric Acid, Overheating Faults, Sulfur Dioxide, Sulfur Hexafluoride, Sulfureted Hydrogen

References

[1] Mollie Averyt, SF6 Byproducts: safety, cleaning and disposal concerns [C]. U.S. EPA's International Conference on SF6 and the Environment, San Antonio, November 29, (2006).

[2] Bessede JL, Krondorfer W. Impact of high voltage SF6 circuit breakers on global warming-Relative contribution of SF6 losses [C], U.S. EPA's conference, San Diego, Novermber 2-3, (2000).

[3] IEC60480. Guidelines for the checking and treatment of sulfur hexafluoride (SF6) taken from electrical equipment and specification for its reuse [S]. Second edition, (2004).

[4] Mastroianni M. SF6 analysis is the key to maintenance [J]. Electrical World, 1980, 194(9): 92-96.

[5] Sauer I. Neutral decomposition products in spark breakdown of SF6 [J]. IEEE Trans. Elec. Insul., 1986, 21(2): 111-115.

DOI: 10.1109/tei.1986.348932

[6] IEC/TR 62271-303, High-voltage switchgear and controlgear –Part 303: Use and handling of sulphur hexafluoride (SF6) [T]. First edition, (2008).

DOI: 10.3403/30201800

[7] Zhang Xiaoxing, Yao Yao, Tang Ju, Sun Caixin, Wan Lingyun. Actuality and Perspective of Proximate Analysis of SF6 Decomposed Products Under Partial Discharge [J]. High Voltage Engineering, 2008, 34 (8): 664-669 (in Chinese).

[8] Tang Ju, Li Tao, Wan Lingyun, Zhang Xiaoxing, Yao Yao. Gaseous Decomposition Components Analysis System [J]. High Voltage Engineering, 2008, 34 (4): 1583-1588 (in Chinese).

[9] Wang Yu, Li Zhi, Yao Weijian, Zhuang Xiansheng, Huang Chengji. Situation and Analysis of SF6 Byproducts of Gas Insulated Switchgear (220kV and above) in Guangdong Province [J]. High Voltage Engineering, 2009, 35 (4): 823-828 (in Chinese).

DOI: 10.1109/ciced.2008.5211699

[10] Zhang Zhongqi, Lian Hongsong. Using SO2 detection for failure checking of SF6 electricity equipment [J]. Electric Power, 2001, 34 (1): 77-80 (in Chinese).

[11] Wang Yuanyuan, Discussion of analyzing internal faults of SF6 electric equipment by SO2 concentrations[J], Fujian Electric Power and Electrician, 2001, 21(1): 56-57 (in Chinese).

[12] Yao Weijian, Cheng Nuowei, Detection of fault characteristic gases in SF6-insulated transformers [J]. Guangdong Electric Power, 1999, 12(4): 20-21 (in Chinese).

[13] Song Linmin, Wuqiang, Li Lincheng, Chromatograph Analysis of Toxic Impurities in SF6 [J], Liming Chemistry, 1992(3)：18-21 (in Chinese).

[14] Wang Weizong, Yue Fupeng, Xia Shugang, Application of GC-MS in Analyzing Trace Impurities in SF6 [J], Electric Technology, 1981(4): 3-4 (in Chinese).

[15] Wang Li, Analysis Technology of Trace Impurities in SF6 and its Application in Purifying Decomposition Gas of Arc Discharge[J], Electric Technology, 1988(6): 10-14 (in Chinese).

[16] Wang Li, Wang Jizong. Preparation technique of S2OF10 gas standard sample and determination method of the trace S2OF10 in SF6 [J]. Chinese Jounal of Chromatography, 1999, 17(5): 55-57 (in Chinese).

[17] Cheng Weiwei, Ma Guilan, Zhu Qinlong. Gas chromatographic determination of trace bispentafluorosulfur oxide in sulfur hexafluoride using a post-column switching and temperature programming method [J]. Chinese Jounal of Analytical Chemistry, 1998, 26(12): 1468-1470 (in Chinese).
