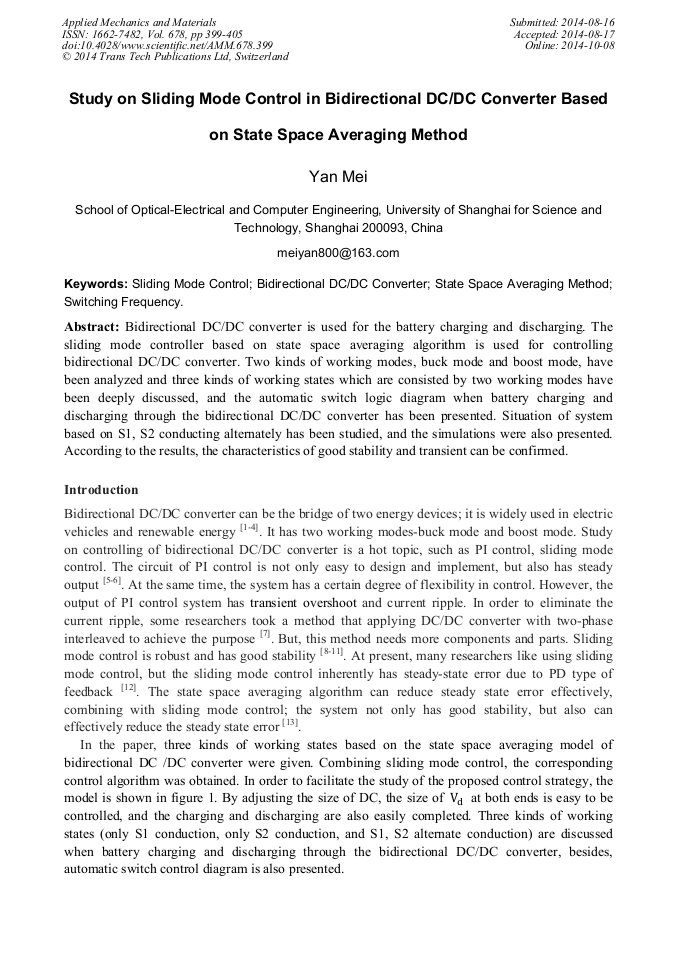

Study on Sliding Mode Control in Bidirectional DC/DC Converter Based on State Space Averaging Method

Abstract:

Bidirectional DC/DC converter is used for the battery charging and discharging. The sliding mode controller based on state space averaging algorithm is used for controlling bidirectional DC/DC converter. Two kinds of working modes, buck mode and boost mode, have been analyzed and three kinds of working states which are consisted by two working modes have been deeply discussed, and the automatic switch logic diagram when battery charging and discharging through the bidirectional DC/DC converter has been presented. Situation of system based on S1, S2 conducting alternately has been studied, and the simulations were also presented. According to the results, the characteristics of good stability and transient can be confirmed.

• Periodical: Applied Mechanics and Materials (Volume 678)
• Pages: 399-405
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.678.399
• Online since: October 2014
• Authors: Yan Mei*
• Keywords: Bidirectional DC/DC Converter, Sliding Mode Control, State Space Averaging Method, Switching Frequency

References

[1] O.C. Onar, J. Kobayashi, D.C. Erb and A. Khaligh: A Bidirectional High-Power-Quality Grid Interface With a Novel Bidirectional Noninverted Buck-Boost Converter for PHEVs, IEEE Transactiona on Vehicular Technology, Vol. 61 (2012) No. 5, p. (2018).

DOI: 10.1109/tvt.2012.2192459

[2] L.Z. Zhu, A Novel Soft-Commutating Isolated Boost Full-Bridge ZVS-PWM DC-DC Converter for Bidirectional High Power Applications, IEEE Transactions on Power Electronics, Vol. 21 (2006) No. 2, p.422.

DOI: 10.1109/tpel.2005.869730

[3] L.Q. Ni, D.J. Patterson and J.L. Hudgins: High Power Current Sensorless Bidirectional 16-Phase Interleaved DC-DC Converter for Hybrid Vehicle Application, IEEE Transactions on Power Electronics, Vol. 27 (2012) No. 3, p.1141.

DOI: 10.1109/tpel.2011.2165297

[4] K.M. Yoo and J.Y. Lee: A 10-kw Two-Stage Isolated/Bidirectional DC/DC Converter With Hybrid-Switching Technique, IEEE Transactions on Industrial Electronics, Vol. 60 (2013) No. 6, p.2205.

DOI: 10.1109/tie.2012.2191753

[5] B.V.P. Chong, L. Zhang and A. Dehghani: Modeling & Control of a Bidirectional Converter for a Stand-alone Photovoltaic Power Plant, Power Electronics and Applications (Leeds, United Kingdom, 2007), p.1.

DOI: 10.1109/epe.2007.4417357

[6] S. Thomsen, N. Hoffmann and F.W. Fuchs: PI Control, PI-Based State Space Control, and Model-Based Predictive Control for Drive Systems with Elastically Coupled Loads- A Comparative Study, IEEE Transactions on Industrial Electronics, Vol. 58 (2011).

DOI: 10.1109/tie.2010.2089950

[7] J.B. Baek, W.I. Choi and B.H. Cho: Digital Adaptive Frequency Modulation for Bidirectional DC-DC Converter, IEEE Transactions on Industrial Electronics, Vol. 60 (2013) No. 11, p.5167.

DOI: 10.1109/tie.2012.2224075

[8] J. Knight, S. Shirsavar and W. Holderbaum: An Improved Reliability Cuk Based Solar Inverter with Sliding Mode Control, IEEE Transactions on Power Electronics, Vol. 21 (2006) No. 4, p.1107.

DOI: 10.1109/tpel.2006.876786

[9] S.C. Tan, Y.M. Lai and C.K. Tse: General Design Issues of Sliding-Mode Controllers in DC-DC Converters, IEEE Transactions on Industrial Electronics, Vol. 55 (2008) No. 3, p.1160.

DOI: 10.1109/tie.2007.909058

[10] H. Sira-Ramírez and M. Rios-Bolívar: Sliding Mode Control of DC-to-DC Power Converters via Extend Linearization, IEEE Transaction on Circuits and Systems, Vol. 41 (1994) No. 10, p.652.

DOI: 10.1109/81.329725

[11] H. Sira-Ramírez: Sliding Motions in Bilinear Switched Networks, IEEE Transactions on Circuits and System, Vol. CAS-34 (1987) No. 8, p.919.

DOI: 10.1109/tcs.1987.1086242

[12] V.S.C. Raviraj and P.C. Sen: Comparative Study of Proportional-Integral, Sliding Mode and Fuzzy Logic Controllers for Power Converters, IEEE Transactions on Industry Applications, Vol. 33 (1997) No. 2, p.518.

DOI: 10.1109/28.568018

[13] P. Singh and S. Purwar: Sliding Mode Controller for PWM based Buck-Boost DC/DC Converter as State Space Averaging Method in Continuous Conduction Mode, 2nd International Conference on Power, Control and Embedded Systems, (Nov. 29 2010-Dec. 1 2010) p.1.

DOI: 10.1109/icpces.2012.6508100
