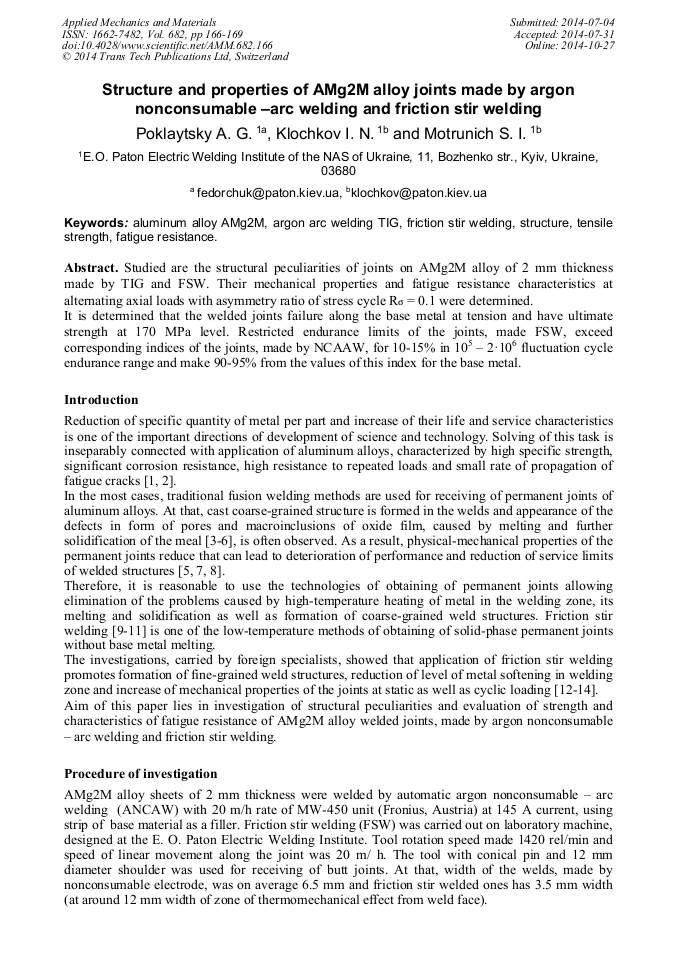

Structure and Properties of AMg2M Alloy Joints Made by Argon Nonconsumable – Arc Welding and Friction Stir Welding

Abstract:

Studied are the structural peculiarities of joints on AMg2M alloy of 2 mm thickness made by TIG and FSW. Their mechanical properties and fatigue resistance characteristics at alternating axial loads with asymmetry ratio of stress cycle R_σ = 0.1 were determined.It is determined that the welded joints failure along the base metal at tension and have ultimate strength at 170 MPa level. Restricted endurance limits of the joints, made FSW, exceed corresponding indices of the joints, made by NCAAW, for 10-15% in 10⁵ – 2·10⁶ fluctuation cycle endurance range and make 90-95% from the values of this index for the base metal.

• Periodical: Applied Mechanics and Materials (Volume 682)
• Pages: 166-169
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.682.166
• Online since: October 2014
• Authors: A.G. Poklaytsky, I.N. Klochkov, S.I. Motrunich
• Keywords: Aluminum Alloy AMg2M, Argon Arc Welding TIG, Fatigue Resistance, Friction Stir Welding, Structure, Tensile Strength

References

[1] Beletsky, V.M., Krivov, G.A. (2005) Aluminium alloys. In: Refer. book. Ed. by I.N. Fridlyander. Kiev: Komintex.

[2] Ishchenko, A. Ya., Labur, T.M. (2013) Welding of modern structures from aluminium alloys. Kiev: Naukova Dumka.

[3] Lozovskaya, A.V., Chajka, A.A., Bondarev, A.A. et al. (2001) Softening of high-strength aluminium alloys in different fusion welding processes. The Paton Welding J., 3, 13-17.

[4] Poklyatsky, A.G., Grinyuk, A.A. (2001) Effect of parameters of asymmetric and modulated currents on quality of aluminium alloy welded joints. Ibid., 7, 33-36.

[5] Sushkov, V.N., Skachkov, Yu.N., Novikov, O.M. et al. (1975) Susceptibility of light alloys to formation of oxide inclusions in welding. Svarochn. Proizvodstvo, 5, 23-25.

[6] Poklyatsky, A.G. (2001) Peculiarities of formation of macroinclusions of oxide film in weld metal of aluminium alloys (Review). The Paton Welding J., 3, 36-38.

[7] Makarov, I.I., Volynsky, V.N., Prokhorov, N.N. (1976) Influence of pores and oxide inclusions on strength of AMg6 alloy welded joints. Avtomatich. Svarka, 4, 27-30.

[8] Labur, T.M., Ishchenko, A. Ya., Poklyatsky, A.G. (1990) Influence of oxide film inclusions on characteristics of resistance to fracture of welded joints of AMg6 NPP aluminium alloy at low temperatures. Ibid., 12, 59-60.

[9] Kumagai, M., Tanaka, S. (2001) Application of friction stir welding to welded construction of aluminium alloys. J. of Light Metal Welding and Construction, 1, 22-28.

[10] Lambrakos, S.G., Fonda, R.W., Milewski, J.O. et al. (2003) Analysis of friction stir welds using thermocouple measurements. Science and Technology of Welding and Joining, 5, 385-390.

DOI: 10.1179/136217103225005624

[11] Poklyatsky, A.G. (2011) Peculiarities of temperature distribution in thin-sheet aluminium alloy AMg5M in friction stir welding. The Paton Welding J., 8, 42-45.

DOI: 10.15407/tpwj2017.04.04

[12] Larsson, H., Karlsson, L., Svensson, L. (2000) Friction stir welding of AA5083 and AA6082 aluminium alloys. Svetsaren, 2, 6-10.

[13] Sato, Y. (2002) Relationship between mechanical properties and microstructure in friction stir welded Al alloys. J. of the Japan Welding Society, 8, 33-36.

DOI: 10.1533/wint.2003.3171

[14] Shibayanagi, T. (2007) Microstructural aspects in friction stir welding. J. of Japan Institute of Light Metals, 9, 416-423.

DOI: 10.2464/jilm.57.416
