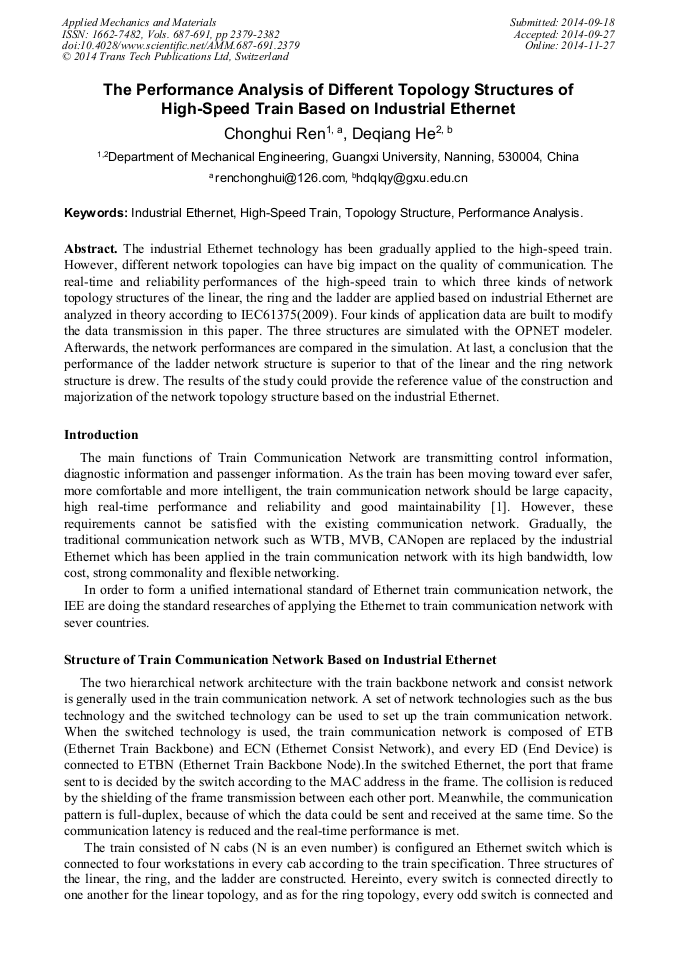

The Performance Analysis of Different Topology Structures of High-Speed Train Based on Industrial Ethernet

Abstract:

The industrial Ethernet technology has been gradually applied to the high-speed train. However, different network topologies can have big impact on the quality of communication. The real-time and reliability performances of the high-speed train to which three kinds of network topology structures of the linear, the ring and the ladder are applied based on industrial Ethernet are analyzed in theory according to IEC61375(2009). Four kinds of application data are built to modify the data transmission in this paper. The three structures are simulated with the OPNET modeler. Afterwards, the network performances are compared in the simulation. At last, a conclusion that the performance of the ladder network structure is superior to that of the linear and the ring network structure is drew. The results of the study could provide the reference value of the construction and majorization of the network topology structure based on the industrial Ethernet.

• Periodical: Applied Mechanics and Materials (Volumes 687-691)
• Pages: 2379-2382
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.687-691.2379
• Online since: November 2014
• Authors: Chong Hui Ren*, De Qiang He
• Keywords: High-Speed Train, Industrial Ethernet, Performance Analysis, Topology Structure

References

[1] Fu W.J., Liu Z.G., Wu J., Hou Y.C., Analysis of High-speed Train Communication Network Simulation Based on Industrial Ethernet, Urban Mass Transit, 15(12), 2012, pp.69-73.

[2] H. Lei., D. Q. He., J. Miao., Analysis of Delay in High-speed Electric Multiply Units Vehicle-Mounted Ethernet, Computer Measurement & Control, 21(5), 2013, pp.1320-1322.

[3] ZHU C., DONG Y.H., Network Simulation Technology and Its Application Based on OPNET, Radio Engineering, 43(3), 2013, pp.12-15.

[4] Gong L.N., Xu Y.B., Mou X.G., Study on Real-time Performance of Switched Ethernet Using OPNET Simulation, Industrial Control Computer, 21(4), 2008, pp.60-61.

[5] Li Z.Q., Feng D.Q., Propagation delay and reliability analysis of dual-ring parallel network, Chinese Journal of Scientific Instrument, 33(3), 2010, pp.715-720.

[6] D. Q. He., X. F. Zhong ., C. H. Ren and L. F. Xu., Ethernet-based Mass Volume Train Security Detection Network, Engineering Science and Technology Review, 6(2), 2013, pp.90-94.
