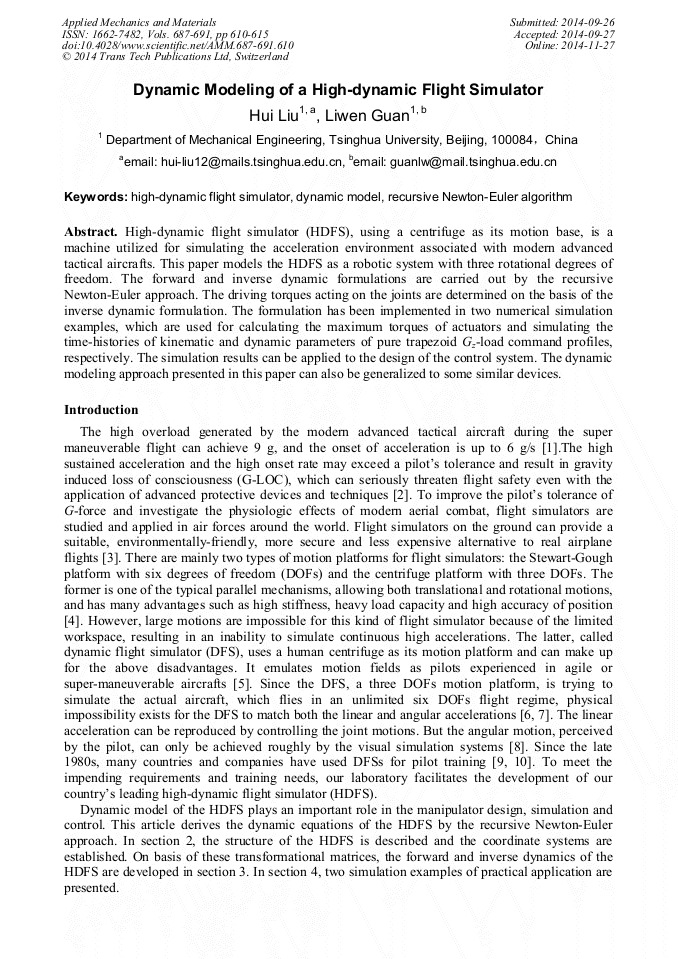

Dynamic Modeling of a High-Dynamic Flight Simulator

Abstract:

High-dynamic flight simulator (HDFS), using a centrifuge as its motion base, is a machine utilized for simulating the acceleration environment associated with modern advanced tactical aircrafts. This paper models the HDFS as a robotic system with three rotational degrees of freedom. The forward and inverse dynamic formulations are carried out by the recursive Newton-Euler approach. The driving torques acting on the joints are determined on the basis of the inverse dynamic formulation. The formulation has been implemented in two numerical simulation examples, which are used for calculating the maximum torques of actuators and simulating the time-histories of kinematic and dynamic parameters of pure trapezoid G_z-load command profiles, respectively. The simulation results can be applied to the design of the control system. The dynamic modeling approach presented in this paper can also be generalized to some similar devices.

• Periodical: Applied Mechanics and Materials (Volumes 687-691)
• Pages: 610-615
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.687-691.610
• Online since: November 2014
• Authors: Hui Liu, Li Wen Guan
• Keywords: Dynamic Model, High-Dynamic Flight Simulator, Recursive Newton-Euler Algorithm

References

[1] Xichen Geng, Guiding Yan, and Zhao Jin. The research and application of aviation acceleration physiology[J]. Flight Surgeon, 2008, 32(5): 189-196.

[2] Tripp Jr L D. Enhanced Recovery of Aircrew from G Acceleration Induced Loss of Consciousness (G-LOC): A Centrifuge Study[R]. VERIDIAN ENGINEERING DAYTON OH, (2001).

DOI: 10.21236/ada426973

[3] Z. Draco, J. Vidakovic, V. Kvrgic, et al, Modeling a human centrifuge as three-DoF robot manipulator[C], Proceedings of 1st Mediterranean Conference on Embedded Computing, Bar, Montenegro, June, (2012).

[4] Jun Wu, Tiemin Li, and Liwen Guan. Computed-torque control for a moving flight simulator platform[J]. Journal-Tsinghua University, 2006, 46(8): 1405-1408.

[5] Repperger D.W. A study of supermaneuveralbility flight trajectories through motion field simulation of a centrifuge simulator [J] Transactions of the ASME , Journal of Dynamic Systems, Measurement, and Control, 1992(114): 270-277.

DOI: 10.1115/1.2896524

[6] Crosbie R J, Kiefer DA. Controlling the human centrifuge as a force and motion platform for the dynamic flight simulator technologies[C], Proceedings of the AIAA Flight Simulation Conference, St Louis, MO, USA, 1985: 37-45.

DOI: 10.2514/6.1985-1742

[7] Cammarota J. P, Evaluation of full-sortie closed-loop simulated aerial combat maneuvering on the human centrifuge[C], Proceedings of the IEEE 1990 National Aerospace and Electronics Conference, May, 1990: 838-842.

DOI: 10.1109/naecon.1990.112876

[8] Wenju Pan, Lixin Wang. Principles of G-load simulation for a novel sustained-G flight simulator[J]. Acta Aeronautica Et Astronautica Sinica, 2010(11): 2159-2165.

[9] Colombo J, Crosbie R J, Tasman W G. Motion base control process and operator perceptual simulator: U.S. Patent 5353242[P]. 1994-10-4.

[10] Chen C L P, Repperger D W, Roberts R. A study of the kinematics, dynamics and control algorithms for a centrifuge motion simulator[C]/American Control Conference, Proceedings of the 1995. IEEE, 1995, 3: 1901-(1905).

DOI: 10.1109/acc.1995.531218
