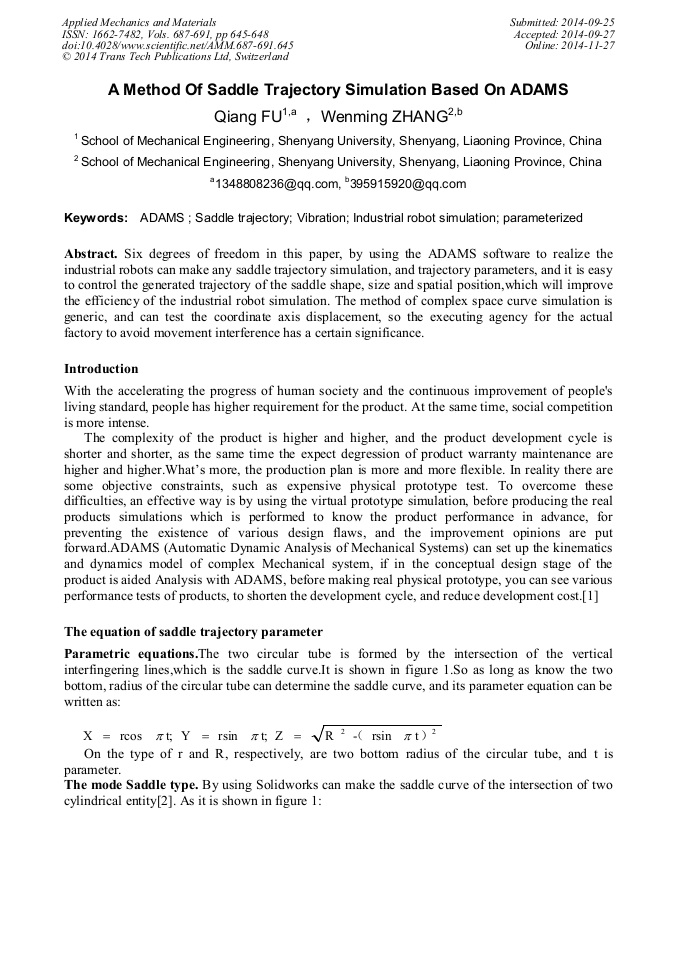

A Method of Saddle Trajectory Simulation Based on ADAMS

Abstract:

Six degrees of freedom in this paper, by using the ADAMS software to realize the industrial robots can make any saddle trajectory simulation, and trajectory parameters, and it is easy to control the generated trajectory of the saddle shape, size and spatial position,which will improve the efficiency of the industrial robot simulation. The method of complex space curve simulation is generic, and can test the coordinate axis displacement, so the executing agency for the actual factory to avoid movement interference has a certain significance.

• Periodical: Applied Mechanics and Materials (Volumes 687-691)
• Pages: 645-648
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.687-691.645
• Online since: November 2014
• Authors: Qiang Fu*, Wen Ming Zhang
• Keywords: Adams, Industrial Robot Simulation, Parameterized, Saddle Trajectory, Vibration

References

[1] Zenggang Li: ADAMS introductory explanation and example, in Chinese (National Defence Industry Publications, Beijing 2003).

[2] Tiequn Duan.: Based on ADAMS to take over the saddle automatic welding machine movement simulation: submitted to Journal Of Welding Production And Applications, in Chinese , (2008).

[3] Xinsong Jiang: Introduction to robotics, in Chinese (Science And Technology Publications, Shenyang Liaoning 1994).

[4] Hongwei wang: Modeling and simulation, in Chinese ( Science Publications, Beijing 2002).

[5] YuanchangXu: Industrial robot, in Chinese( China Light Industry Publications, Beijing 1999).
