Characterization and Oxidation Behavior of Iron-Based Coatings Prepared by Supersonic Arc Spraying at 800°C

Tian Quan Liang; Xian Fang Yang; Yi Li Wang; Cui Hua Zhao

doi:10.4028/www.scientific.net/AMM.697.90

Paper Titles

Effect of Artificial Aging on Microstructures and Mechanical Properties of Extruded Mg Alloy ZK60
p.72

Study of Epoxy Acrylic Cathodic Electrodeposition Coatings and Investigation on the Electrophoretic Coating Process
p.76

Fabrication of Stable Superhydrophobic Surface with Low Adhesion on Aluminum Foil
p.80

On the Characteristics and Corrosion Resistance of Anodic Alumina Films Prepared in Sulfuric Electrolyte with Different Additives
p.85

Characterization and Oxidation Behavior of Iron-Based Coatings Prepared by Supersonic Arc Spraying at 800°C
p.90

Influence of Heat Treatment Process on the Structures and Properties of Grate Bars Used in Sintering Trolley
p.95

Experimental Investigation on the Dynamic Properties and Failure Mode of Carbon Fiber Reinforced Thermoplastic Composites
p.102

Preparation and Properties of BMH-PE Antibacterial Films
p.109

Fatigue Life Prediction of Composite Laminates under Block Loading
p.114

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 697Characterization and Oxidation Behavior of...

Characterization and Oxidation Behavior of Iron-Based Coatings Prepared by Supersonic Arc Spraying at 800°C

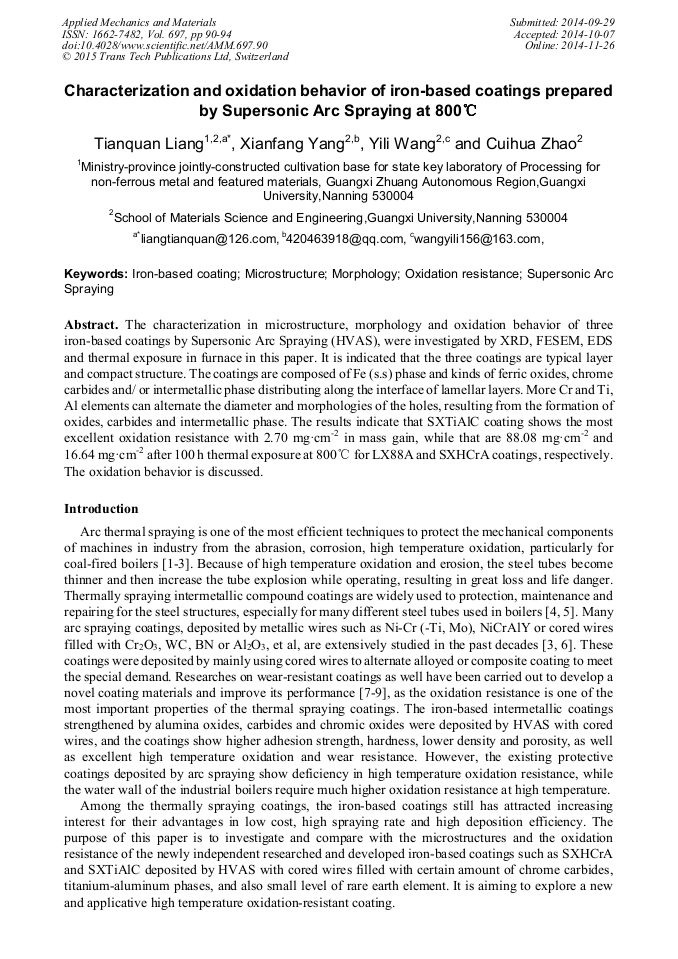

Abstract:

The characterization in microstructure, morphology and oxidation behavior of three iron-based coatings by Supersonic Arc Spraying (HVAS), were investigated by XRD, FESEM, EDS and thermal exposure in furnace in this paper. It is indicated that the three coatings are typical layer and compact structure. The coatings are composed of Fe (s.s) phase and kinds of ferric oxides, chrome carbides and/ or intermetallic phase distributing along the interface of lamellar layers. More Cr and Ti, Al elements can alternate the diameter and morphologies of the holes, resulting from the formation of oxides, carbides and intermetallic phase. The results indicate that SXTiAlC coating shows the most excellent oxidation resistance with 2.70 mg·cm^-2 in mass gain, while that are 88.08 mg·cm^-2 and 16.64 mg·cm^-2 after 100 h thermal exposure at 800°C for LX88A and SXHCrA coatings, respectively. The oxidation behavior is discussed.
