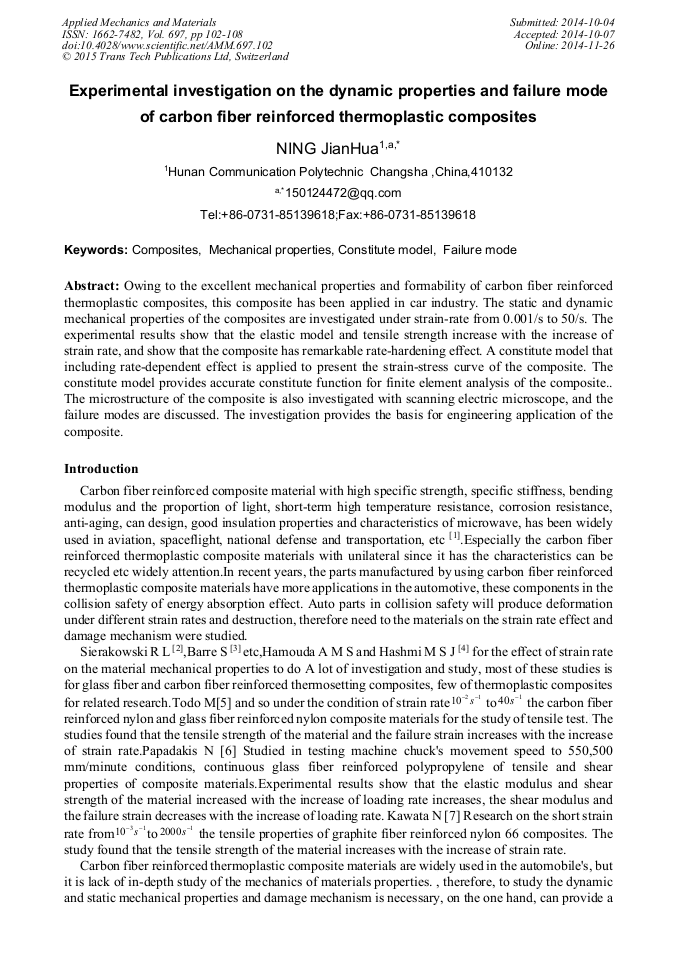

Experimental Investigation on the Dynamic Properties and Failure Mode of Carbon Fiber Reinforced Thermoplastic Composites

Abstract:

Owing to the excellent mechanical properties and formability of carbon fiber reinforced thermoplastic composites, this composite has been applied in car industry. The static and dynamic mechanical properties of the composites are investigated under strain-rate from 0.001/s to 50/s. The experimental results show that the elastic model and tensile strength increase with the increase of strain rate, and show that the composite has remarkable rate-hardening effect. A constitute model that including rate-dependent effect is applied to present the strain-stress curve of the composite. The constitute model provides accurate constitute function for finite element analysis of the composite.. The microstructure of the composite is also investigated with scanning electric microscope, and the failure modes are discussed. The investigation provides the basis for engineering application of the composite.

• Periodical: Applied Mechanics and Materials (Volume 697)
• Pages: 102-108
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.697.102
• Online since: November 2014
• Authors: Jian Hua Ning*
• Keywords: Composite, Constitute Model, Failure Mode, Mechanical Property

References

[1] DU ShanYi. Advanced composite materials and aerospace [J]. Journal of Composite Materials, 2007, 24 (1) : 1-11(In Chinese).

[2] Sierakowski R L. Strain rate effects in composites[C]. Appl Mech Rev 1997; 50(12/part 1): 741-761.

[3] Barre S, Chotard T, Benzeggagh M L. Comparative study of strain rate effects on mechanical properties of glass fiber-reinforced thermoset matrix composites[C]. Compos-Part A: Appl Sci Manuf 1996; 27(12): 1169-1181.

DOI: 10.1016/1359-835x(96)00075-9

[4] Hamouda A M S, Hashmi M S J. Testing of composite materials at high rates of strain: advances and challenges[C]. J Mater Process Technol 1998; 77(1-3): 327-336.

DOI: 10.1016/s0924-0136(97)00436-6

[5] Todo M, Takahashi K, Beguelin P, Kausch HH. Strain-rate dependence of the tensile fracture behaviour of woven-cloth reinforced polyamide composite[J]. Compos Sci Technol 2000; 60(5): 763-771.

DOI: 10.1016/s0266-3538(99)00184-0

[6] Papadakis N, Reynolds N, Pharaoh M, Wood P, Gordon S. Strain rate effects characterisation on the tensile properties of thermoplastic unidirectional composite laminates [C]. In: proceedings of the 10th European conference on composite materials (ECCM-10), Brugge, Belgium; 2002: 357-363.

[7] Papadakis N, Reynolds N, Pharaoh M, Wood P, Smith G. Strain rate effects on the shear mechanical properties of a highly oriented thermoplastic composite material using a contracting displacement measurement methodology-part a: elasticity and shear strength[C]. Compos Sci Technol 2004; 64(5): 729-738.

DOI: 10.1016/j.compscitech.2003.08.001

[8] Nandall D, William K and Reza V. Numerical simulation of the ballistic response of GRP plates [J]. Composites Science and Technology 58 (1998) 1463-1469.

DOI: 10.1016/s0266-3538(98)00030-x

[9] XU Shu Hua, WANG XiaoJun, ZHANG Gang Ming, et al. Dynamic compression mechanical properties of Kevlar fiber reinforced composite material experiment[J]. Experimental Mechanics, (16) : 2001: 26 -33, In Chinese.
