Processing and Characterization of Amorphous/Nanocrystalline Al_87.5Ni₄Sm_8.5 Particles Reinforced Crystalline Al Matrix Composites

Abstract:

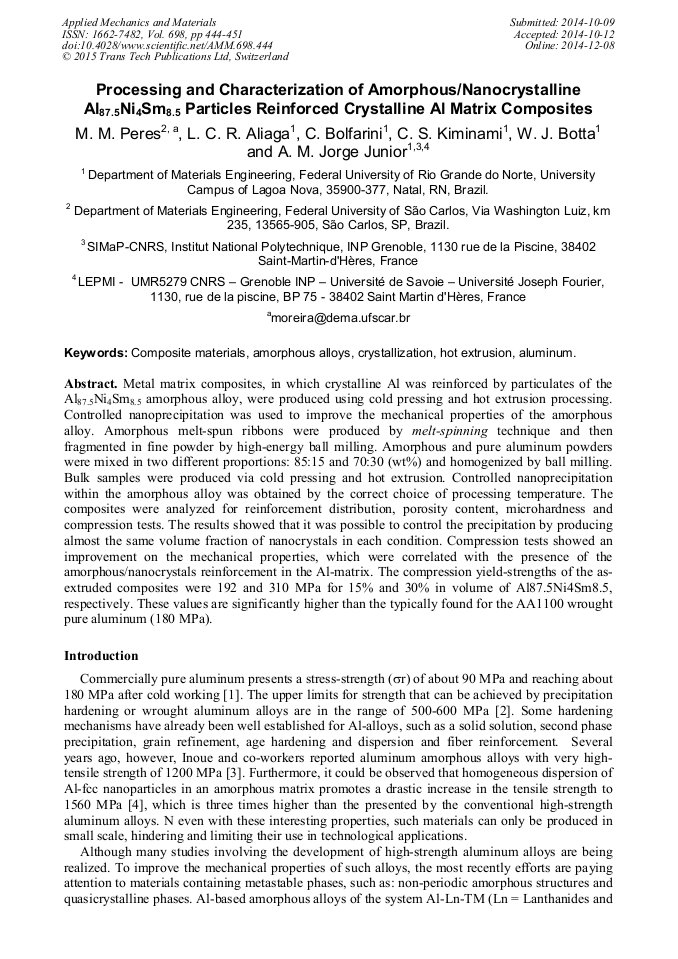

Metal matrix composites, in which crystalline Al was reinforced by particulates of the Al_87.5Ni₄Sm_8.5 amorphous alloy, were produced using cold pressing and hot extrusion processing. Controlled nanoprecipitation was used to improve the mechanical properties of the amorphous alloy. Amorphous melt-spun ribbons were produced by melt-spinning technique and then fragmented in fine powder by high-energy ball milling. Amorphous and pure aluminum powders were mixed in two different proportions: 85:15 and 70:30 (wt%) and homogenized by ball milling. Bulk samples were produced via cold pressing and hot extrusion. Controlled nanoprecipitation within the amorphous alloy was obtained by the correct choice of processing temperature. The composites were analyzed for reinforcement distribution, porosity content, microhardness and compression tests. The results showed that it was possible to control the precipitation by producing almost the same volume fraction of nanocrystals in each condition. Compression tests showed an improvement on the mechanical properties, which were correlated with the presence of the amorphous/nanocrystals reinforcement in the Al-matrix. The compression yield-strengths of the as-extruded composites were 192 and 310 MPa for 15% and 30% in volume of Al_87.5Ni₄Sm_8.5, respectively. These values are significantly higher than the typically found for the AA1100 wrought pure aluminum (180 MPa).

• Periodical: Applied Mechanics and Materials (Volume 698)
• Pages: 444-451
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.698.444
• Online since: December 2014
• Authors: Mauricio Mhirdaui Peres, Luis César R. Aliaga, Claudemiro Bolfarini, Claudio Shyinti Kiminami, Walter José Botta Filho, Alberto Moreira Jorge*
• Keywords: Aluminium, Amorphous Alloys, Composite Material, Crystallization, Hot Extrusion

References

[1] J.R. Davis, Aluminum and aluminum alloys, ASM international handbook committee, (1993).

[2] A. Inoue, H.M. Kimura, K. Kita, New horizons in quasicrystals, World scientific, Singapore, (1997).

[3] A. Inoue, K. Ohtera, A. -P. Tsai, T. Masumoto, New amorphous alloys with good ductility in Al-Y-M and Al-La-M (M=Fe, Co, Ni or Cu) systems, Jpn. J. Appl. Phys. 27 (1988) L280-L282.

DOI: 10.1143/jjap.27.l280

[4] Y. -H. Kim, A. Inoue, T. Masumoto, Ultrahigh tensile strengths of Al88Y2Ni9M1 (M=Mn or Fe) amorphous alloys containing finely dispersed fcc-Al particles, Mater. Trans. JIM. 31 (1990) 747-749.

DOI: 10.2320/matertrans1989.31.747

[5] A. Inoue, K. Ohtera, A. -P. Tsai, H. Kimura, T. Masumoto, Glass transition Behavior of Al-Y-Ni and Al-Ce-Ni Amorphous Alloys, Jpn. J. Appl. Phys. 27 (1988) L1579-L1582.

DOI: 10.1143/jjap.27.l1579

[6] Y. -H. Kim, A. Inoue, T. Masumoto, Ultrahigh mechanical strengths of Al88Y2Ni10-xMx (M=Mn, Fe or Co) amorphous alloys containing nanoscale fcc-Al particles, Mater. Trans. JIM. 32 (1991) 599-608.

DOI: 10.2320/matertrans1989.32.599

[7] A.M. Jorge Jr., M.M. Peres, J.B. Fogagnolo, C.S. Kiminami, C. Bolfarini, W.J. Botta, Hot extrusion of nanostructured Al-powder alloys: grain growth control and the effect of process parameters on their microstructure and mechanical properties, Metall. Mater. Trans. 40A (2009).

DOI: 10.1007/s11661-009-9984-0

[8] H. Kato, Y. Kawamura, A. Inoue, T. Masumoto, Bulk glassy Zr-based alloys prepared by consolidation of glassy alloy powders in supercooled liquid region, Mater. Sci. Eng., A. 226-228 (1997) 458-462.

DOI: 10.1016/s0921-5093(96)10664-x

[9] M. Tavoosi, F. Karimzadeh, M.H. Enayati, H.S. Kim, Consolidation of amorphous Al80Fe10Ti5Ni5 powders by hot pressing, J. Nanomater. 2012 (2012) 814915: 1-10.

DOI: 10.1155/2012/814915

[10] H.J. Kim, J.K. Lee, S.Y. Shin, H.G. Jeong, D.H. Kim, J.C. Bae, Cu-based bulk amorphous alloys prepared by consolidation of amorphous powders in the supercooled liquid region, Intermetallics. 12 (2004) 1109-1113.

DOI: 10.1016/j.intermet.2004.04.016

[11] J.Q. Wang, X.C. Chang, W.L. Hou, Z.Q. Hu, Crystallization behaviour of Al-based amorphous alloy and nanocomposites by rapid quenching, Phil. Mag. Lett. 80 (2000) 349-357.

DOI: 10.1080/095008300176128

[12] T. Gloriant, D.H. Ping, K. Hono, A.L. Greer, M.D. Baro, Nanostructured Al88Ni4Sm8 alloys investigated by transmission electron and field-ion microscopies, Mater. Sci. Eng., A. 304-306 (2001) 315-320.

DOI: 10.1016/s0921-5093(00)01523-9

[13] D.H. Kim, W.T. Kim, D.H. Kim, Formation and crystallization of Al–Ni–Ti amorphous alloys, Mater. Sci. Eng., A. 385 (2004) 44-53.

DOI: 10.1016/j.msea.2004.04.016

[14] K.L. Sahoo, V. Rao, A. Mitra, Crystallization kinetics in an amorphous Al-Ni-Mm-Fe alloy, Mater. T. JIM. 44 (2003) 1075-1080.

DOI: 10.2320/matertrans.44.1075

[15] R.D. Sa Lisboa, C.S. Kiminami, Primary crystallization in amorphous Al84Ni8Co4Y3Zr1 alloy, J. Non-Cryst. Solids. 304 (2002) 36-43.

DOI: 10.1016/s0022-3093(02)01001-3

[16] Z. Zhaog, D. Witkin, E.J. Lavernia, Crystallization behavior of a gas atomized Al85Ni10La5 amorphous alloy, J. Non-Cryst. Solids. 351 (2005) 1646-1652.

DOI: 10.1016/j.jnoncrysol.2005.04.055

[17] W. Voight, Über die Beziehung zwischen den beiden Elastizitätskonstanten isotroper Körper, Wied. Ann. 38 (1889) 573-587.

DOI: 10.1002/andp.18892741206

[18] R. Dasgupta, Aluminium alloy-based metal matrix composites: a potential material for wear resistant applications, ISRN Metallurgy. 2012 (2012) 594573: 1-14.

DOI: 10.5402/2012/594573

[19] S. Skolianos, Mechanical behavior of cast SiCp-reinforced Al-4. 5%Cu-1. 5%Mg alloy, Mater. Sci. Eng., A. 210 (1996) 76-82.

DOI: 10.1016/0921-5093(95)10043-1
