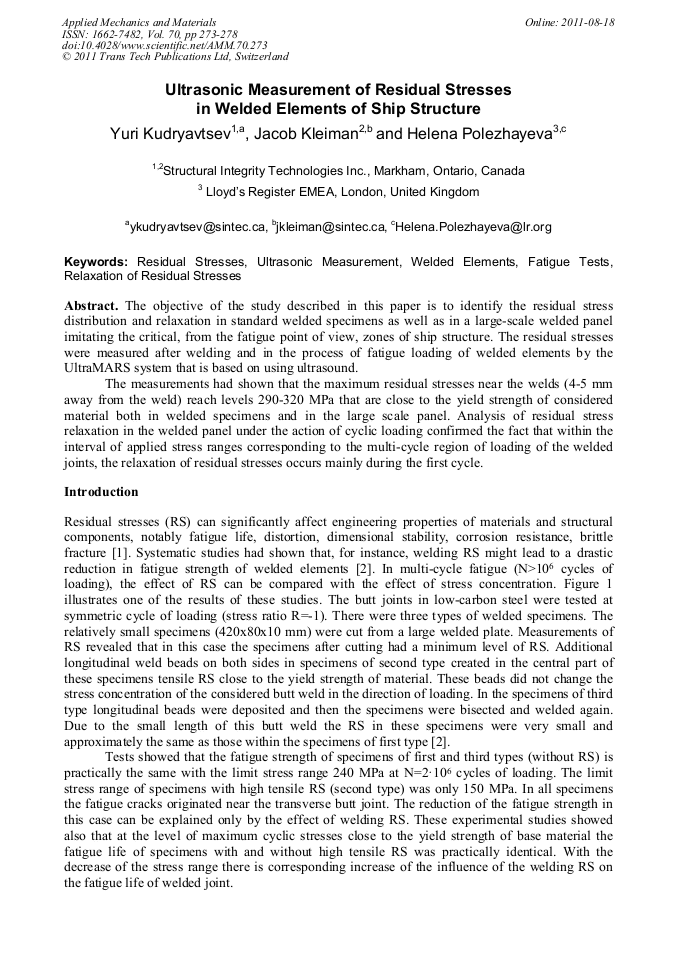

Ultrasonic Measurement of Residual Stresses in Welded Elements of Ship Structure

Abstract:

The objective of the study described in this paper is to identify the residual stress distribution and relaxation in standard welded specimens as well as in a large-scale welded panel imitating the critical, from the fatigue point of view, zones of ship structure. The residual stresses were measured after welding and in the process of fatigue loading of welded elements by the UltraMARS system that is based on using ultrasound. The measurements had shown that the maximum residual stresses near the welds (4-5 mm away from the weld) reach levels 290-320 MPa that are close to the yield strength of considered material both in welded specimens and in the large scale panel. Analysis of residual stress relaxation in the welded panel under the action of cyclic loading confirmed the fact that within the interval of applied stress ranges corresponding to the multi-cycle region of loading of the welded joints, the relaxation of residual stresses occurs mainly during the first cycle.

• Periodical: Applied Mechanics and Materials (Volume 70)
• Pages: 273-278
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.70.273
• Online since: August 2011
• Authors: Yuri Kudryavtsev, Jacob Kleiman, Helena Polezhayeva
• Keywords: Fatigue Test, Relaxation of Residual Stresses, Residual Stress, Ultrasonic Measurement, Welded Elements

References

[1] Handbook on Residual Stress. Volume 1. Edited by Jian Lu. Society for Experimental Mechanics. 2005. 417 p.

[2] V. Trufyakov, P. Mikheev and Y. Kudryavtsev. Fatigue Strength of Welded Structures. Residual Stresses and Improvement Treatments. Harwood Academic Publishers GmbH. London. 1995. 100 p.

[3] Y. Kudryavtsev and J. Kleiman. Fatigue Improvement of Welded Elements and Structures by Ultrasonic Impact Treatment (UIT/UP). International Institute of Welding. IIW Document XIII-2276-09. (2009).

[4] Y. Kudryavtsev. Residual Stress. Springer Handbook on Experimental Solid Mechanics. Springer – SEM. 2008. P. 371-387.

DOI: 10.1007/978-0-387-30877-7_15

[5] Y. Kudryavtsev and J. Kleiman. Residual Stress Management: Measurement, Fatigue Analysis and Beneficial Redistribution. X International Congress and Exposition on Experimental and Applied Mechanics. Costa Mesa, California USA, June 7-10, 2004. pp.1-8.

[7] Y. Kudryavtsev. Application of the ultrasonic method for residual stress measurement. Development of fracture toughness requirement for weld joints in steel structures for arctic service. VTT-MET. B-89. Espoo. Finland. 1985. pp.62-76.

[8] Y. Kudryavtsev, J. Kleiman and O. Gushcha. Ultrasonic Measurement of Residual Stresses in Welded Railway Bridge. Structural Materials Technology: An NDT Conference. Atlantic City. NJ. February 28-March 3, 2000. pp.213-218.

[9] Y. Kudryavtsev and J. Kleiman. Measurement of Residual Stresses in Welded Elements and Structures by Ultrasonic Method. International Institute of Welding. IIW Document XIII-2339-10. (2010).

[10] H. Polezhayeva, J. Kang, J. Lee, Y. Yang and Y. Kudryavtsev. A Study on Residual Stress Distribution and Relaxation in Welded Components. Proceedings of the 20th International Offshore and Polar Engineering Conference ISOPE-2010, June 20−26, 2010, Beijing, China.
