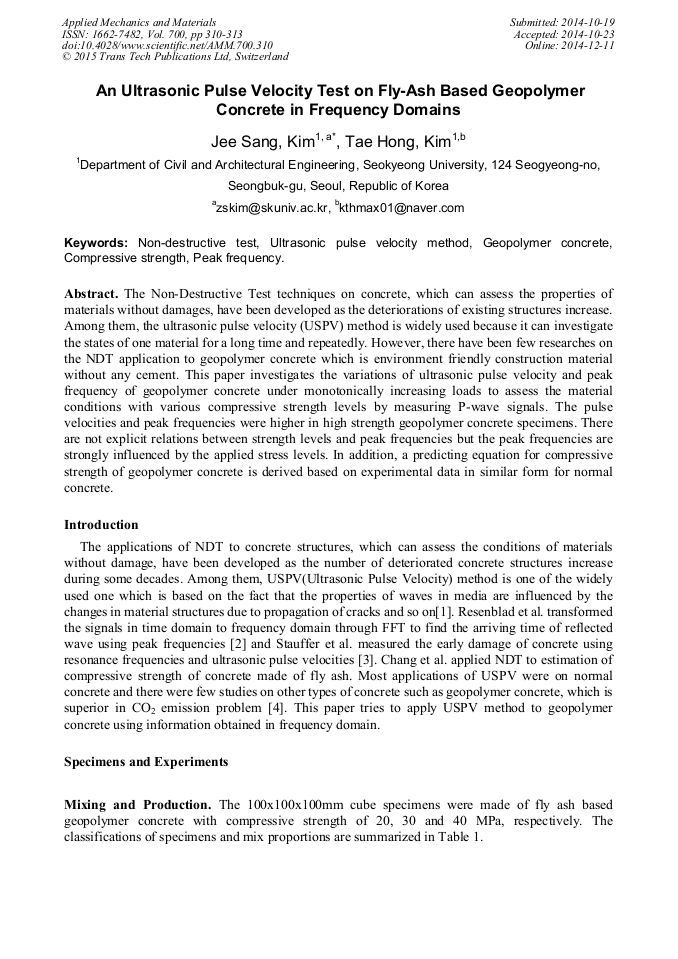

An Ultrasonic Pulse Velocity Test on Fly-Ash Based Geopolymer Concrete in Frequency Domains

Abstract:

The Non-Destructive Test techniques on concrete, which can assess the properties of materials without damages, have been developed as the deteriorations of existing structures increase. Among them, the ultrasonic pulse velocity (USPV) method is widely used because it can investigate the states of one material for a long time and repeatedly. However, there have been few researches on the NDT application to geopolymer concrete which is environment friendly construction material without any cement. This paper investigates the variations of ultrasonic pulse velocity and peak frequency of geopolymer concrete under monotonically increasing loads to assess the material conditions with various compressive strength levels by measuring P-wave signals. The pulse velocities and peak frequencies were higher in high strength geopolymer concrete specimens. There are not explicit relations between strength levels and peak frequencies but the peak frequencies are strongly influenced by the applied stress levels. In addition, a predicting equation for compressive strength of geopolymer concrete is derived based on experimental data in similar form for normal concrete.

You might also be interested in these eBooks

Advances in Energy Materials and Environment Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 700)

Pages:

310-313

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.700.310

Citation:

Cite this paper

Online since:

December 2014

Authors:

Jee Sang Kim*, Tae Hong Kim

Keywords:

Compressive Strength, Geopolymer Concrete, Non-Destructive Test, Peak Frequency, Ultrasonic Pulse Velocity Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wu, T.T. and Lin, T.F., The stress effect on the ultrasonic velocity variations of concrete under repeated loading, ACI Materials Journal, Vol. 95, No. 5, pp.519-524(1998).

DOI: 10.14359/394

Google Scholar

[2] Stauffer, J.D., Woodward, C.B. and white, K. R(2005) Nonlinear ultrasonic testing with resonant and pulse velocity parameters for early damaging concrete, ACI Materials Journal, Vol. 102, No. 2, pp.21-28.

DOI: 10.14359/14305

Google Scholar

[3] Chang, H.S. A Study on ultrasonic velocity and Rebound hardness Method for Structural Concrete with Mixed Fly Ash according to the Replacement Ratio of Recycled Aggregate, M. E. Thesis, Hanyang University, (2011), (in Korean).

Google Scholar

[4] Lee, J.H. Strength Characteristics of Geo-polymer Grout, Journal of the Korean GEO-Environmental Society 13(4), 2012. 4, 53-59 (in Korean).

Google Scholar
