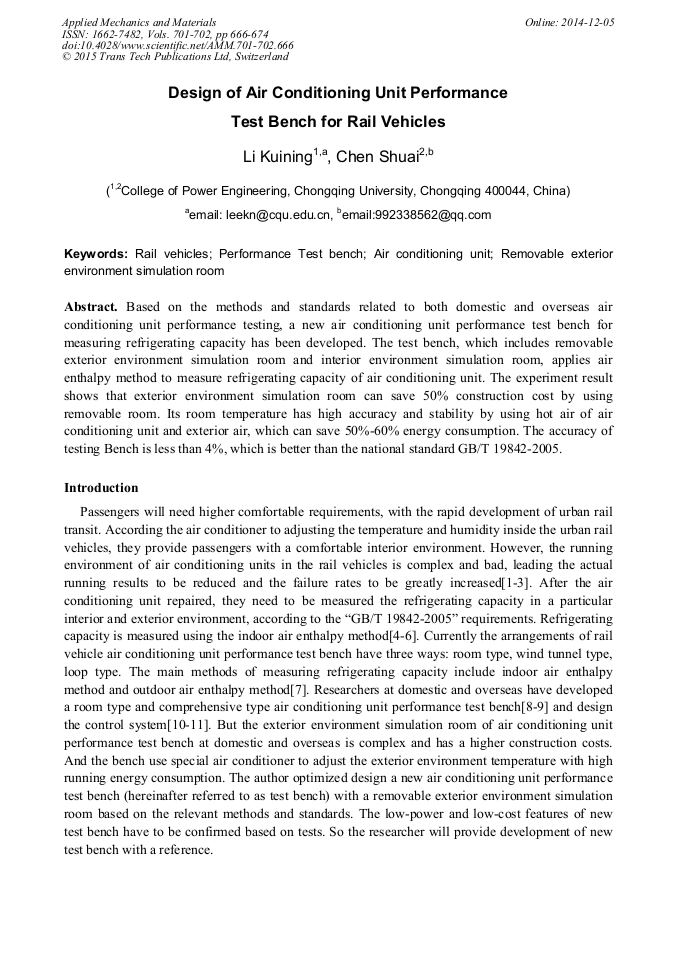

Design of Air Conditioning Unit Performance Test Bench for Rail Vehicles

Abstract:

Based on the methods and standards related to both domestic and overseas air conditioning unit performance testing, a new air conditioning unit performance test bench for measuring refrigerating capacity has been developed. The test bench, which includes removable exterior environment simulation room and interior environment simulation room, applies air enthalpy method to measure refrigerating capacity of air conditioning unit. The experiment result shows that exterior environment simulation room can save 50% construction cost by using removable room. Its room temperature has high accuracy and stability by using hot air of air conditioning unit and exterior air, which can save 50%-60% energy consumption. The accuracy of testing Bench is less than 4%, which is better than the national standard GB/T 19842-2005.

• Periodical: Applied Mechanics and Materials (Volumes 701-702)
• Pages: 666-674
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.701-702.666
• Online since: December 2014
• Authors: Kui Ning Li*, Shuai Chen
• Keywords: Air Conditioning Unit, Performance Test Bench, Rail Vehicles, Removable Exterior Environment Simulation Room

References

[1] Swanson, T.D. Light rail vehicles and running safety. Railroad Conference, 2002 ASME/IEEE Joint：17-27.

DOI: 10.1109/rrcon.2002.1000086

[2] Thomas, R.S. Phan, K.D. Traction electrification and NEC compliance：the Portland light rail experience. Railroad conference, 1999. Proceedings of the 1999 ASME/IEEE Joint：28-32.

DOI: 10.1109/rrcon.1999.762401

[3] Price,B. A, Smith T.F. Calibration and uncertainty analysis of temperature sensors. Sensor for Industry, 2001, Proceedings of the First ISA/IEEE Conference 5-7, 2001. 11: 286-289.

[4] China national standardization management committee. GB/T 19842-2005. Rail vehicle air conditioning unit test methods [S]. Beijing: China railway publishing house, 2005. (in chinese).

[5] China national standardization management committee. TB/T 1804-2009. Railway passenger car air conditioning unit [S]. Beijing: China railway publishing house, 2010. (in chinese).

[6] Jiang Mingliu, Mao Xiaochen , Yu Guorui. Research on evaluating the uncertainty of cooling capacity for air conditioners using air-enthalpy method[J]. Cryogenics and Superconductivity, 2011, 39(12): 36-40(in chinese).

[7] Zhou Wu, Ai Dayun. The Uncertainty Calculation and Analysis of Air Enthalpy Potential Method[J]. Value Engineering, 2010, 29(15): 212-213(in chinese).

[8] Li Qiliang, Zang Jianbing. Passenger-car air-conditioning unit test-bed design [J]. Refrigeration and Air Conditioning（Si Chuan）. 2006, 20(1): 77-80. (in chinese).

[9] Feng Weizhang, Li Zhengtao, Wu Zhiming. Study on all- weather environmental lab design [J]. Refrigeration and Air Conditioning（Bei Jing）. 2004, 4(3): 60-62. (in chinese).

[10] Chen Huanxin, Hu Yixiong, Xiang Xianhong. The research and produce of performance test device for passenger car air conditioning unit [J]. China Railway Science. 2001, 22(3): 107-111. (in chinese).

[11] Mora, J. A streetcar named light rail. Spectrum, IEEE, 1991. 2, 28(2)：54-56.

DOI: 10.1109/6.100913
