Lost Foam Casting of Hydroturbine Blades Based on CAE

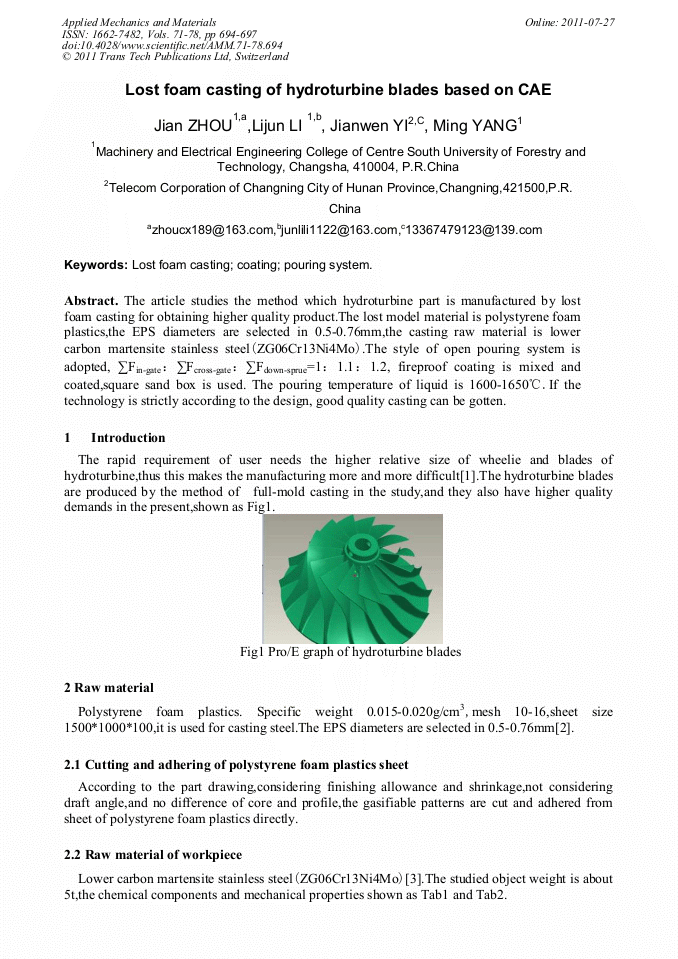

Abstract:

The article studies the method which hydroturbine part is manufactured by lost foam casting for obtaining higher quality product.The lost model material is polystyrene foam plastics,the EPS diameters are selected in 0.5-0.76mm,the casting raw material is lower carbon martensite stainless steel(ZG06Cr13Ni4Mo).The style of open pouring system is adopted, ∑F_in-gate：∑F_cross-gate：∑F_down-sprue=1：1.1：1.2, fireproof coating is mixed and coated,square sand box is used. The pouring temperature of liquid is 1600-1650°C.If the technology is strictly according to the design,good quality casting can be gotten.

• Periodical: Applied Mechanics and Materials (Volumes 71-78)
• Pages: 694-697
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.71-78.694
• Online since: July 2011
• Authors: Jian Zhou, Li Jun Li, Jian Wen Yi, Ming Yang
• Keywords: Coating, Lost Foam Casting (LFC), Pouring System

References

[1] KOLEV K, JADIN A , BENBAKOUR A S , et al.: Excimer laser-induced modification in MA/ Ni-acetylcetonate films for selective metallization. J. Applied Surface Science , 139, 434-438(1999).

DOI: 10.1016/s0169-4332(98)00437-1

[2] YAN Fen-yun, XU Guang-ji, HE Yuan, etc: Application of V-EPC (Vacuum Expendable Pattern Casting) Process to Vorticity Compressor Parts.J. Special Casting & Nonferrous Alloys, 25, 56-59(2005)(in Chinese).

[3] Wu Hebao Fan Zitian Huang Naiyu, etc: Mould filling of low-pressure expendable pattern casting process for magnesium alloys.J. Huazhong Univ. of Sci. &Tech. (Nature Science Edition) , 34, 19-21(2006) (in Chinese).

[4] ZHOU Jian , WEN Zong-yin , LI Xing-hua: Application of laser transformation hardening in surface strengthening of automotive die steel Cr12.J. Mold industry, 33, 67-70(2007) (in Chinese).

[5] ZHOU Jian, LI Xing-hua: The Invalidation Analysis of a Working 5CrMnMo Forging Die and Ways of Precaution.J. International Journal of Plant Engineering and Management, 11, 247-250(2006) (in Chinese).
