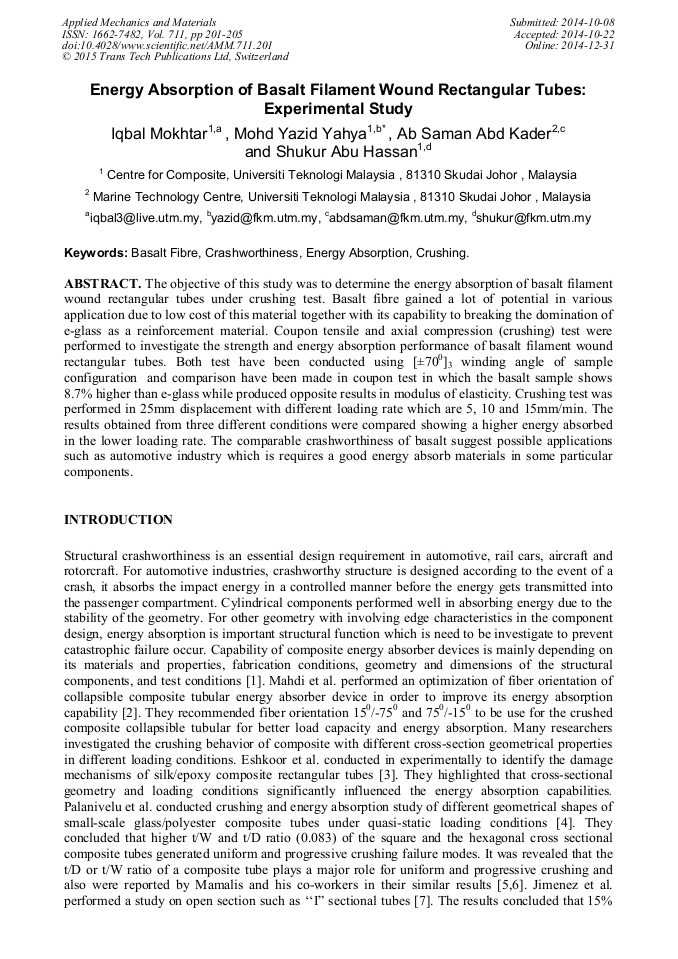

Energy Absorption of Basalt Filament Wound Rectangular Tubes: Experimental Study

Abstract:

The objective of this study was to determine the energy absorption of basalt filament wound rectangular tubes under crushing test. Basalt fibre gained a lot of potential in various application due to low cost of this material together with its capability to breaking the domination of e-glass as a reinforcement material. Coupon tensile and axial compression (crushing) test were performed to investigate the strength and energy absorption performance of basalt filament wound rectangular tubes. Both test have been conducted using [±70⁰]₃ winding angle of sample configuration and comparison have been made in coupon test in which the basalt sample shows 8.7% higher than e-glass while produced opposite results in modulus of elasticity. Crushing test was performed in 25mm displacement with different loading rate which are 5, 10 and 15mm/min. The results obtained from three different conditions were compared showing a higher energy absorbed in the lower loading rate. The comparable crashworthiness of basalt suggest possible applications such as automotive industry which is requires a good energy absorb materials in some particular components.

• Periodical: Applied Mechanics and Materials (Volume 711)
• Pages: 201-205
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.711.201
• Online since: December 2014
• Authors: Iqbal Mokhtar, Mohd Yazid Yahya*, Ab Saman Abd Kader, Shukur Abu Hassan
• Keywords: Basalt Fibre, Crashworthiness, Crushing, Energy Absorption

References

[1] Jacob, G. C., Fellers, J. F., Simunovic, S., & Starbuck, J. M. (2002). Energy absorption in polymer composites for automotive crashworthiness. Journal of composite materials, 36(7), 813-850.

DOI: 10.1177/0021998302036007164

[2] Mahdi, E., Hamouda, A. M. S., & Sebaey, T. A. (2014). The effect of fiber orientation on the energy absorption capability of axially crushed composite tubes. Materials & Design, 56, 923-928.

DOI: 10.1016/j.matdes.2013.12.009

[3] Eshkoor, R. A., Oshkovr, S. A., Sulong, A. B., Zulkifli, R., Ariffin, A. K., & Azhari, C. H. (2013). Comparative research on the crashworthiness characteristics of woven natural silk/epoxy composite tubes. Materials & Design, 47, 248-257.

DOI: 10.1016/j.matdes.2012.11.030

[4] Palanivelu, S., Paepegem, W. V., Degrieck, J., Vantomme, J., Kakogiannis, D., Ackeren, J. V., & Wastiels, J. (2011).

DOI: 10.1533/9781845697754.111

[5] Mamalis, A. G., Manolakos, D. E., Ioannidis, M. B., & Papapostolou, D. P. (2005).

[6] Mamalis, A. G., Manolakos, D. E., Ioannidis, M. B., & Papapostolou, D. P. (2004). Crashworthy characteristics of axially statically compressed thin-walled square CFRP composite tubes: experimental. Composite Structures, 63(3), 347-360.

DOI: 10.1016/s0263-8223(03)00183-1

[7] Jimenez, M. A., Miravete, A., Larrode, E., & Revuelta, D. (2000). Effect of trigger geometry on energy absorption in composite profiles. Composite Structures, 48(1), 107-111.

DOI: 10.1016/s0263-8223(99)00081-1

[8] Solaimurugan, S., & Velmurugan, R. (2007). Progressive crushing of stitched glass/polyester composite cylindrical shells. Composites Science and Technology, 67(3), 422-437.

DOI: 10.1016/j.compscitech.2006.09.002

[9] Hull, D. (1991). A unified approach to progressive crushing of fibre-reinforced composite tubes. Composites Science and Technology, 40(4), 377-421.

DOI: 10.1016/0266-3538(91)90031-j

[10] Mamalis, A. G., Manolakos, D. E., Ioannidis, M. B., & Papapostolou, D. P. (2005). On the experimental investigation of crash energy absorption in laminate splaying collapse mode of FRP tubular components. Composite structures, 70(4), 413-429.

DOI: 10.1016/j.compstruct.2004.09.002
