Microscopic Investigation of Geopolymers Made of Fused Slag from Gasification Processes Using Low-Grade Coal and Spent Catalyst Slag

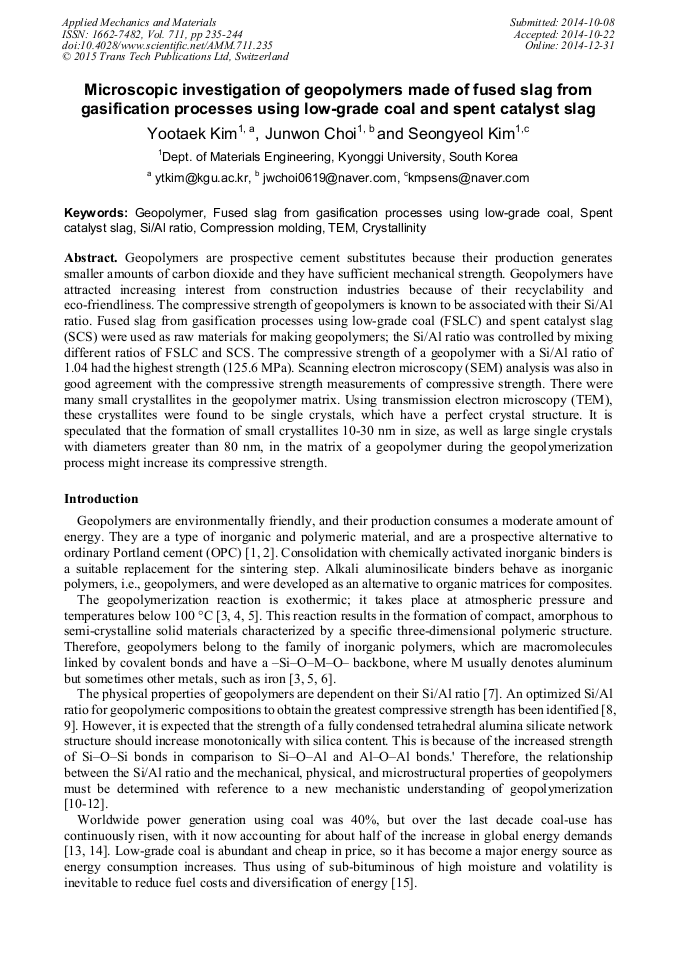

Article Preview

Abstract:

Geopolymers are prospective cement substitutes because their production generates smaller amounts of carbon dioxide and they have sufficient mechanical strength. Geopolymers have attracted increasing interest from construction industries because of their recyclability and eco-friendliness. The compressive strength of geopolymers is known to be associated with their Si/Al ratio. Fused slag from gasification processes using low-grade coal (FSLC) and spent catalyst slag (SCS) were used as raw materials for making geopolymers; the Si/Al ratio was controlled by mixing different ratios of FSLC and SCS. The compressive strength of a geopolymer with a Si/Al ratio of 1.04 had the highest strength (125.6 MPa). Scanning electron microscopy (SEM) analysis was also in good agreement with the compressive strength measurements of compressive strength. There were many small crystallites in the geopolymer matrix. Using transmission electron microscopy (TEM), these crystallites were found to be single crystals, which have a perfect crystal structure. It is speculated that the formation of small crystallites 10-30 nm in size, as well as large single crystals with diameters greater than 80 nm, in the matrix of a geopolymer during the geopolymerization process might increase its compressive strength.

You might also be interested in these eBooks

Mechanical Engineering, Materials Science and Civil Engineering III

Info:

Periodical:

Applied Mechanics and Materials (Volume 711)

Pages:

235-244

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.711.235

Citation:

Cite this paper

Online since:

December 2014

Authors:

Yoo Taek Kim*, Jun Won Choi, Seong Yeol Kim

Keywords:

Compression Molding, Crystallinity, Fused Slag from Gasification Processes Using Low-Grade Coal, Geopolymer, Si/Al Ratio, Spent Catalyst Slag, TEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J. He, J.H. Zhang, Y.H. Yu, and G.P. Zhang: Constr. Build. Mater. Vol 30 (2012), p.80.

[2] G. Habet, J.B. d'Espinose de Lacaillerie, and N. Roussel: Journal of Cleaner Production Vol 19-11 (2011), p.1229.

[3] J. Davidovits, in: '99 Geopolymer International Conference Proceedings, edited by J. Davidovits, Geopolymer Institute, Saint Qunentin, FR (1999).

[4] J.G.S. Van Deventer, J.S.J. Van Deventer, and G.C. Lukey: Chem. Eng. J. Vol 89 (2002), p.63.

[5] K. Sakkas, D. Panias, P.P. Nomikos, and A.I. Sofianos: Tunn. Under Sp. Tech. Vol 43 (2014), p.148.

[6] J. Davidovits, in: Geopolymer '88, editied by J. Davidovits, J. Orlinsky, The institute, Compiegne, FR (1988).

[7] A. Buchwald, H. -D. Zellmann, and Ch. Kaps: J. Non-Cryst. Solids Vol 357 (2011), p.1376.

[8] R.A. Fletchera, K.J.D. MacKenziea, C.L. Nicholsona, and S. Shimadac: J. Eur. Ceram. Soc. Vol 25 (2005), p.1471.

[9] P. Duxson, S.W. Mallicoat, G.C. Lukey, W.M. Kriven, and J.S.J. van Deventer: Colloid. Surface. A. Vol 292 (2007), p.8.

[10] P. Duxson, J.L. Provis, G.C. Lukey, S.W. Mallicoat, W.M. Kriven, and J.S.J. van Deventera: Colloid. Surface. A. Vol 269 (2005), p.47.

[11] A. Buchwald, H. -D. Zellmann, and Ch. Kaps: J. Non-Criyst. Solids Vol 357-5 (2011), p.1376.

[12] B.H.W.S. de Jong and G.E. Brown: Geochim. Cosmochim. Ac. Vol 44-3 (1980), p.491.

[13] EIA, in: Annual Energy Outlook 2011, U.S. Energy Information Administration, Washington, DC (2011).

[14] C. Herce, B. de Caprariis, S. Stendardo, N. Verdone, and P.D. Filippis: J. Therm. Anal. Calorim. Vol 117 (2014), p.507.

DOI: 10.1007/s10973-014-3648-z

[15] K.T. Kang, J.H. Song, M.J. Yoon, B.H. Lee, and S.M. Kim: The Korean Society of Mechanical Engineers Vol 33-11(2009), p.858.

[16] N. Hashimoto and H. Shirai: Energy Vol 71 (2014), p.399.

[17] EIA, in: Annual Energy Outlook 2012, U.S. Energy Information Administration, Washington, DC (2012).

[18] C. Ferone, F. Colangelo, F. Messina, L. Santoro, and R. Cioffi: Materials Vol 6-8 (2013), p.3420.

[19] X. Guoa, W. Hub, and H. Shia: Constr. Build. Mater. Vol 56-15 (2014), p.81.

[20] J.G.S. van Jaarsveld, J.S.J. van Deventer, and G.C. Lukey: Mater. Lett. Vol 57 (2003), p.1272.

[21] P. Chindaprasirta and U. Rattanasakb: Waste Manage. Vol 30 (2010), p.667.

[22] S.G. Son, J.H. Lee, J.M. Lee and Y.D. Kim: J. Korean Ceram. Soc. Vol 45-5 (2008), p.303.
