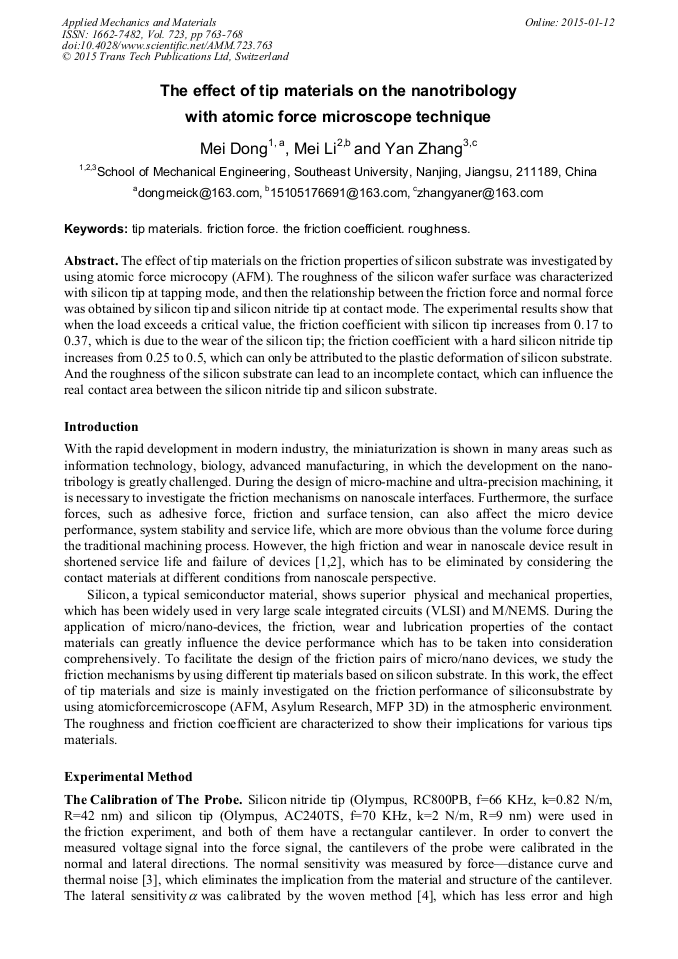

The Effect of Tip Materials on the Nanotribology with Atomic Force Microscope Technique

Abstract:

The effect of tip materials on the friction properties of silicon substrate was investigated by using atomic force microcopy (AFM). The roughness of the silicon wafer surface was characterized with silicon tip at tapping mode, and then the relationship between the friction force and normal force was obtained by silicon tip and silicon nitride tip at contact mode. The experimental results show that when the load exceeds a critical value, the friction coefficient with silicon tip increases from 0.17 to 0.37, which is due to the wear of the silicon tip; the friction coefficient with a hard silicon nitride tip increases from 0.25 to 0.5, which can only be attributed to the plastic deformation of silicon substrate. And the roughness of the silicon substrate can lead to an incomplete contact, which can influence the real contact area between the silicon nitride tip and silicon substrate.

• Periodical: Applied Mechanics and Materials (Volume 723)
• Pages: 763-768
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.723.763
• Online since: January 2015
• Authors: Mei Dong, Mei Li, Yan Zhang
• Keywords: Friction Coefficient (FC), Friction Force, Roughness, Tip Materials

References

[1] B. Bhushan: Microelectron. Eng Vol. 84 (1987), p.387.

[2] E. E. Flater, A. D. Corwin, M. P. de Boer and R. W. Carpick: Wear Vol. 260 (2006), p.580.

[3] J. L Hutter and J. Bechhoefer: Review of Scientific Instruments Vol. 64 (1993) , p.1868.

[4] D. F. Ogletree, R. W. Carpick and M. Salmeron: Review of Scientific Tnstruments Vol. 67 (1996), p.3298.

[5] M. Dienwiebel, N. Pradeep, G. S. Verhoeven, H. W. Zandbergen and W.M. Frenken: Surf. Eng Vol. 576 (2005), p.197.

[6] E. S. Yoon, R. A. Singh, Oh H Jin and H. Kong: Wear Vol. 259 (2005), p.1424.

[7] B. Bhushan and S. Sundararajan: Acta Materialia Vol. 46 (1998), p.3793.

[8] M. Binggeli and C. M. Mate: Appl. Phys. Lett Vol. 65 (1994), p.415.

[9] R. Legtenberg, H. A. C. Tilmans and J. Elders: Sens. Actuators, A Vol. 43 (1994), p.230.

[10] A. D. Corwin and M. P. de Boer: Appl. Phys. Lett Vol. 84 (2004), p.2451.

[11] J . Gao, W. D. Luedtke, D. Gourdon, M. Ruths, J. N. Israelachvili and U. Landman: J. Phys. Chem. B Vol. 108 (2004), p.3410.

[12] B. Bhushan and A. V. Kulkarni: Appl. Phys. Lett Vol. 64 (1994), p.1653.

[13] E. S. Yoon, R. A. Singh, Oh H Jin and H. Kong: Wear Vol. 259 (2005), p.1424.

[14] B. Bhushan and A. V. Kulkarni: Thin Solid Films Vol. 278 (1996), p.49.

[15] D. Maugis: Colloid and Interface Science Vol. 150 (1992), p.243.
