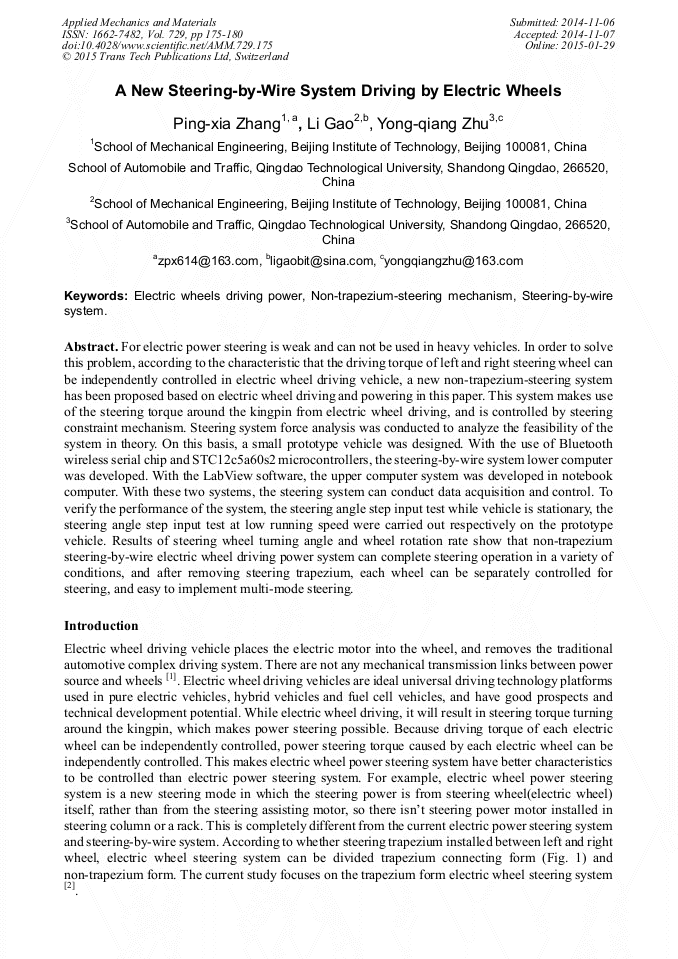

A New Steering-by-Wire System Driving by Electric Wheels

Abstract:

For electric power steering is weak and can not be used in heavy vehicles. In order to solve this problem, according to the characteristic that the driving torque of left and right steering wheel can be independently controlled in electric wheel driving vehicle, a new non-trapezium-steering system has been proposed based on electric wheel driving and powering in this paper. This system makes use of the steering torque around the kingpin from electric wheel driving, and is controlled by steering constraint mechanism. Steering system force analysis was conducted to analyze the feasibility of the system in theory. On this basis, a small prototype vehicle was designed. With the use of Bluetooth wireless serial chip and STC12c5a60s2 microcontrollers, the steering-by-wire system lower computer was developed. With the LabView software, the upper computer system was developed in notebook computer. With these two systems, the steering system can conduct data acquisition and control. To verify the performance of the system, the steering angle step input test while vehicle is stationary, the steering angle step input test at low running speed were carried out respectively on the prototype vehicle. Results of steering wheel turning angle and wheel rotation rate show that non-trapezium steering-by-wire electric wheel driving power system can complete steering operation in a variety of conditions, and after removing steering trapezium, each wheel can be separately controlled for steering, and easy to implement multi-mode steering.

• Periodical: Applied Mechanics and Materials (Volume 729)
• Pages: 175-180
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.729.175
• Online since: January 2015
• Authors: Ping Xia Zhang*, Li Gao, Yong Qiang Zhu
• Keywords: Electric Wheels Driving Power, Non-Trapezium-Steering Mechanism, Steer-by-Wire System

References

[1] Zhou Shu-hui, Li You-De, Li Jing, Lin Xin-chun, Li Chun-feng: Auto Electric Parts, 2006, (11): 1-5(In Chinese).

[2] Zhu Yong-qiang, Chen Quan-shi, Zhang Ping-xia. The Research of Stability Performance of Five-axle Whole Wheel Steering Vehicles With Electric Wheel Basing on Direct Yaw Control System[C]. The International Conference on Consumer Electronics, Communications and Networks (CECNet 2012) , vol 1, April 21, 2012, 705-708.

DOI: 10.1109/cecnet.2012.6202227

[3] SALAANI M K, HEYDINGER G J, GRYGIER P A. Experimental steering feel performance measure[R]. SAE 2004-01-1074, (2004).

DOI: 10.4271/2004-01-1074

[4] Junnian Wang, Qingnian Wang and Liqiang Jin．Modeling and Simulation Studies on Differential Drive Assisted Steering for EV with Four-Wheel Independent-Drive [C]．IEEE Vehicle Power and Propulsion Conference (VPPC), September 3-5, 2008, Harbin, China.

DOI: 10.1109/vppc.2008.4677428

[5] Jin Liqiang, Song Chuanxue, Peng Yanhong: Transactions of the Chinese Society for Agricultural Machinery, 2006, 37(11): 20-23. (In Chinese).

[6] Hu Changjian. Study of PS by Driving Force for Electric Motorized Vehicle [D]. Changchun: Jilin University , 2008: 17 -74(In Chinese).

[7] Wang Junnian. Study on Differential Drive Assist Steering Technology for Electric Vehicle with Independent-Motorized-Wheel-Drive [D]. Changchun: Jilin University , 2009: 22-145(In Chinese).

DOI: 10.1109/vppc.2009.5289799

[8] Li Yinzhuo. Driving-power Steering Theory and VDC Research of Motorized Wheels Driving Vehicle [D]. Changchun: Jilin University , 2007: 15-58(In Chinese).

[9] Wang Qing-nian, Wang Jun-nian, Jin Li-qiang, Hu Chang-jian, Zhang Xiang-zhong: Journal of Jilin University (Engineering and Technology Edition), 2009, 39(1): 1-6(In Chinese).

[10] Jin Liqiang, Wang Junnian, Song Chuanxue, Hu Changjian: Journal of Mechanical Engineering, 2010, 46(14): 101-108.

[11] Jin Li-qiang, Wang Jun-nian, Song Chuan-xue. Simulation of Driving Force Power Steering Control System Based on AMESim and Simulink [C]. 2010 International Conference on Intelligent Computation Technology and Automation, 2010: 329-332.

DOI: 10.1109/icicta.2010.197

[12] Qingnian Wang, Junnian Wang, Liqiang Jin. Driver-Vehicle Closed-Loop Simulation of Differential Drive Assist Steering Control System for Motorized-Wheel Electric Vehicle [C]. 2009 IEEE, 2009: 564-571.

DOI: 10.1109/vppc.2009.5289799

[13] Wang Chunyan, Zhaowan Zhong, Zhao Ting, Zhou Xie: China Mechanical Engineering, 2012, 23 (1): 122-125(In Chinese).

[14] Zhao Wanzhong, Wang Chunyan, Sun Peikun, Liu Shun: Science China Press, 2012, 42 (2) : 188-194(In Chinese).

[15] Zhu Yongqiang. the Research of All Wheel Steering and Wheels Drive Control of Multi-Axle Vehicle Basing on Electric Wheels [D]. Beijing: Tsinghua University , 2011: 1-7(In Chinese).
