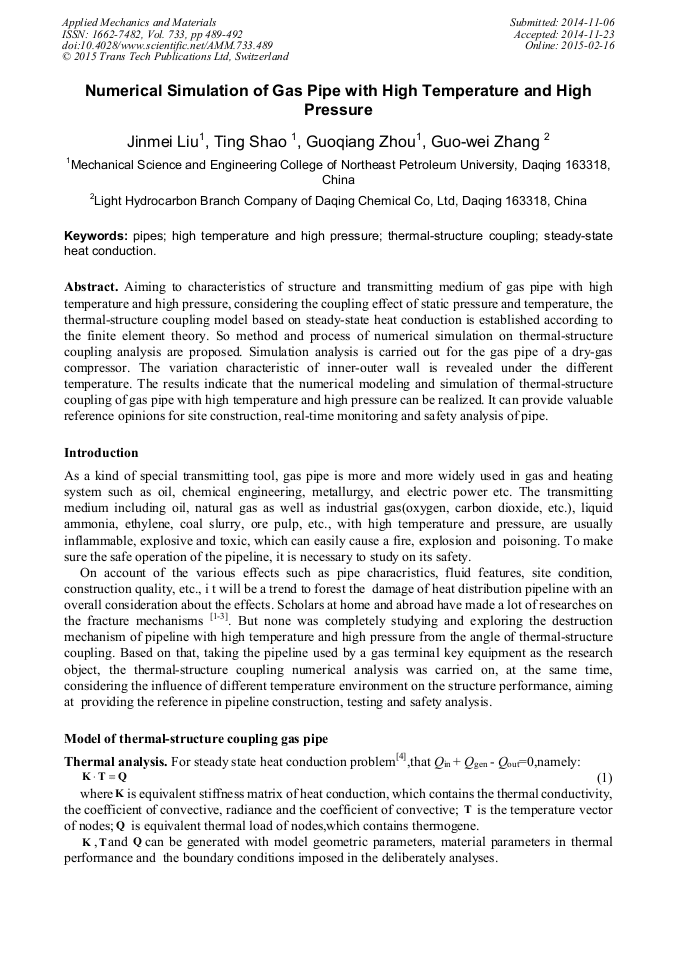

Numerical Simulation of Gas Pipe with High Temperature and High Pressure

Abstract:

Aiming to characteristics of structure and transmitting medium of gas pipe with high temperature and high pressure, considering the coupling effect of static pressure and temperature, the thermal structure coupling model based on steady-state heat conduction is established according to the finite element theory. So method and process of numerical simulation on thermal structure coupling analysis are proposed. Simulation analysis is carried out for the gas pipe of a dry-gas compressor. The variation characteristic of inner-outer wall is revealed under the different temperature. The results indicate that the numerical modeling and simulation of thermal structure coupling of gas pipe with high temperature and high pressure can be realized. It can provide valuable reference opinions for site construction, real-time monitoring and safety analysis of pipe.

• Periodical: Applied Mechanics and Materials (Volume 733)
• Pages: 489-492
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.733.489
• Online since: February 2015
• Authors: Jin Mei Liu, Ting Shao, Guo Qiang Zhou, Guo Wei Zhang
• Keywords: High Pressure, High Temperature, Pipes, Steady-State Heat Conduction, Thermal Structure Coupling

References

[1] Bikbulatov I Kh, Scbolev AV, Shulaev N s. New Technology for Pipeline Protection, Leakages Detection and Collection [J]. Journal of Fushun Petroleum Institute, 2000, 20(3):P. 59-64.

[2] Chen Yanfei, Li Xin, Zhou Jing. Ultimate Bending Capacity of Pipe with Arbitrary Corrosion Defects [J]. Engineering Mechanics. 2009, 26(11): P. 190-196. (In Chinese).

[3] Yan Limei, Zhu Yusong, Xu Jianjun, et. al. Transmission Lines Modeling Method Based on Fractional Order Calculus Theory [J]. TRANSACTIONS OF CHINA ELECTROTECHNICAL SOCIETY, 2014, Vol. 29, No. 9:P. 260-268 (in Chinese).

[4] Sun Zongmeng, Zhou Jiayong, Liu Xunzhi. Coupled Thermomechnical Analysis of a Boiler Water Wall [J]. Technology and Market. 2010, 17(11):P. 1-3, 5. (In Chinese).

[5] Liu Donghuan, Zheng Xiaoping, Wang Fei, etal. Mechanism of Thermomechanical Coupling of High Temperature Heat Pipe Cooled C/C Composite Material Thermal Protection Structure [J]. Acta Materiae Compositae Sinica. 2010, 27(3):P. 43-49. (In Chinese).

[6] Zhang Guowei, Zhou Guoqiang, Liu Jinmei. Stress Analysis Based on Heat-structure coupling for Export Pipeline of Dry Gas Compressors [J]. Fluid Machinery. 2011, 39(12): P. 43-46, 17.
