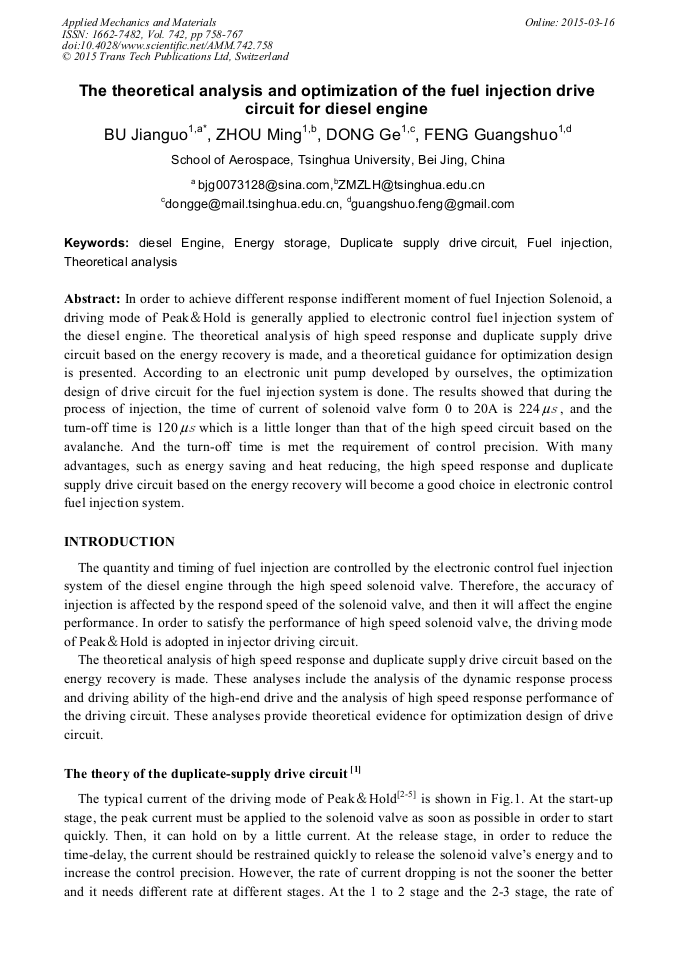

The Theoretical Analysis and Optimization of the Fuel Injection Drive Circuit for Diesel Engine

Abstract:

In order to achieve different response indifferent moment of fuel Injection Solenoid, a driving mode of Peak&Hold is generally applied to electronic control fuel injection system of the diesel engine. The theoretical analysis of high speed response and duplicate supply drive circuit based on the energy recovery is made, and a theoretical guidance for optimization design is presented. According to an electronic unit pump developed by ourselves, the optimization design of drive circuit for the fuel injection system is done. The results showed that during the process of injection, the time of current of solenoid valve form 0 to 20A is 224, and the turn-off time is 120which is a little longer than that of the high speed circuit based on the avalanche. And the turn-off time is met the requirement of control precision. With many advantages, such as energy saving and heat reducing, the high speed response and duplicate supply drive circuit based on the energy recovery will become a good choice in electronic control fuel injection system.

• Periodical: Applied Mechanics and Materials (Volume 742)
• Pages: 758-767
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.742.758
• Online since: March 2015
• Authors: Jian Guo Bu, Ming Zhou, Ge Dong, Guang Shuo Feng
• Keywords: Diesel Engine, Duplicate Supply Drive Circuit, Energy Storage, Fuel Injection, Theoretical Analysis

References

[1] Infineon Technologies A G. Peak & Hold current Shape generated by Tri Core derivative T C1775 [ EB/OL] . ( 2002-09). Available from: http: /www. infineon. com.

[2] ZHANGKexun, HONG Munan, ZHOU Ming. Design and Analysis of Integrated Boost Driver Circuitfor Diesel Engine Solenoid Valve .J. Journal of Shanghai Jiao tong university 2008; 42(8): 1367-1371[in Chinese].

[3] ZHANGKexun, LI Jianqiu, LI Jin. Optimization of injection solenoid valve drive logic for anelectronic diesel engine .J. Tsinghua Univ(Sci&Tech) 2004; 44(8): 1142-1145[in Chinese].

[4] LI Ye. A Study of Electronic Control Unit and Development System for Diesel Common Rail System. M.S. thesis, Tianjin University; 2007[in Chinese].

[5] SONG Jun, Li Shuze, Li Xiaolu. Design and Experimental Analysis of Drive Circuit for High-speed Solenoid Valve .J. Automotive Engineering 2005; 27(5): 546-549[in Chinese].

[6] ZHANG Qi, ZHANG Kexun, LI Jianqiu. Optimization Design of Solenoid Drive Circuit for Electronically Controlled Diesel Engine .J. Internal combustion engine engineering 2005; 26(2): 1-4[in Chinese].

[7] JIAQimin, ZHENG Yongling, CHEN Jiyao. Electromagnetism 2nded Beijing: Higher education press, 2006; 203-328[in Chinese].

[8] SONG Jun, HUANG Jianping, LI Xiaolu. Simulative Analysis for Drive Properties ofHigh2Speed Solenoid Valve in Diesel Engines .J. VEHICLE ENGINE 2005; 159(5): 48-51[in Chinese].

[9] LI Jianqiu, WANG Jinli, SONG Ziyou. Energy charging and discharging process and the drive circuits design of automotive EC actuators .J. Automotive Safety and Energy 2013; 4(1): 41-47[in Chinese].

[10] GUO Shuman, SU Wanhua, LIU Erxi. Optimization Design of Common-rail Injector Driving CircuitBased on Bootstrap Circuit .J. Journal of agricultural machinery 2012; 43(5): 11-15[in Chinese].
