Characteristics of Fe-Si-B-Cr-C Powders Synthesized by the Spinning Water Atomization Process (SWAP) and its Application in Magnetic Core

Abstract:

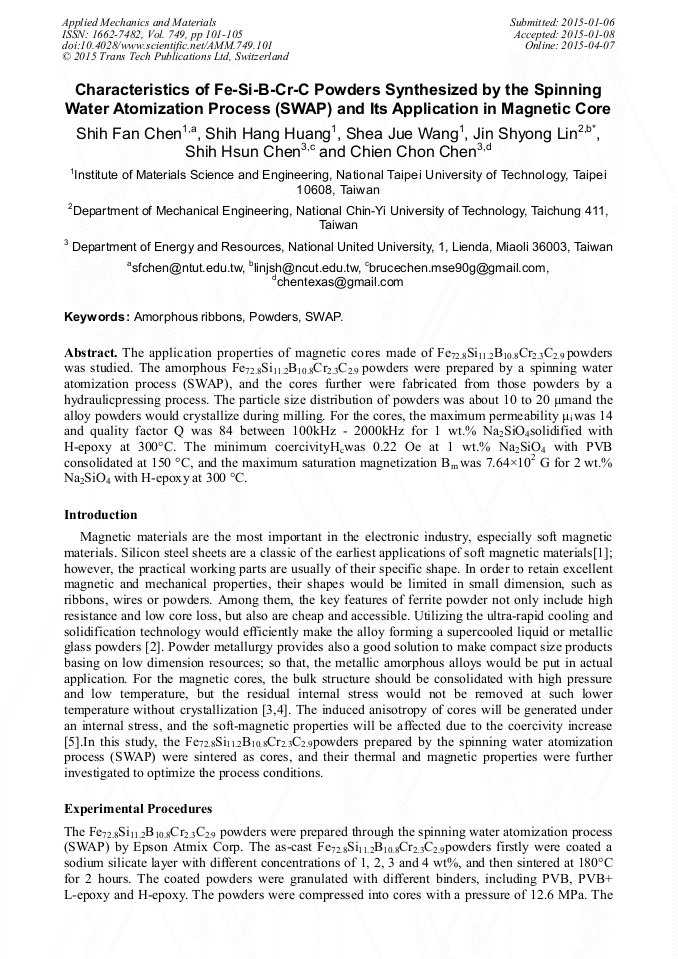

Article Preview

The application properties of magnetic cores made of Fe72.8Si11.2B10.8Cr2.3C2.9 powders was studied. The amorphous Fe72.8Si11.2B10.8Cr2.3C2.9 powders were prepared by a spinning water atomization process (SWAP), and the cores further were fabricated from those powders by a hydraulicpressing process. The particle size distribution of powders was about 10 to 20 μmand the alloy powders would crystallize during milling. For the cores, the maximum permeability μi was 14 and quality factor Q was 84 between 100kHz - 2000kHz for 1 wt.% Na2SiO4solidified with H-epoxy at 300°C. The minimum coercivityHcwas 0.22 Oe at 1 wt.% Na2SiO4 with PVB consolidated at 150 °C, and the maximum saturation magnetization Bm was 7.64×102 G for 2 wt.% Na2SiO4 with H-epoxy at 300 °C.

Info:

Periodical:

Edited by:

Anil K. Bhatnagar

Pages:

101-105

Citation:

S. F. Chen et al., "Characteristics of Fe-Si-B-Cr-C Powders Synthesized by the Spinning Water Atomization Process (SWAP) and its Application in Magnetic Core", Applied Mechanics and Materials, Vol. 749, pp. 101-105, 2015

Online since:

April 2015

Export:

Price:

$41.00

* - Corresponding Author

[1] A. Inoue, Bulk amorphous and nanocrystalline alloys with high functional properties, Mater. Sci. Eng. A 304 (2001) 1-10.

[2] A. Inoue, A.T., Recent development and application products of bulk glassy alloys, Acta Materialia 59 (2011) 2243-2267.

DOI: https://doi.org/10.1016/j.actamat.2010.11.027

[3] S. Yoshida, T.M., T. Hatanai, A. Inoue, Preparation of new amorphous powder cores using Fe-based glassy alloy, IEEE Transactions on Magnetics36(5)(2000) 3424-3429.

DOI: https://doi.org/10.1109/20.908848

[4] A. Inoue, M. Koshiba, T. Itoi, A. Makino, Ferromagnetic Co-Fe-Zr-B amorphous alloys with glass transition and good high-frequency permeability, Appl. Phys. Lett. 73 (1998) 744-746.

DOI: https://doi.org/10.1063/1.121987

[5] M. Hagiwara, A. Inoue, T. Masumoto, Mechanical properties of Fe-Si-B amorphous wires produced by in-rotating-water spinning method, Metall. Mater. Trans. A, 13 (1982) 373-382.

DOI: https://doi.org/10.1007/bf02643346

[6] Lin, Y. -h., Preparation and magnetic properties of Fe3O4-SiO2 core-shell nanoparticles, in Department of Physics, Master Thesis , Tunghai University, Taiwan, (2004).
