New Polymer Assembles with Potential Use as Solid Electrolytes Type Membranes

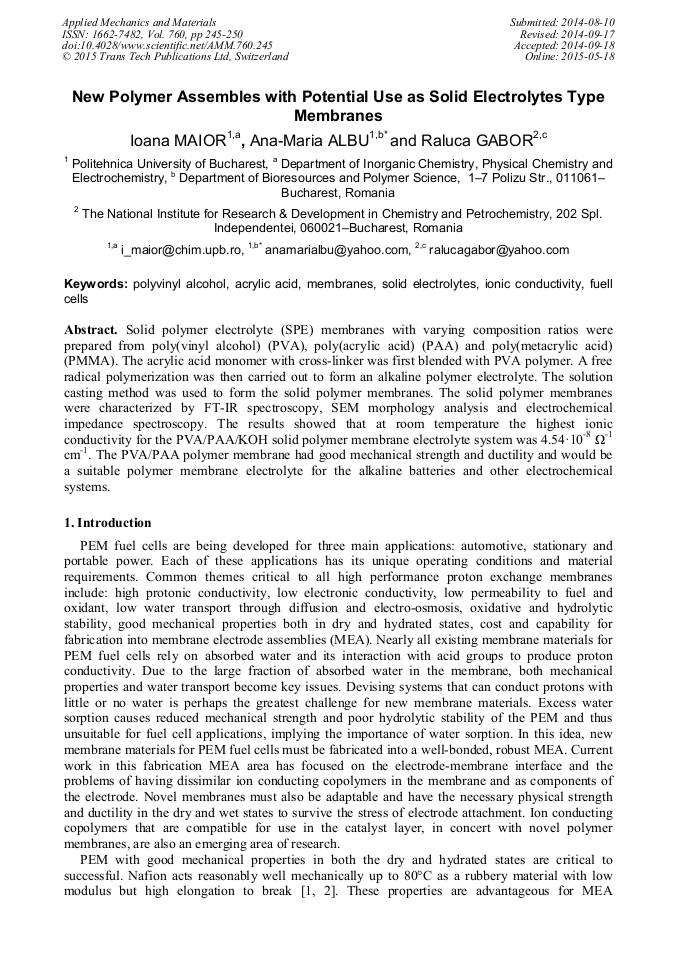

Article Preview

Abstract:

Solid polymer electrolyte (SPE) membranes with varying composition ratios were prepared from poly(vinyl alcohol) (PVA), poly(acrylic acid) (PAA) and poly(metacrylic acid) (PMMA). The acrylic acid monomer with cross-linker was first blended with PVA polymer. A free radical polymerization was then carried out to form an alkaline polymer electrolyte. The solution casting method was used to form the solid polymer membranes. The solid polymer membranes were characterized by FT-IR spectroscopy, SEM morphology analysis and electrochemical impedance spectroscopy. The results showed that at room temperature the highest ionic conductivity for the PVA/PAA/KOH solid polymer membrane electrolyte system was 4.54·10^-8 Ω^-1 cm^-1. The PVA/PAA polymer membrane had good mechanical strength and ductility and would be a suitable polymer membrane electrolyte for the alkaline batteries and other electrochemical systems.

You might also be interested in these eBooks

Advanced Technologies in Designing and Progressive Development of Manufacturing Systems

Info:

Periodical:

Applied Mechanics and Materials (Volume 760)

Pages:

245-250

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.760.245

Citation:

Cite this paper

Online since:

May 2015

Authors:

Ioana Maior, Ana Maria Albu*, Raluca Gabor

Keywords:

Acrylic Acid, Fuell Cells, Ionic Conductivity, Membranes, Polyvinyl Alcohol, Solid Electrolytes

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] B. Smitha, S. Sridhar, A.A. Khan, Solid polymer electrolyte membranes for fuel cell applications – a review, J. Membr Sci. 259 (1–2) (2005) 10–26.

DOI: 10.1016/j.memsci.2005.01.035

[2] V. Mehta, J.S. Cooper, Review and analysis of PEM fuel cell design and manufacturing, J. Power Sources 114 (2003) 32–53.

DOI: 10.1016/s0378-7753(02)00542-6

[3] K.A. Mauritz, R.B. Moore, State of Understanding of Nafion, Chem. Rev. 104 (10) (2004) 4535–85.

[4] R. Basnayake, G.R. Peterson, D.J. Casadonte, C. Korzeniewski, Hydration and Interfacial Water in Nafion Membrane Probed by Transmission Infrared Spectroscopy, J. Phys. Chem. B 110 (47) (2006) 23938–23943.

DOI: 10.1021/jp064121i

[5] N. Carretta, V. Tricoli, F. Picchioni, Ionomeric membranes based on partially sulfonated poly(styrene): synthesis, proton conduction and methanol permeation, J. Membr. Sci. 166 (2) (2000) 189–197.

DOI: 10.1016/s0376-7388(99)00258-6

[6] M. Sankir, Y.S. Kim, B.S. Pivovar, J.E. McGrath, Proton exchange membrane for DMFC and H2/air fuel cells: Synthesis and characterization of partially fluorinated disulfonated poly(arylene ether benzonitrile) copolymers, J. Membr. Sci. 299 (1–2) (2007).

DOI: 10.1016/j.memsci.2007.04.004

[7] H.S. Lee, A.S. Badami, A. Roy, J.E. McGrath, Segmented sulfonated poly(arylene ether sulfone)-b-polyimide copolymers for proton exchange membrane fuel cells. I. Copolymer synthesis and fundamental properties, J. Polym. Sci. Part A Polym. Chem. 45 (21) (2007).

DOI: 10.1002/pola.22238

[8] C.G. Cho, Y.S. Kim, X. Yu, M. Hill, J.E. McGrath, Synthesis and characterization of poly(arylene ether sulfone) copolymers with sulfonimide side groups for a proton-exchange membrane, J. Polym. Sci. Part A Polym. Chem. 44 (20) (2006) 6007–6014.

DOI: 10.1002/pola.21565

[9] M.A. Hofmann, C.M. Ambler, A.E. Maher, E. Chalkova, X.Y. Zhou, S.N. Lvov, H.R. Allcock, Synthesis of Polyphosphazenes with Sulfonimide Side Groups, Macromolecules 35 (17) (2002) 6490–6493.

DOI: 10.1021/ma020330z

[10] Y. Yang, S. Holdcroft, Synthetic Strategies for Controlling the Morphology of Proton Conducting Polymer Membranes, Fuel Cells 5 (2) (2005) 171–186.

DOI: 10.1002/fuce.200400058

[11] L. Xiao, H. Zhang, T. Jana, E. Scanlon, R. Chen, E.W. Choe, L.S. Ramanathan, S. Yu, B.C. Benicewicz, Synthesis and Characterization of Pyridine-Based Polybenzimidazoles for High Temperature Polymer Electrolyte Membrane Fuel Cell Applications, Fuel Cells 5 (2) (2005).

DOI: 10.1002/fuce.200400067

[12] H.J. Kim, T.H. Lim, PBI Derivatives: Polymer Electrolyte Fuel Cell Membrane for High Temperature Operation, J. Ind. Eng. Chem. 10 (7) (2004) 1081–1085.

[13] R. Bouchet, E. Siebert, Proton conduction in acid doped polybenzimidazole, Solid State Ionics 118 (3–4) (1999) 287–299.

DOI: 10.1016/s0167-2738(98)00466-4

[14] J.A. Asensio, S. Borros, P. Gomez-Romero, Polymer Electrolyte Fuel Cells Based on Phosphoric Acid-Impregnated Poly(2, 5-benzimidazole) Membranes, J. Electrochem. Soc. 151 (2) (2004) A304–A310.

DOI: 10.1149/1.1640628

[15] J. Lobato, P. Canizares, M.A. Rodrigo, J.J. Linares, G. Manjavacas, Synthesis and characterisation of poly[2, 2-(m-phenylene)-5, 5-bibenzimidazole] as polymer electrolyte membrane for high temperature PEMFCs, J. Membr. Sci. 280 (2006) 351–362.

DOI: 10.1016/j.memsci.2006.01.049

[16] J. Lobato, P. Canizares, M.A. Rodrigo, J.J. Linares, J.A. Aguilar, Improved polybenzimidazole films for H3PO4-doped PBI-based high temperature PEMFC, J. Membr. Sci. 306 (1–2) (2007) 47–55.

DOI: 10.1016/j.memsci.2007.08.028

[17] D.T. Glatzhofer, M.J. Erickson, R. Frech, F. Yepez, J.E. Furneaux, Polymer electrolytes based on cross-linked linear poly(ethylenimine) hydrochloride/phosphoric acid systems, Solid State Ionics, 176 (39–40) (2005) 2861–2865.

DOI: 10.1016/j.ssi.2005.09.055

[18] A.G. Giffin, F.Y. Castillo, R. Frech, T.D. Glatzhofer, C.M. Burba, Spectroscopic investigation of proton-conducting, cross-linked linear poly(ethylenimine) hydrochloride membranes, Polymer, 50 (2009) 171-176.

DOI: 10.1016/j.polymer.2008.10.051

[19] B. Smitha, S. Sridhar, A.A. Khan, Polyelectrolyte Complexes of Chitosan and Poly(acrylic acid) As Proton Exchange Membranes for Fuel Cells, Macromol. 37 (2004) 2233-2239.

DOI: 10.1021/ma0355913

[20] L.E. Karlsson, B. Wesslén, P. Jannasch, Water absorption and proton conductivity of sulfonated acrylamide copolymers, Electrochem. Acta, 47 (20) (2002) 3269–3275.

DOI: 10.1016/s0013-4686(02)00244-x

[21] A.S. Michaels, R.G. Miekka, Polycation-Polyanion Complexes: Preparation and Properties of Poly-(Vinylbenzyltrimethylammonium) Poly-(Styrenesulfonate), J. Phys. Chem., 65 (1961) 1765–1773.

DOI: 10.1021/j100827a020

[22] A.S. Michaels, Polyelectrolyte Complexes, Ind. Eng. Chem., 57 (1965) 32–40.

[23] J.J. Shieh, Y. M. Huang, Pervaporation with chitosan membranes II. Blend membranes of chitosan and polyacrylic acid and comparison of homogeneous and composite membrane based on polyelectrolyte complexes of chitosan and polyacrylic acid for the separation of ethanol-water mixtures, J. Membr. Sci., 127 (2) (1997).

DOI: 10.1016/s0376-7388(96)00279-7

[24] C.C. Yang, Polymer Ni–MH battery based on PEO–PVA–KOH polymer electrolyte, J. Power Sources 109 (2002) 22–31.

DOI: 10.1016/s0378-7753(02)00038-1

[25] C.C. Yang, S.J. Lin, Alkaline composite PEO–PVA-glass-fibre-mat polymer electrolyte for Zn-air battery, J. Power Sources 112 (2002) 497–503.

DOI: 10.1016/s0378-7753(02)00438-x

[26] C.C. Yang, S.J. Lin, Preparation of alkaline PVA-based polymer electrolytes for Ni–MH and Zn-air batteries, J. Appl. Eelectrochem. 33 (2003) 777–784.

[27] C. Iwakura, S. Nohara, N. Furukawa, H. Inoue, The possible use of polymer gel electrolytes in nickel/metal hydride battery, Solid State Ionics 148 (2002) 487–492.

DOI: 10.1016/s0167-2738(02)00092-9

[28] C.C. Yang, S.J. Lin, G.M. Wu, Study of ionic transport properties of alkaline poly(vinyl) alcohol-based polymer electrolytes, Mat. Chem. and Physics 92 (2005) 251–255.

DOI: 10.1016/j.matchemphys.2005.01.022

[29] P. Vasilescu, O.C. Pârvulescu, C. Jinescu, Un model matematic al procesului de schimb ionic în strat fix, Rev. Chim. 49 (1998) 829-836.

[30] T. Dobre, L. Calotă, O.C. Pârvulescu, G. Iavorschi, Use of Experimental Breakthrough Curves for Ion Exchange Process Optimization, U.P.B. Sci. Bull. 68 (2006) 13-26.

[31] D.I. Văireanu, I. Maior, A. Grigore, D. Săvoiu, The Evaluation of Ionic Conductivity in Polymer Electrolyte Membranes, Rev. Chim. 59 (10) (2008) 1140–1142.

DOI: 10.37358/rc.08.10.1984

[32] N. Duţeanu, K. Scott, N. Vaszilcsin, A. Kellenberger, Contribuţii la îmbunătăţirea performanţelor pilelor de combustie directă cu metanol, Rev. Chim., 58 (12) (2007) 1207–1211.

[33] T.A. Zawodzinski Jr,. M. Neeman, L.O. Sillerud, S. Gottesfeld, Determination of Water Diffusion Coefficients in Perfluoro-sulfonate Ionomeric Membranes, J. Phys. Chem., 95 (15) (1991) 6040–6044.

DOI: 10.1021/j100168a060

[34] X. Yuan, H. Wang, J.C. Sun, J. Zhang, AC Impedance Technique in PEM Fuel Cell Diagnosis – A review, Internat. J. Hydrogen Energy, 32 (2007) 4365–4380.

DOI: 10.1016/j.ijhydene.2007.05.036

[35] G.M. Wu, S.J. Lin, C.C. Yang, Preparation and characterization of PVA/PAA membranes for solid polymer electrolytes, J. Membr. Sci. 275 (2006) 127–133.

DOI: 10.1016/j.memsci.2005.09.012
