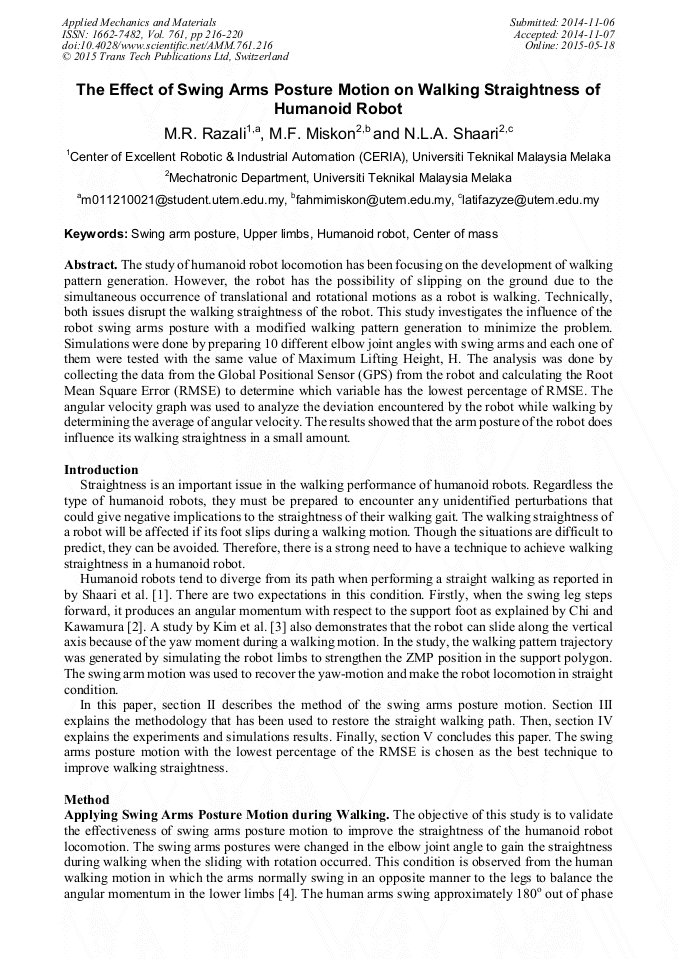

The Effect of Swing Arms Posture Motion on Walking Straightness of Humanoid Robot

Abstract:

The study of humanoid robot locomotion has been focusing on the development of walking pattern generation. However, the robot has the possibility of slipping on the ground due to the simultaneous occurrence of translational and rotational motions as a robot is walking. Technically, both issues disrupt the walking straightness of the robot. This study investigates the influence of the robot swing arms posture with a modified walking pattern generation to minimize the problem. Simulations were done by preparing 10 different elbow joint angles with swing arms and each one of them were tested with the same value of Maximum Lifting Height, H. The analysis was done by collecting the data from the Global Positional Sensor (GPS) from the robot and calculating the Root Mean Square Error (RMSE) to determine which variable has the lowest percentage of RMSE. The angular velocity graph was used to analyze the deviation encountered by the robot while walking by determining the average of angular velocity. The results showed that the arm posture of the robot does influence its walking straightness in a small amount.

• Periodical: Applied Mechanics and Materials (Volume 761)
• Pages: 216-220
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.761.216
• Online since: May 2015
• Authors: M.R. Razali, Muhammad Fahmi Miskon*, N.L.A. Shaari
• Keywords: Center of Mass, Humanoid Robot, Swing Arm Posture, Upper Limbs

References

[1] N.L.A. Shaari, M.R. Razali, M. Miskon, I.S.M. Isa, Parameter study of stable walking gaits for NAO humanoid robot, Int. J. Res. Eng. Technol. 2 (2013) 16-23.

[2] C. Zhu, A. Kawamura, What Is the Real Frictional Constraint in Biped Walking? - Discussion on Frictional Slip with Rotation,. IEEE/RSJ International Conference on Intelligent Robots and Systems, pp.5762-5768, Oct. (2006).

DOI: 10.1109/iros.2006.282460

[3] Y.D. Kim, B.J. Lee, J.K. Yoo, S.H. Choi, J.H. Kim, Humanoid Robot HanSaRam: Yawing moment cancellation and ZMP compensation, Second American University of Sharjah International Symposium on Mechatronics, Apr (2005).

[4] R.N. Hinrichs, Whole Body Movement: Coordination Of Arms And Legs In Walking And Running, in: J.M. Winters, S.L.Y. Loo (Eds. ),  Multiple Muscle Systems, Springer, New York, 1990, pp.694-705.

DOI: 10.1007/978-1-4613-9030-5_45

[5] H. Elftman, The function of the arms in walking. Human Biology, 11 (1939) 529-535.

[6] S.H. Collins, M. Wisse, A. Ruina, A three-dimensional passive-dynamic walking robot with two legs and knees. Int. J. Rob. Res. 20 (2001) 607-615.

DOI: 10.1177/02783640122067561

[7] E.P. Zehr, J. Duysens,. Regulation of arm and leg movement during human locomotion. The Neuroscientist, 10 (2004) 347-361.

DOI: 10.1177/1073858404264680

[8] N. Shafii, A. Khorsandian, A. Abdolmaleki, B. Jozi, An Optimized Gait Generator based on Fourier Series Towards Fast and Robust Biped Locomotion Involving Arms Swing,. IEEE International Conference on Automation and Logistics, pp.2018-2023, Aug (2009).

DOI: 10.1109/ical.2009.5262600

[9] T. Hirabayashi, B. Ugurlu, A. Kawamura, Z. Chi, Yaw Moment Compensation of Biped Fast Walking using 3D Inverted Pendulum,. 10th IEEE International Workshop on Advanced Motion Control, pp.296-300, Mar (2008).

DOI: 10.1109/amc.2008.4516082

[10] D. Goswami, (2009) Biped Locomotion: Stability Analysis, Gait Generation and Control (phD Thesis). Department of Electrical and Computer Engineering, National University of Singapore.

[11] G. Dip, V. Prahlad, P.D. Kien, Genetic algorithm-based optimal bipedal walking gait synthesis considering tradeoff between stability margin and speed. Robotica, 27 (2009) 355-365.

DOI: 10.1017/s026357470800475x
