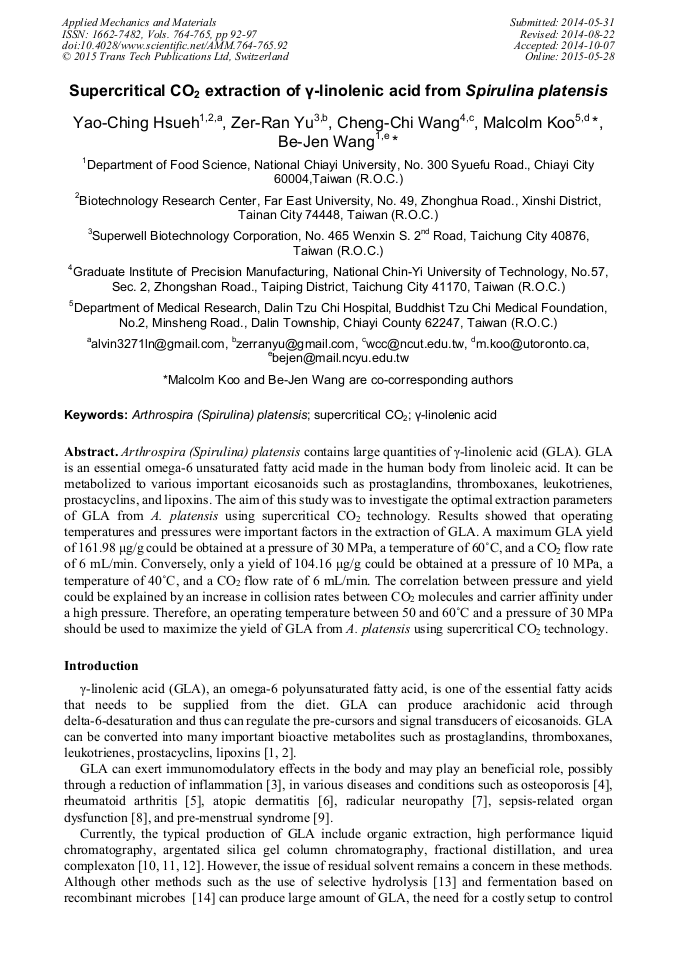

Supercritical CO₂ Extraction of γ-Linolenic Acid from Spirulina platensis

Abstract:

Arthrospira (Spirulina) platensis contains large quantities of γ-linolenic acid (GLA). GLA is an essential omega-6 unsaturated fatty acid made in the human body from linoleic acid. It can be metabolized to various important eicosanoids such as prostaglandins, thromboxanes, leukotrienes, prostacyclins, and lipoxins. The aim of this study was to investigate the optimal extraction parameters of GLA from A. platensis using supercritical CO₂ technology. Results showed that operating temperatures and pressures were important factors in the extraction of GLA. A maximum GLA yield of 161.98 μg/g could be obtained at a pressure of 30 MPa, a temperature of 60°C, and a CO₂ flow rate of 6 mL/min. Conversely, only a yield of 104.16 μg/g could be obtained at a pressure of 10 MPa, a temperature of 40°C, and a CO₂ flow rate of 6 mL/min. The correlation between pressure and yield could be explained by an increase in collision rates between CO₂ molecules and carrier affinity under a high pressure. Therefore, an operating temperature between 50 and 60°C and a pressure of 30 MPa should be used to maximize the yield of GLA from A. platensis using supercritical CO₂ technology.

• Periodical: Applied Mechanics and Materials (Volumes 764-765)
• Pages: 92-97
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.764-765.92
• Online since: May 2015
• Authors: Yao Ching Hsueh, Zer Ran Yu, Cheng Chi Wang, Malcolm Koo, Be Jen Wang*
• Keywords: Arthrospira (spirulina) platensis, Supercritical CO₂, γ-Linolenic Acid

References

[1] H. Tapiero, G.N. Ba, P. Couvreur, K.D. Tew: Polyunsaturated fatty acids (PUFA) and eicosanoids in human health and pathologies. Biomed. Pharmacother. 56 (2002) 215-222.

DOI: 10.1016/s0753-3322(02)00193-2

[2] O.P. Ward, A. Singh: Omega-3/6 fatty acids: Alternative sources of production. Process Biochem. 40 (2005) 3627-3652.

DOI: 10.1016/j.procbio.2005.02.020

[3] L.D. Peterson, F. Thies, P.C. Calder: Dose-dependent effects of dietary γ-linolenic acid on rat spleen lymphocyte functions. Prostaglandins Leukot. Essent. Fatty Acids 61 (1999) 19-24.

DOI: 10.1054/plef.1999.0067

[4] M.C. Kruger, H. Coetzer, R. de Winter, G. Gericke, D.H. van Papendorp, Calcium, gamma-linolenic acid and eicosapentaenoic acid supplementation in senile osteoporosis. Aging 10 (1998) 385-394.

DOI: 10.1007/bf03339885

[5] M. Brzeski, R. Madhok, H.A. Capell: Evening primrose oil in patients with rheumatoid arthritis and side-effects of non-steroidal anti-inflammatory drugs. Br. J. Rheumatol. 30 (1991) 370-372.

DOI: 10.1093/rheumatology/30.5.370

[6] A. Kawamura, K. Ooyama, K. Kojima, H. Kachi, T. Abe, K. Amano, T. Aoyama: Dietary supplementation of gamma-linolenic acid improves skin parameters in subjects with dry skin and mild atopic dermatitis. J. Oleo. Sci. 60 (2011) 597-607.

DOI: 10.5650/jos.60.597

[7] M. Ranieri, M. Sciuscio, A.M. Cortese, A. Santamato, L. Di Teo, G. Ianieri, R.G. Bellomo, M. Stasi, M. Megna: The use of alpha-lipoic acid (ALA), gamma linolenic acid (GLA) and rehabilitation in the treatment of back pain: effect on health-related quality of life. Int. J. Immunopathol. Pharmacol. 22 (2009).

DOI: 10.1177/03946320090220s309

[8] A. Pontes-Arruda, L.F. Martins, S.M. de Lima, A.M. Isola, D. Toledo, E. Rezende, M. Maia, G.B. Magnan: Enteral nutrition with eicosapentaenoic acid, γ-linolenic acid and antioxidants in the early treatment of sepsis: results from a multicenter, prospective, randomized, double-blinded, controlled study: the INTERSEPT study. Crit. Care 15 (2011).

DOI: 10.1186/cc10267

[9] D.F. Horrobin: The role of essential fatty acids and prostaglandins in the premenstrual syndrome. J. Reprod. Med. 28 (1983) 465-468.

[10] M.T. Facciotti, P.B. Bertain, L. Yuan: Improved stearate phenotype in transgenic canola expressing a modified acyl-acyl carrier protein thioesterase. Nat. Biotechnol. 17 (1999) 593-597.

DOI: 10.1038/9909

[11] J.L. Guil-Guerrero, F. Garcı́a-Maroto, M.A. Vilches-Ferrón, D. López-Alonso, Gamma-linolenic acid from fourteen Boraginaceae species. Ind. Crops and Prod. 18 (2003) 85-89.

DOI: 10.1016/s0926-6690(03)00036-0

[12] S.A. Spurvey, F. Shahidi: Concentration of gamma linolenic acid (GLA) from borage oil by urea complexation: Optimisation of reaction conditions. J. Food Lipids 7 (2000) 163-174.

DOI: 10.1111/j.1745-4522.2000.tb00169.x

[13] Y. Shimada, N. Fukushima, H. Fujita, Y. Honda, A. Sugihara, Y. Tominaga: Selective hydrolysis of borage oil with Candida rugosa lipase: Two factors affecting the reaction. J. Am. Oil Chem. Soc. 75 (1998) 1581-1586.

DOI: 10.1007/s11746-998-0097-5

[14] M. Certik, S. Shimizu: Biosynthesis and regulation of microbial polyunsaturated fatty acid production. J. Biosci. Bioeng. 87 (1999) 1-14.

DOI: 10.1016/s1389-1723(99)80001-2

[15] Z. Cohen, M. Reungjitchachawali, W. Siangdung, M. Tanticharoen: Production and partial purification of γ-linolenic acid and some pigments from Spirulina platensis. J. Appl. Phycol. 5 (1993) 109-115.

DOI: 10.1007/bf02182428

[16] M.G. Sajilata, R.S. Singhal, M.Y. Kamat: Supercritical CO2 extraction of γ-linolenic acid (GLA) from Spirulina platensis ARM 740 using response surface methodology. J. Food Eng. 84 (2008a) 321-326.

DOI: 10.1016/j.jfoodeng.2007.05.028

[17] M.A. Borowitzka: Microalgae for aquaculture: Opportunities and constraints. J. Appl. Phycol. 9 (1997) 393-401.

[18] G. Chamorro, S. Salazar, L. Favila-Castillo, C. Steele, M. Salazar: Reproductive and peri- and postnatal evaluation of Spirulina maxima in mice. J. Appl. Phycol. 9 (1997) 107-112.

DOI: 10.1016/s0378-4274(96)80242-6

[19] M. Salazar, E. Martı́nez, E. Madrigal, L.E. Ruiz, G.A. Chamorro: Subchronic toxicity study in mice fed Spirulina maxima. J. Ethnopharmacol. 62 (1998) 235-241.

DOI: 10.1016/s0378-8741(98)00080-4

[20] Y. Yang, Y. Park, D.A. Cassada, D.D. Snow, D.G. Rogers, J. Lee: In vitro and in vivo safety assessment of edible blue-green algae, Nostoc commune var. sphaeroides Kützing and Spirulina plantensis. Food Chem. Toxicol. 49 (2011) 1560-1564.

DOI: 10.1016/j.fct.2011.03.052

[21] G.E.P. Box, D.W. Benhnken: Some new three level design for the study of quantitative variable. Technometrics. 2 (1960) 455-475.

[22] G. Began, M. Goto, A. Kodama, and T. Hirose: Response surfaces of total oil yield of turmeric (Curcuma longa) in supercritical carbon dioxide. Food Res. Int. 33 (2000) 341-345.

DOI: 10.1016/s0963-9969(00)00053-3

[23] M.G. Sajilata, R.S. Singhal, M.Y. Kamat: Fractionation of lipids and purification of γ-linolenic acid (GLA) from Spirulina platensis. Food Chem. 109 (2008b) 580-586.

DOI: 10.1016/j.foodchem.2008.01.005
