Overaged Samples and Growth of Eutectics Mg-6Gd-3.7Nd Based Alloys

Abstract:

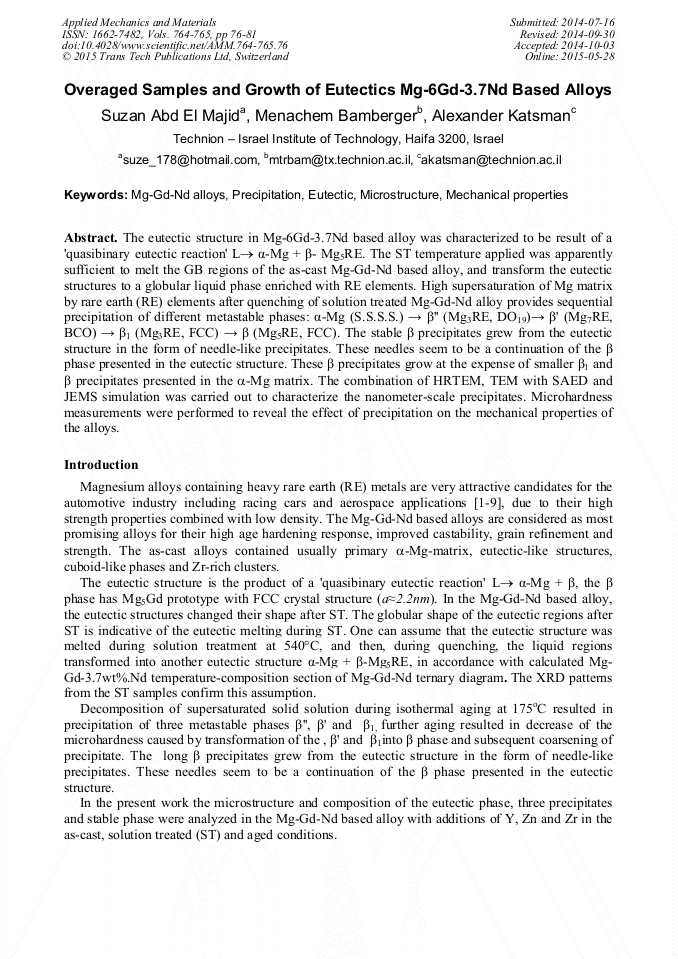

The eutectic structure in Mg-6Gd-3.7Nd based alloy was characterized to be result of a 'quasibinary eutectic reaction' L→ α-Mg + β-Mg₅RE. The ST temperature applied was apparently sufficient to melt the GB regions of the as-cast Mg-Gd-Nd based alloy, and transform the eutectic structures to a globular liquid phase enriched with RE elements. High supersaturation of Mg matrix by rare earth (RE) elements after quenching of solution treated Mg-Gd-Nd alloy provides sequential precipitation of different metastable phases: α-Mg (S.S.S.S.) → β'' (Mg₃RE, DO₁₉)→ β' (Mg₇RE, BCO) → β₁ (Mg₃RE, FCC) → β (Mg₅RE, FCC). The stable β precipitates grew from the eutectic structure in the form of needle-like precipitates. These needles seem to be a continuation of the β phase presented in the eutectic structure. These β precipitates grow at the expense of smaller β₁ and β precipitates presented in the α-Mg matrix. The combination of HRTEM, TEM with SAED and JEMS simulation was carried out to characterize the nanometer-scale precipitates. Microhardness measurements were performed to reveal the effect of precipitation on the mechanical properties of the alloys.

• Periodical: Applied Mechanics and Materials (Volumes 764-765)
• Pages: 76-81
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.764-765.76
• Online since: May 2015
• Authors: Suzan Abd El Majid, Menachem Bamberger, Alexander Katsman
• Keywords: Eutectic, Mechanical Property, Mg-Gd-Nd Alloys, Microstructure, Precipitation

References

[1] B. L. Mordike and T. Ebert: Magnesium: properties – applications – potential, Materials Science and Engineering A 302 (1), 37-45 (2001).

[2] L. Huber, I. Elfimov, J. Rottler, M. Militzer: Ab initio calculations of rare-earth diffusion in magnesium, Physical Review B 85, 144301 (2012).

DOI: 10.1103/physrevb.85.144301

[3] K.Y. Zheng, J. Dong, X. Q. Zeng and W. J. Ding: Effect of thermo-mechanical treatment on the microstructure and mechanical properties of a Mg–6Gd–2Nd–0. 5Zr alloy, Materials Science and Engineering A 454-455 (2007), 314-321.

DOI: 10.1016/j.msea.2006.11.033

[4] B. L. Mordike and T. Ebert: Magnesium: properties – applications – potential, Materials Science and Engineering A 302 (1), 37-45 (2001).

[5] K.Y. Zheng, J. Dong, X. Q. Zeng and W. J. Ding: Microstructural characterisation of as cast and homogenised Mg-Gd-Nd-Zr alloys, Materials Science and Technology 24(3) (2008).

DOI: 10.1179/174328408x275991

[6] K.Y. Zheng, X. Q. Zeng J. Dong, and W. J. Ding: Effect of initial temper on the creep behavior of a Mg-Gd-Nd-Zr alloy, Materials Science and Engineering A 492, 185-190 (2008).

DOI: 10.1016/j.msea.2008.03.009

[7] G. Sha, J. H. Li, W. Xu et al.: Hardening and microstructural reactions in high-temperature equal-channel angular pressed Mg–Nd–Gd–Zn–Zr alloy, Materials Science and Engineering A 527, 5092-5099 (2010).

DOI: 10.1016/j.msea.2010.04.064

[8] J. F. Nie: Precipitation and hardening in magnesium alloys, Metallurgical and Materials Transactions A 43, 3891-3939 (2012).

DOI: 10.1007/s11661-012-1217-2

[9] K.Y. Zheng, J. Dong, X. Q. Zeng and W. J. Ding: Microstructural characterisation of as cast and homogenised Mg-Gd-Nd-Zr alloys, Materials Science and Technology 24(3) (2008).

DOI: 10.1179/174328408x275991

[10] P. J. Apps, H. Karimzadeh, J. F. King et al.: Phase compositions in magnesium-rare earth alloys containing yttrium, gadolinium or dysprosium, Scripta Materialia 48, 475–481 (2003).

DOI: 10.1016/s1359-6462(02)00509-2

[11] M. Nishijima, K. Hiraga, M. Yamasaki, Y. Kawamura: Characterization of β' phase precipitates in an Mg-5 at% Gd alloy aged in a peak hardness condition, Materials Transactions 47(8), 2109-2112 (2006).

DOI: 10.2320/matertrans.47.2109
