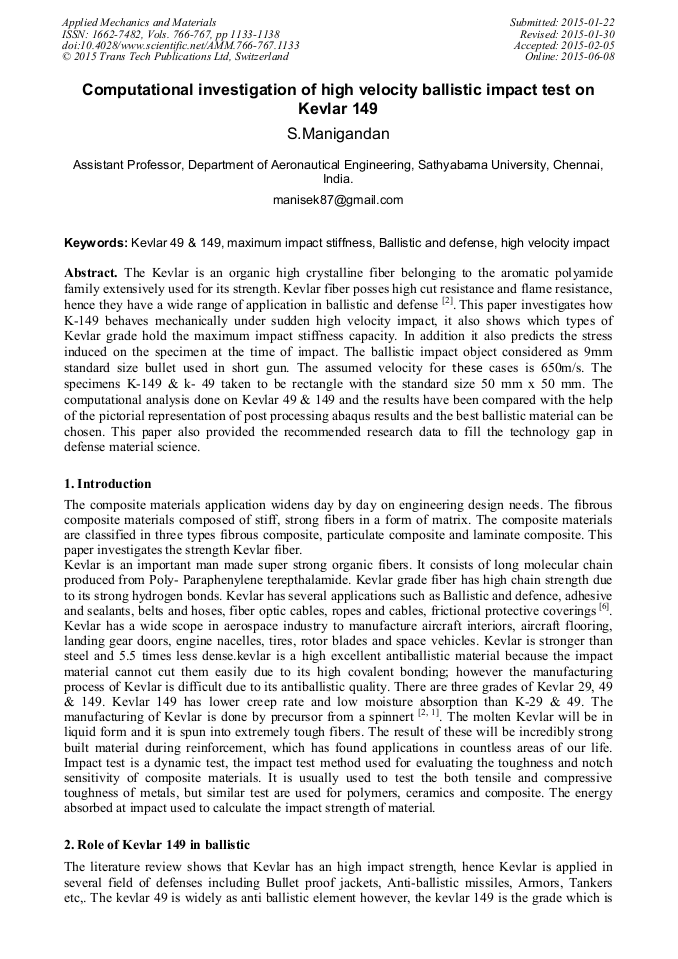

Computational Investigation of High Velocity Ballistic Impact Test on Kevlar 149

Abstract:

The Kevlar is an organic high crystalline fiber belonging to the aromatic polyamide family extensively used for its strength. Kevlar fiber posses high cut resistance and flame resistance, hence they have a wide range of application in ballistic and defense ^[2]. This paper investigates how K-149 behaves mechanically under sudden high velocity impact, it also shows which types of Kevlar grade hold the maximum impact stiffness capacity. In addition it also predicts the stress induced on the specimen at the time of impact. The ballistic impact object considered as 9mm standard size bullet used in short gun. The assumed velocity for these cases is 650m/s. The specimens K-149 & k-49 taken to be rectangle with the standard size 50 mm x 50 mm. The computational analysis done on Kevlar 49 & 149 and the results have been compared with the help of the pictorial representation of post processing abaqus results and the best ballistic material can be chosen. This paper also provided the recommended research data to fill the technology gap in defense material science.

• Periodical: Applied Mechanics and Materials (Volumes 766-767)
• Pages: 1133-1138
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.766-767.1133
• Online since: June 2015
• Authors: S. Manigandan*
• Keywords: Ballistic, Defense, High Velocity Impact, Kevlar 149, Kevlar 49, Maximum Impact Stiffness

References

[1] A.R. Abu Taliba, L.H. Abbuda, A. Alib, F. Mustaphaa, Ballistic impact performance of Kevlar-29 and Al2O3 powder/epoxy targets under high velocity impact, Materials & Design, 2012, Volume 35, Pages 12–19.

DOI: 10.1016/j.matdes.2011.08.045

[2] Jeremy Gustin , Aaran Joneson , Mohammad Mahinfalah, , James Stone , Low velocity impact of combination Kevlar/carbon fiber sandwich composites, Journal of Materials Science, Volume 38, Issue 13, Pages 2825-2833.

DOI: 10.1016/j.compstruct.2004.07.020

[3] Pierre-Luc Vachon, Vladimir Brailovski, Patrick Terriault, Impact-induced damage and damage propagation under flexural load in TiNi and Kevlar-stitched carbon/epoxy laminates, Composite Structures, 2013, Volume 100, Pages 424–435.

DOI: 10.1016/j.compstruct.2013.01.011

[4] Tae Jin Kang, Cheol Kim, Energy-absorption mechanisms in Kevlar multiaxial warp-knit fabric composites under impact loading, Composites Science and Technology, 2000, Volume 60, Issue 5, Pages 773–784.

DOI: 10.1016/s0266-3538(99)00185-2

[6] Young S. Lee, E. D. Wetzel, N. J. Wagner, The ballistic impact characteristics of Kevlar woven fabrics impregnated with a colloidal shear thickening fluid, Journal of Materials Science, 2003 Volume 38, Issue 13, Pages 2825-2833.

[7] A.K. Kulshreshtha, Cornelia Vasile, Handbook of Polymer Blends and Composites, Volume 1, Rapara Technology limited, UK, (2002).
