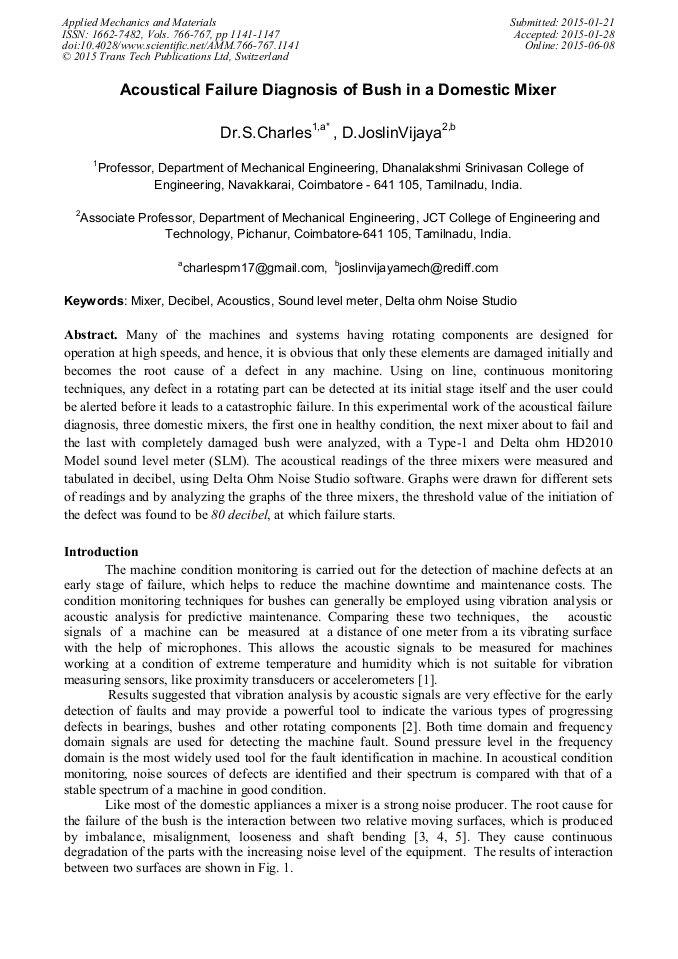

Acoustical Failure Diagnosis of Bush in a Domestic Mixer

Abstract:

Many of the machines and systems having rotating components are designed for operation at high speeds, and hence, it is obvious that only these elements are damaged initially and becomes the root cause of a defect in any machine. Using on line, continuous monitoring techniques, any defect in a rotating part can be detected at its initial stage itself and the user could be alerted before it leads to a catastrophic failure. In this experimental work of the acoustical failure diagnosis, three domestic mixers, the first one in healthy condition, the next mixer about to fail and the last with completely damaged bush were analyzed, with a Type-1 and Delta ohm HD2010 Model sound level meter (SLM). The acoustical readings of the three mixers were measured and tabulated in decibel, using Delta Ohm Noise Studio software. Graphs were drawn for different sets of readings and by analyzing the graphs of the three mixers, the threshold value of the initiation of the defect was found to be 80 decibel, at which failure starts.

• Periodical: Applied Mechanics and Materials (Volumes 766-767)
• Pages: 1141-1147
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.766-767.1141
• Online since: June 2015
• Authors: S. Charles*, D. Joslin Vijaya
• Keywords: Acoustics, Decibel, Delta Ohm Noise Studio, Mixer, Sound Level Meter

References

[1] Information on http: /www. iasir. net.

[2] J.S. Rao and R. Sreenivas, Dynamic analysis of misaligned rotor sys., Adv. Vib. Engg. 2 (2003) 1.

[3] R. Dayal, ParhiandManoj Kumar Muni, Review of vibration faultdetection methods, Int. J. App. Artifi. Intelli. in Engg. Sys. l3 (2011)109-118.

[4] A.K. Jalan and A.R. Mohanty, Model based fault diagnosis of a rotor-bearing systemfor misalignment andunbalance under steady-state condition, J. Sound Vib. 327 (2009) 604-622.

DOI: 10.1016/j.jsv.2009.07.014

[5] J.K. Sinha, Higher order spectra for Crack and misalignment identification in the shaft of a rotating machine, J. Struc. Health Monit. 6 (2007)325- 333.

DOI: 10.1177/1475921707082309

[6] E. Lawrence Kinsler and R. Austin Frey, Fundamentals of Acoustics, Published by JohnWiley& Sons, Inc., New York, (1992).

[7] ByoungHoo Rhoand Kyung-Woong Kim, Acoustic Properties of hydrodynamic Journal bearings, Tribology Int. 36(2003)61-66.

[8] T.C. Lim, Automative panel noise contribution modeling based on finite element and measured structural acoustic spectra, J. of Appl. Acoustics. 60 (2000) 505 – 519.

DOI: 10.1016/s0003-682x(00)00007-4

[9] B.S. Dhillon, Part 2 : Experimental Validation, Maintainability, maint. and rel. for engineers, CRS Press, London, (2006) 987 – 999.

[10] S.H. Sarja, G.S. Lathkar and S.K. Basu, CBM Policy for an Online Monit. Deterior. System with Random Change of Mode, J. of the Int. of Engineers (India) Series C. 93 (2012) 27 – 32.

DOI: 10.1007/s40032-011-0006-9
