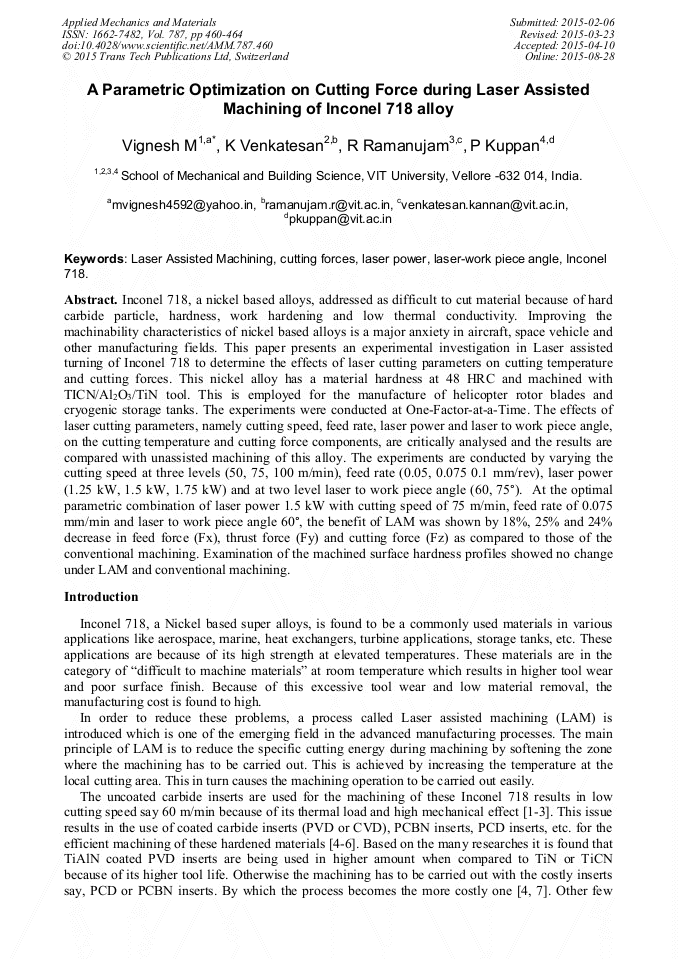

A Parametric Optimization on Cutting Force during Laser Assisted Machining of Inconel 718 Alloy

Abstract:

Inconel 718, a nickel based alloys, addressed as difficult to cut material because of hard carbide particle, hardness, work hardening and low thermal conductivity. Improving the machinability characteristics of nickel based alloys is a major anxiety in aircraft, space vehicle and other manufacturing fields. This paper presents an experimental investigation in Laser assisted turning of Inconel 718 to determine the effects of laser cutting parameters on cutting temperature and cutting forces. This nickel alloy has a material hardness at 48 HRC and machined with TICN/Al₂O₃/TiN tool. This is employed for the manufacture of helicopter rotor blades and cryogenic storage tanks. The experiments were conducted at One-Factor-at-a-Time.The effects of laser cutting parameters, namely cutting speed, feed rate, laser power and laser to work piece angle, on the cutting temperature and cutting force components, are critically analysed and the results are compared with unassisted machining of this alloy. The experiments are conducted by varying the cutting speed at three levels (50, 75, 100 m/min), feed rate (0.05, 0.075 0.1 mm/rev), laser power (1.25 kW, 1.5 kW, 1.75 kW) and at two level laser to work piece angle (60, 75°). At the optimal parametric combinationof laser power 1.5 kW with cutting speed of 75m/min, feed rate of 0.075 mm/min and laser to work piece angle 60°, the benefit of LAM was shown by 18%, 25% and 24% decrease in feed force (Fx), thrust force (Fy) and cutting force (Fz) as compared to those of the conventional machining. Examination of the machined surface hardness profiles showed no change under LAM and conventional machining.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 460-464
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.460
• Online since: August 2015
• Authors: M. Vignesh*, K. Venkatesan, R. Ramanujam, P. Kuppan
• Keywords: Cutting Forces, Inconel 718, Laser Assisted Machining, Laser Power, Laser-Work Piece Angle

References

[1] D.G. Thakur, B. Ramamoorthy, L. Vijayaraghavan, Study on the machinability characteristics of superalloy Inconel 718 during high speed turning, Mat. Des 30 (2009) 1718–1725.

DOI: 10.1016/j.matdes.2008.07.011

[2] Muammer Nalbant, Abdullah Altın, Hasan Gokkaya, The effect of coating material and geometry of cutting tool and cutting speed on machinability properties of Inconel 718 super alloys, Mat. Des 28 (2007) 1719–1724.

DOI: 10.1016/j.matdes.2006.03.003

[3] A. Devillez, F. Schneider, S. Dominiak, D. Dudzinski, D. Larrouquere, Cutting forces and wear in dry machining of Inconel 718 with coated carbide tools, Wear 262 (2007) 931–942.

DOI: 10.1016/j.wear.2006.10.009

[4] H.Z. Li, H. Zeng, X.Q. Chen, An experimental study of tool wearand cutting force variation in the end milling of Inconel 718 with coated carbide inserts, J Mater Process Technol 180 (2006) 296–304.

DOI: 10.1016/j.jmatprotec.2006.07.009

[5] Muammer Nalbant, Abdullah Altın, Hasan Gokkaya, The effect of cutting speed and cutting tool geometry on machinability properties of nickel-base Inconel 718 super alloys, Mat. Des. 28 (2007) 1334–1338.

DOI: 10.1016/j.matdes.2005.12.008

[6] J. Costes, Y. Guillet, G. Poulachon, M. Dessoly M, Tool-life and wear mechanisms of cbn tools in machining of Inconel 718, Int J Mach Tools Manuf 47(7–8) (2007) 1081–1087.

DOI: 10.1016/j.ijmachtools.2006.09.031

[7] V. Bushlyaa, J. Zhoua, J.E. Stahla, Effect of Cutting Conditions on Machinability of Superalloy Inconel 718 During High Speed Turning with Coated and Uncoated PCBN Tools, 45th CIRP Conference on Manufacturing Systems 2012, Procedia CIRP 3 ( 2012 ) 370 – 375.

DOI: 10.1016/j.procir.2012.07.064

[8] T. Braham-Bouchnak, G. Germain, A. Morel, J. L. Lebrun, The influence of laser assistance on the machinability of the titanium alloy Ti555-3, Int J. Adv Manuf Technol 68 (2013) 2471–2481.

DOI: 10.1007/s00170-013-4855-7

[9] R. A. Rahman Rashid, S. Sun, S. Palanisamy, G. Wang, M. S. Dargusch, A study on laser assisted machining of Ti10V2Fe3Al alloy with varying laser power, Int J Adv Manuf Technol, DOI 10. 1007/s00170-014-5958-5.

DOI: 10.1007/s00170-014-5958-5
