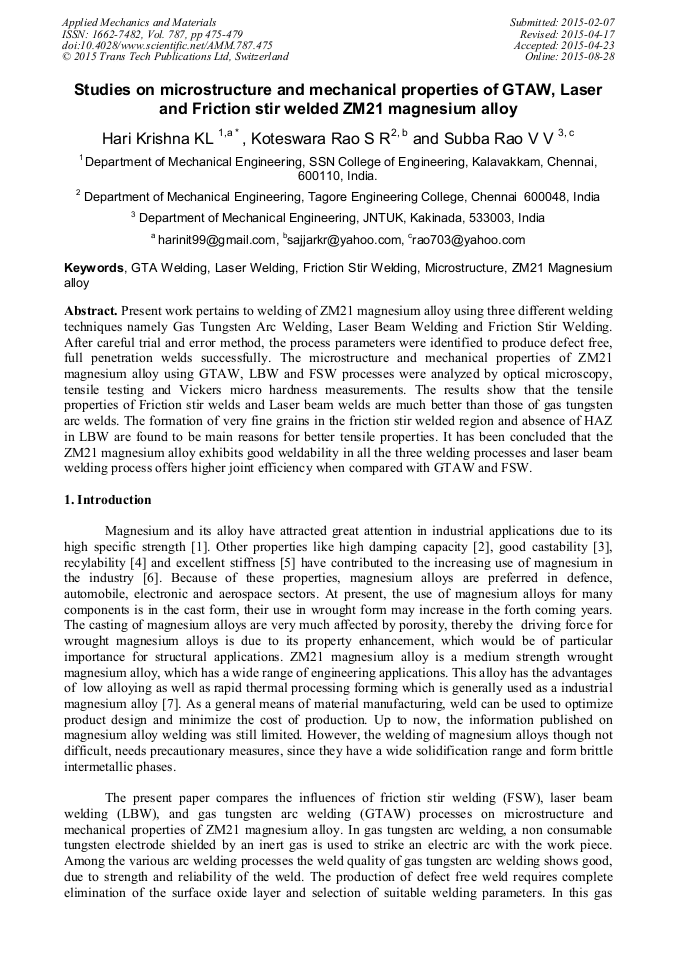

Studies on Microstructure and Mechanical Properties of GTAW, Laser and Friction Stir Welded ZM21 Magnesium Alloy

Abstract:

Present work pertains to welding of ZM21 magnesium alloy using three different welding techniques namely Gas Tungsten Arc Welding, Laser Beam Welding and Friction Stir Welding. After careful trial and error method, the process parameters were identified to produce defect free, full penetration welds successfully. The microstructure and mechanical properties of ZM21 magnesium alloy using GTAW, LBW and FSW processes were analyzed by optical microscopy, tensile testing and Vickers micro hardness measurements. The results show that the tensile properties of Friction stir welds and Laser beam welds are much better than those of gas tungsten arc welds. The formation of very fine grains in the friction stir welded region and absence of HAZ in LBW are found to be main reasons for better tensile properties. It has been concluded that the ZM21 magnesium alloy exhibits good weldability in all the three welding processes and laser beam welding process offers higher joint efficiency when compared with GTAW and FSW.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 475-479
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.475
• Online since: August 2015
• Authors: K.L. Harikrishna*, S.R. Koteswara Rao, Venkata V. Subba Rao
• Keywords: Friction Stir Welding, GTA Welding, Laser Welding, Microstructure, ZM21 Magnesium Alloy

References

[1] H. Haferkamp, M. Niemeyer, U. Dilthey, G. Trager. Laser and electron beam welding of magnesium materials, Weld J, 52 (2000) 178 – 180.

[2] P.G. Sanders, J.S. Keske, K.H. Leong, G. Kornecki, High power Nd: YAG and CO2 laser welding of magnesium, J Laser Appl, 11 (1999) 96 – 103.

DOI: 10.2351/1.521885

[3] B.L. Mordike, T. Ebert, Magnesium: Properties – Applications – Potential, Mat Sci Eng A, 302 (2001) 37 – 45.

[4] M. Pastor, H. Zhao, T. Debroy, Continous wave Nd: Yittrium – Aluminium-Garnet laser welding of AM60B magnesium alloys , J Laser Appl, 12 (2000) 91 – 100.

DOI: 10.2351/1.521922

[5] J.A. Esnaola, I. Torca, L. Galdos, C. Garcia. Determination of the optimum forming conditions for warm tube hydro forming ZM21 magnesium alloy, J Achieve Mater Manuf Eng, 32 (2009) 188-195.

[6] Chao-Chi Jain and Chun-Hao Koo. Creep and Corrosion properties of the extruded magnesium alloy containing rare earth, Mater Trans, 2 (2007) 265 – 272.

DOI: 10.2320/matertrans.48.265

[7] E. Schubert, M. Klassen, I. Zerner, Light weight structures produced by laser beam joining for future applications in automobile and aerospace industry, J Mater Process Tech, 115 (2001), 2 - 8.

DOI: 10.1016/s0924-0136(01)00756-7

[8] Magnesium and Magnesium Alloy., ASM speciality handbook, ASM international, Materials Park, OH, 1999, 194 – 199.

[9] H.W. Zhang, J.T. Chen, Z. Zhang, The finite element simulation of the friction stir welding process, Mat Sci Eng A, 403 (2005) 340 – 348.

DOI: 10.1016/j.msea.2005.05.052

[10] H. Haferkamp, U. Dilthey, G. Trager, I. Burmester, M. Niemeyer. Laser beam welding of magnesium alloys, Proceeding conference : Magnesium alloys and their applications, Wolfsburg, Germany, 1998, 595 – 600.

[11] N. Afrin, X. Chen, X. Cao, M. Jahazi, Microstructure and Tensile properties of Friction Stir welded AZ31B Magnesium Alloy, Mat Sci Eng A, 472 (2008) 179 – 186.

DOI: 10.1016/j.msea.2007.03.018

[12] Y.J. Quan, Z.H. Chen, X.S. Gong, Z.H. Yu, Effects of heat input on microstructure and tensile properties of laser welded magnesium alloy AZ31, Mater Charact, 59 (2008) 1491 – 1497.

DOI: 10.1016/j.matchar.2008.01.010

[13] Z. Sun, D. Pan, J. Wei. Comparative evaluation of tungsten inert gas and Laser welding of AZ31 magnesium alloy, Sci Technol Weld Joi, 7 (2002) 343 – 351.

DOI: 10.1179/136217102225006831

[14] G. Padmanaban, V. Balasubramanian, J.K. Sarin Sundar. Influences of welding processes on microstructure, hardness and tensile properties of AZ31B magnesium alloy, J Mater Eng Perform, 19 (2010) 155 – 165.

DOI: 10.1007/s11665-009-9389-7
