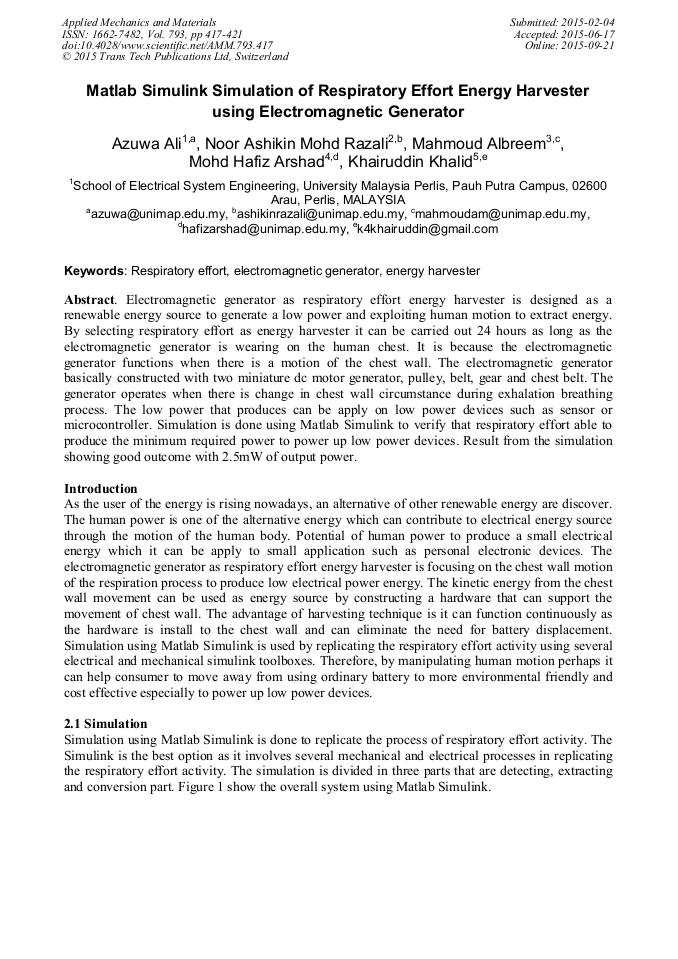

Matlab Simulink Simulation of Respiratory Effort Energy Harvester Using Electromagnetic Generator

Abstract:

Electromagnetic generator as respiratory effort energy harvester is designed as a renewable energy source to generate a low power and exploiting human motion to extract energy. By selecting respiratory effort as energy harvester it can be carried out 24 hours as long as the electromagnetic generator is wearing on the human chest. It is because the electromagnetic generator functions when there is a motion of the chest wall. The electromagnetic generator basically constructed with two miniature dc motor generator, pulley, belt, gear and chest belt. The generator operates when there is change in chest wall circumstance during exhalation breathing process. The low power that produces can be apply on low power devices such as sensor or microcontroller. Simulation is done using Matlab Simulink to verify that respiratory effort able to produce the minimum required power to power up low power devices. Result from the simulation showing good outcome with 2.5mW of output power.

• Periodical: Applied Mechanics and Materials (Volume 793)
• Pages: 417-421
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.793.417
• Online since: September 2015
• Authors: Azuwa Ali*, Noor Ashikin Mohd Razali, Mahmoud Albreem, Mohd Hafiz Arshad, Khairuddin Khalid
• Keywords: Electromagnetic Generator, Energy Harvester, Respiratory Effort

References

[1] Alireza Khaligh, Peng Zeng and Cong Zheng, Kinetic Energy Harvesting Using Piezoelectric and Electromagnetic Technologies- State of Art, IEEE Transaction On Industrial Electronics, Vol. 57, No. 3, March (2010).

DOI: 10.1109/tie.2009.2024652

[2] C.R. Saha, T. O'Donnell, N. Wang, P. McCloskey, Electromagnetic generator for harvesting energy from human motion, Elsevier, Sensor and actuator, September (2008).

[3] Bryson Padasdao, and Olga Boric-Lubecke , Respiratory Rate Detection Using a Wearable Electromagnetic Generator, 33rd Annual International Conference of the IEEE EMBS, Boston, Massachusetts USA, August 30 - September 3, (2011).

DOI: 10.1109/iembs.2011.6090875

[4] Dan Dai, Jing Liu, Hip-mounted electromagnetic generator to harvest energy from human motion, Frontiers in Energy June 2014, Volume 8, Issue 2, pp.173-181.

DOI: 10.1007/s11708-014-0301-2

[5] Alireza Khaligh, Peng Zeng and Cong Zheng, Kinetic Energy Harvesting Using Piezoelectric and Electromagnetic Technologies - State of the Art, IEEE Transactions on Industrial Electronics, VOL. 57, NO. 3, March (2010).

DOI: 10.1109/tie.2009.2024652

[6] Chitta Ranjan Saha, Modelling Theory and Applications of the Electromagnetic Vibrational Generator, School of Electrical & Electronic Engineering University of Nottingham, www. intechopen. com.
