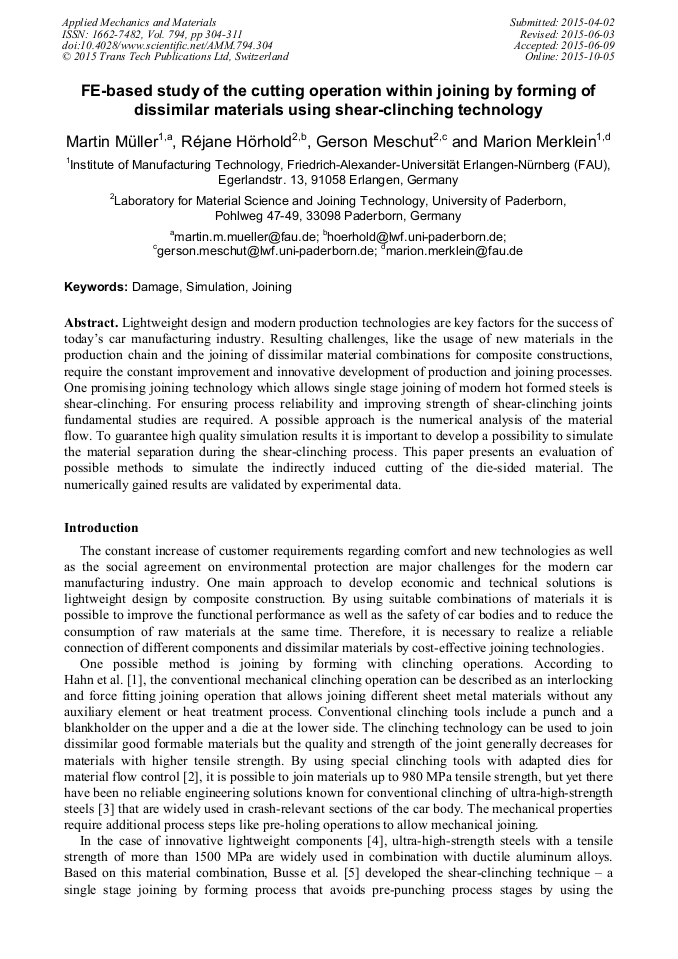

FE-Based Study of the Cutting Operation within Joining by Forming of Dissimilar Materials Using Shear-Clinching Technology

Abstract:

Lightweight design and modern production technologies are key factors for the success of today’s car manufacturing industry. Resulting challenges, like the usage of new materials in the production chain and the joining of dissimilar material combinations for composite constructions, require the constant improvement and innovative development of production and joining processes. One promising joining technology which allows single stage joining of modern hot formed steels is shear-clinching. For ensuring process reliability and improving strength of shear-clinching joints fundamental studies are required. A possible approach is the numerical analysis of the material flow. To guarantee high quality simulation results it is important to develop a possibility to simulate the material separation during the shear-clinching process. This paper presents an evaluation of possible methods to simulate the indirectly induced cutting of the die-sided material. The numerically gained results are validated by experimental data.

• Periodical: Applied Mechanics and Materials (Volume 794)
• Pages: 304-311
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.794.304
• Online since: October 2015
• Authors: Martin Müller*, Réjane Hörhold, Gerson Meschut, Marion Merklein
• Keywords: Damage, Joining, Simulation

References

[1] O. Hahn, U. Klemens: Fügen durch Umformen: Nieten und Durchsetzfügen – Innovative Verbindungsverfahren für die Praxis, Dokumentation 707 (1996).

[2] Y. Abea, T. Katob, K. -I. Moria, S. Nishinoa: Mechanical clinching of ultra-high strength steel sheets and strength of joints, Journal of Materials Processing Technology 214-10 (2014), 2112-2118.

DOI: 10.1016/j.jmatprotec.2014.03.003

[3] M. Lai, R. Brun, Latest Developments in Sheet Metal Forming Technology and Materials for Automotive Application: the Use of Ultra High Strength Steels at Fiat to Reach Weight Reduction at Sustainable Costs, Key Engineering Materials 344 (2007).

DOI: 10.4028/www.scientific.net/kem.344.1

[4] M. Kleiner, M. Geiger, A. Klaus: Manufacturing of Lightweight Components by Metal Forming, CIRP Annals - Manufacturing Technology 52-2 (2003), 521-542.

DOI: 10.1016/s0007-8506(07)60202-9

[5] S. Busse, M. Merklein, K. Roll: Development of a Mechanical Joining Process for Automotive Body-In-White Production, International Journal of Material Forming 3 (2010), 1059-1062.

DOI: 10.1007/s12289-010-0953-3

[6] M. Müller, R. Hörhold, M. Merklein, G. Meschut: Analysis of material behaviour in experimental and simulative setup of joining by forming of aluminium alloy and high strength steel with shear-clinching technology, Advanced Material Research 966-967(2014).

DOI: 10.4028/www.scientific.net/amr.966-967.549

[7] M. Müller, U. Vierzigmann, R. Hörhold, G. Meschut, M. Merklein: Development of a testing method for the identification of friction coefficients for numerical modeling of the shear-clinching process, Key Engineering Materials 639 (2015), 469-476.

DOI: 10.4028/www.scientific.net/kem.639.469

[8] M. G. Cockcroft, D. J. Latham: Ductility and the Workability of Metals, Journal of the Institute of Metals 96 (1968), 33-39.
