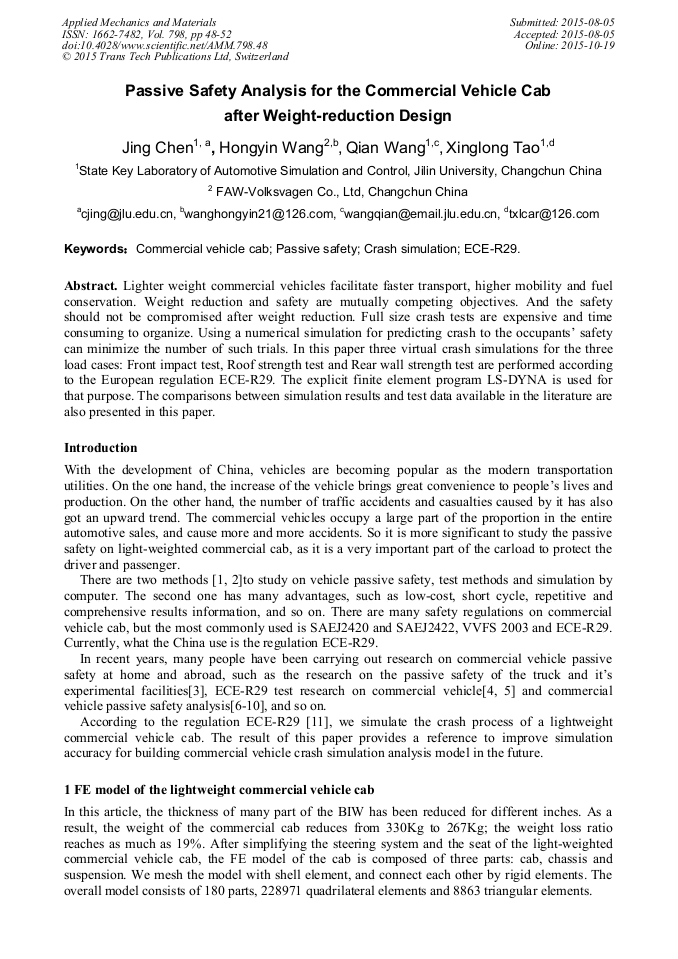

Passive Safety Analysis for the Commercial Vehicle Cab after Weight-Reduction Design

Abstract:

Lighter weight commercial vehicles facilitate faster transport, higher mobility and fuel conservation. Weight reduction and safety are mutually competing objectives. And the safety should not be compromised after weight reduction. Full size crash tests are expensive and time consuming to organize. Using a numerical simulation for predicting crash to the occupants’ safety can minimize the number of such trials. In this paper three virtual crash simulations for the three load cases: Front impact test, Roof strength test and Rear wall strength test are performed according to the European regulation ECE-R29. The explicit finite element program LS-DYNA is used for that purpose. The comparisons between simulation results and test data available in the literature are also presented in this paper.

• Periodical: Applied Mechanics and Materials (Volume 798)
• Pages: 48-52
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.798.48
• Online since: October 2015
• Authors: Jing Chen, Hong Yin Wang, Qian Wang, Xiong Long Tao
• Keywords: Commercial Vehicle Cab, Crash Simulation, ECE-R29, Passive Safety

References

[1] Fuminobu Inotani, Fem Collision Analysis of Automotive Body Members Reinforced with High Structural Foam[J], SAE paper 2000-01-2731，pp.82-85.

DOI: 10.4271/2000-01-2731

[2] Horst Lanzerath. Crash Simulation of Structural Foam[J], SAE paper 2003-01-0328 , pp.77-80.

[3] Li Sanhong. Research on passive safety and test instrument for truck. Jilin University, Changchun(2005).

[4] Julian Neves Tonioli, I. J. Castro, R. R. Ripoli and M. A. Argentino, Computational Simulation of the ECE R-29 Safety Test[J]. SAE Paper No. 2000-01-3524.

DOI: 10.4271/2000-01-3524

[5] S. K. Patidar, V. Tandon, R. S. Mahajan and S. Raju. Practical Problems in Implementing Commercial Vehicle Cab Occupant Protection Standard ECE R-29[J]. SAE Paper No. 2005-26-041.

DOI: 10.4271/2005-26-041

[6] Song Jingliang. Zhao Ning. etc. Front crash simulation and structure optimization of commercial vehicle. Automotive Technology. Vol. 3. (2007).

[7] Zhao Zijian. Passive safety simulation and improvement design for commercial vehicle. Jilin University. Changchun. (2009).

[8] Horst Raich. Safety Analysis of the New Actros Megaspace Cabin According to ECE-R29/02. 4th European LS-DYNA Users Conference. May (2003).

[9] Nickolasa Vlahopoulos. Energy Finite Element Analysis for Computing the High Frequency Vibration of the Aluminum Testbed Cylinder and Correlating the Results to Test Data. NASA/CR-(2005)-213760.

[10] J. Helsen , L. Cremers , P. Mas , P. Sas Global static and dynamic car body stiffness based on a single experimental modal analysis test. PROCEEDINGS OF ISMA(2010 ).

[11] ECE-R29. Uniform Provision Concerning the Approval of Vehicles with Regard to the Protection of the Occupants of the Cab of a Commercial Vehicle[S].
