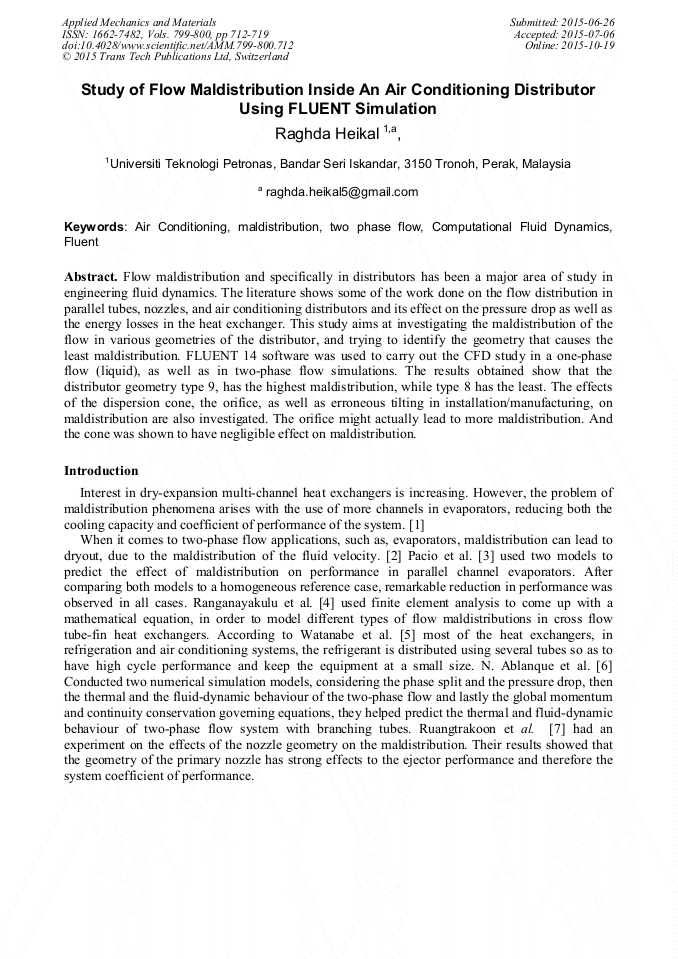

Study of Flow Maldistribution inside an Air Conditioning Distributor Using FLUENT Simulation

Abstract:

Flow maldistribution and specifically in distributors has been a major area of study in engineering fluid dynamics. The literature shows some of the work done on the flow distribution in parallel tubes, nozzles, and air conditioning distributors and its effect on the pressure drop as well as the energy losses in the heat exchanger. This study aims at investigating the maldistribution of the flow in various geometries of the distributor, and trying to identify the geometry that causes the least maldistribution. FLUENT 14 software was used to carry out the CFD study in a one-phase flow (liquid), as well as in two-phase flow simulations. The results obtained show that the distributor geometry type 9, has the highest maldistribution, while type 8 has the least. The effects of the dispersion cone, the orifice, as well as erroneous tilting in installation/manufacturing, on maldistribution are also investigated. The orifice might actually lead to more maldistribution. And the cone was shown to have negligible effect on maldistribution.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 712-719
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.712
• Online since: October 2015
• Authors: Raghda Heikal*
• Keywords: Air Conditioning, Computational Fluid Dynamics, Fluent, Maldistribution, Two Phase Flow

References

[1] Martin Ryhl Kærn, Brian Elmegaard, Analysis of refrigerant mal-distribution in fin-and-tube evaporators, Technical University of Denmark.

[2] N. Ablanque, C. Oliet, J. Rigola, C.D. Pérez-Segarra, A. Oliva, Two-phase flow distribution in multiple parallel tubes, International Journal of Thermal Sciences, vol. 49, pp.909-921, (2010).

DOI: 10.1016/j.ijthermalsci.2009.11.005

[3] Julio C. Pacio, Carlos A. Dorao, A study of the effect of flow maldistribution on heat transfer performance in evaporators, Nuclear Engineering and Design, vol. 240, p.3868–3877, September (2010).

DOI: 10.1016/j.nucengdes.2010.09.004

[4] Ch. Ranganayakulu, K.N. Seetharamu, The combined effects of wall longitudinal heat conduction, inlet fluid flow nonuniformity and temperature nonuniformity in crossflow plate-fin heat exchangers, Int. J. Heat Mass Tran, vol. 42, p.263–273, (1999).

DOI: 10.1016/s0017-9310(98)00156-2

[5] M. Katsuta, K. Nagata M. Watanabe, General characteristics of two-phase flow distribution in a multipass tube, heat transfer, Japanese Research, vol. 24 , no. 1, pp.32-44, (1995).

[6] N. Ablanque, C. Oliet, J. Rigola, C.D. Pérez-Segarra, A. Oliva, , Two-phase flow distribution in multiple parallel tubes, International Journal of Thermal Sciences, vol. 49, pp.909-921, (2010).

DOI: 10.1016/j.ijthermalsci.2009.11.005

[7] Natthawut Ruangtrakoon, Satha Aphornratana, Thanarath Sriveerakul Sirindhorn, Experimental studies of a steam jet refrigeration cycle: Effect of the primary nozzle geometries to system performance, Experimental Thermal and Fluid Science, vol. 35, p.676–683, (2011).

DOI: 10.1016/j.expthermflusci.2011.01.001

[8] Gang Li, Steven Frankel, James E. Braun, and Eckhard A. Groll, APPLICATION OF CFD MODELS TO TWO-PHASE FLOW IN REFRIGERANT DISTRIBUTORS, in International Refrigeration and Air Conditioning Conference.

DOI: 10.1080/10789669.2005.10391125

[9] M. Nakayama, Y. Sumida, S. Hirakuni, A. Mochizuki, Development of a Refrigerant Two-Phase Flow Distributor For a Room Air Conditioner, in International Refrigeration and Air Conditioning, (2000).

[10] Gang Li, James E. Braun, Eckhard A. Groll, Steven Frankel, and Zhichao Wang, EVALUATING THE PERFORMANCE OF REFRIGERANT FLOW DISTRIBUTOR, in International Refrigeration and Air Conditioning, (2002).

[11] M. MOHAMMADI, M. YAGHOUBI AND E. GOSHTASBI RAD, ANALYSIS OF COOLING AIR JACKET AND AIR DISTRIBUTOR IN A CO-CURRENT SPRAY DRYER, Iranian Journal of Science & Technology, vol. Vol. 33, no. B5, pp.371-385, (2009).

[12] M. A. FAY, EFFECT OF CONICAL DISTRIBUTORS ON EVAPORATOR AND SYSTEM PERFORMANCE, MSc Thesis, University of Illinois at Urbana-Champaign, Urbana, Illinois, (2011).

DOI: 10.36501/0197-9191/23-008

[13] Sporlan-Parker, February, Date of access: March 2013 2011. [Online]. Available: http: /sporlanonline. com/literature-and-educational-materials/refrigerant-distributors.

[14] G. Li, A Numerical & Experimental Investigation of Refrigerant Flow Control Devices, MSc Thesis, Purdue University, (2001).

[15] 1. Mayurkumar S. Gandhia, Arijit A. Gangulia, Jyeshtharaj B. Joshia, Pallippattu K. 2. Julio C. Pacio, Carlos A. Dorao, CFD simulation for steam distribution in header and tube assemblies, Chemical engineering research and design, vol. 90 , p.487–506, (2012).

DOI: 10.1016/j.cherd.2011.08.019

[16] P. J. Coeiho, A local grid refinement technique based upon Richardson extrapolation, Appl. Math. Modelling , vol. 21, pp.427-436, July (1997).

DOI: 10.1016/s0307-904x(97)00037-1
