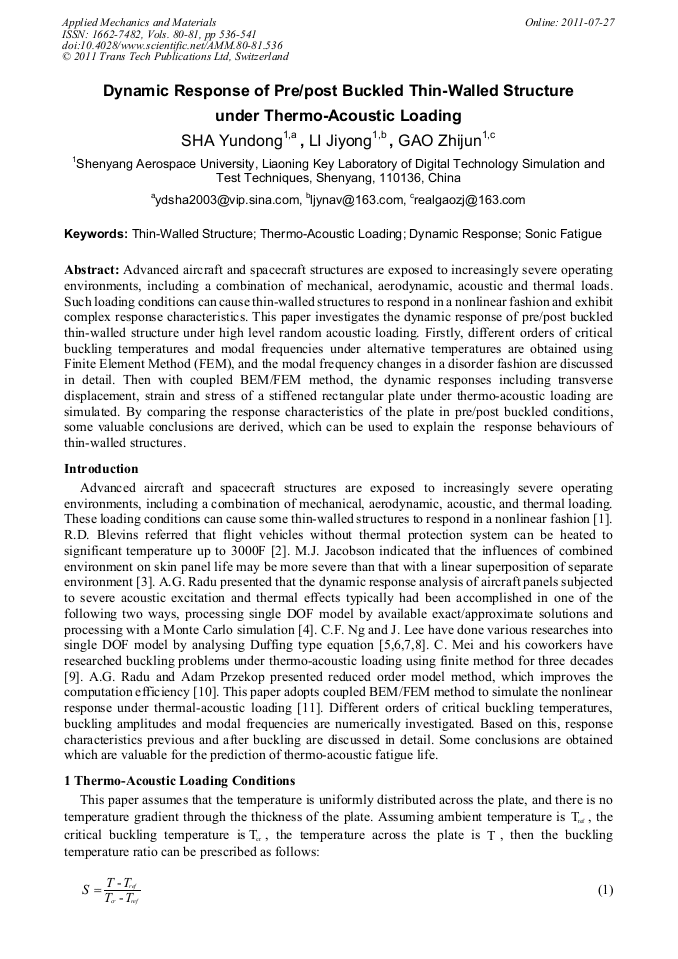

Dynamic Response of Pre/Post Buckled Thin-Walled Structure under Thermo-Acoustic Loading

Abstract:

Advanced aircraft and spacecraft structures are exposed to increasingly severe operating environments, including a combination of mechanical, aerodynamic, acoustic and thermal loads. Such loading conditions can cause thin-walled structures to respond in a nonlinear fashion and exhibit complex response characteristics. This paper investigates the dynamic response of pre/post buckled thin-walled structure under high level random acoustic loading. Firstly, different orders of critical buckling temperatures and modal frequencies under alternative temperatures are obtained using Finite Element Method (FEM), and the modal frequency changes in a disorder fashion are discussed in detail. Then with coupled BEM/FEM method, the dynamic responses including transverse displacement, strain and stress of a stiffened rectangular plate under thermo-acoustic loading are simulated. By comparing the response characteristics of the plate in pre/post buckled conditions, some valuable conclusions are derived, which can be used to explain the response behaviours of thin-walled structures.

• Periodical: Applied Mechanics and Materials (Volumes 80-81)
• Pages: 536-541
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.80-81.536
• Online since: July 2011
• Authors: Yun Dong Sha, Ji Yong Li, Zhi Jun Gao
• Keywords: Dynamic Response, Sonic Fatigue, Thermo-Acoustic Loading, Thin-Walled Structure

References

[1] M.I. McEwan, J.R. Wright, J.E. Cooper, A.Y.T. Leung, A Finite Element/Modal Technique for Nonlinear Plate and Stiffened Panel Response Prediction, C. AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference and Exhibit, 42nd, Seattle, WA, Apr. 16-19, (2001).

DOI: 10.2514/6.2001-1595

[2] R.D. Blevins, I. Holehouse, K.R. Wentz, Thermoacoustic loads and fatigue of hypersonic vehicle skin panels, J. Journal of Aircraft, (1993) Vol. 30 No. 6 971-978.

DOI: 10.2514/3.46441

[3] M.J. Jacobson, Oil Canning of Metallic Panels in Thermal-acoustic environments. C. American Institute of Aeronautics and Astronautics, Aircraft Design, Flight Test and Operations Meeting, 6th, Los Angeles, Calif., Aug 12-14, 1974, 12.

DOI: 10.2514/6.1974-982

[4] A.G. Radu, B. Yang, K. Kim, P. Mignolet, Prediction of the dynamic response and fatigue life of panels subjected to thermo-acoustic loading, C. 45th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics and Materials Conference, Palm Springs, California, Apr. 19-22, (2004).

DOI: 10.2514/6.2004-1557

[5] C.F. Ng, S.A. Clevenson, High Intensity Acoustic Tests of a Thermally Stressed Aluminium Plate in TAFA, NASA Tech Memo 101552, NASA Langley Research Center, Hampton, VA, Feb, 1989 265.

[6] C.F. Ng, K.R. Wentz, The prediction and measurement of thermo-acoustic response of plate structures, R. 31st Structures, Structural Dynamics, and Material Conference, 832-1838, AIAA-90-0988-CP, Long Beach, CA, Apr. 2-4, (1990).

DOI: 10.2514/6.1990-988

[7] C.F. Ng, S.A. Clevenson, High-intensity acoustic tests of a thermally stressed plate, J. Journal of Aircraft, (1991) Vol 28 275-281.

DOI: 10.2514/3.46023

[8] J. Lee, Applicability of the Equivalent Linearization Technique for Thermally Buckled Plate Random Vibration, C. Proceedings of the 36th Structures, Structural Dynamics, and Materials Conference, New Orleans, Louisiana, 1995 1272-1279.

DOI: 10.2514/6.1995-1304

[9] C. Mei, Large Deflection Multimode Response of Clamped Rectangular Panels to Acoustic Excitation, Wright-Patterson AirForce Base, Ohio, J. AFWAL-TR-83_3121, Vol. I, December (1983).

DOI: 10.21236/ada139622

[10] Adam Przekop, S.A. Rizzi, Dynamic Snap-Through of Thin-Walled Structures by a Reduced Order Method, C. 47th AIAA/ASME/ASCE/AHS/ASC Structures, Structural Dynamics, and Materials Conference 1-4 May 2006, Newport, Rhode Island.

DOI: 10.2514/6.2006-1745

[11] Sha Yundong, Guo Xiaopeng, Zhang Jun, Research on the random sonic fatigue life estimation of a combustor liner structure. C. The Fifth International Conference on Vibration Engineering and Technology of Machinery，Huazhong University of Science and Technology, Wuhan, P.R. China， August, 27-28, (2009).

[12] S. Pate. Carl, C. Mei, Uday Shirahatti, Coupled Boundary/Finite Element methods for Random Structural-Acoustic Interaction Problems, N. AIAA-95-1346-CP.
