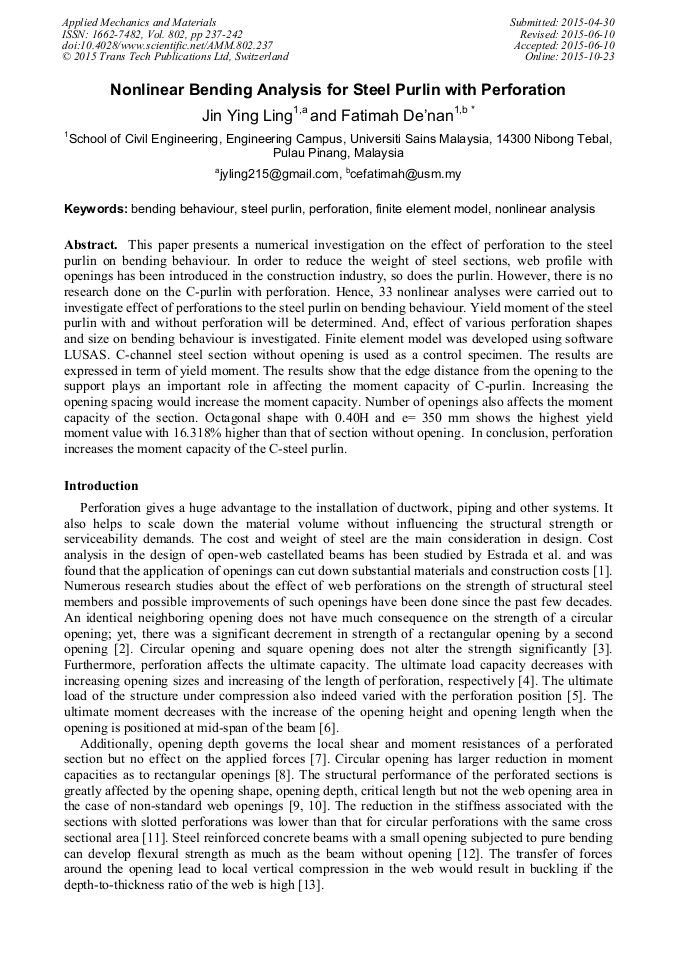

Nonlinear Bending Analysis for Steel Purlin with Perforation

Abstract:

This paper presents a numerical investigation on the effect of perforation to the steel purlin on bending behaviour. In order to reduce the weight of steel sections, web profile with openings has been introduced in the construction industry, so does the purlin. However, there is no research done on the C-purlin with perforation. Hence, 33 nonlinear analyses were carried out to investigate effect of perforations to the steel purlin on bending behaviour. Yield moment of the steel purlin with and without perforation will be determined. And, effect of various perforation shapes and size on bending behaviour is investigated. Finite element model was developed using software LUSAS. C-channel steel section without opening is used as a control specimen. The results are expressed in term of yield moment. The results show that the edge distance from the opening to the support plays an important role in affecting the moment capacity of C-purlin. Increasing the opening spacing would increase the moment capacity. Number of openings also affects the moment capacity of the section. Octagonal shape with 0.40H and e= 350 mm shows the highest yield moment value with 16.318% higher than that of section without opening. In conclusion, perforation increases the moment capacity of the C-steel purlin.

• Periodical: Applied Mechanics and Materials (Volume 802)
• Pages: 237-242
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.802.237
• Online since: October 2015
• Authors: Jin Ying Ling, Fatimah De’nan*
• Keywords: Bending Behaviour, Finite Element Model, Nonlinear Analysis, Perforation, Steel Purlin

References

[1] H. Estrada, J. Jimenez, F. Aguíñiga, Cost analysis in the design of open-web castellated beams, in: Proceedings of the 2006 Architectural Engineering National Conference, (2006).

DOI: 10.1061/40798(190)53

[2] R.G. Redwood, J.O. McCutcheon, Beam tests with unreinforced web openings, Journal of the Structural Division, (1968).

DOI: 10.1061/jsdeag.0001843

[3] K. Sivakumaran, Some studies on cold-formed steel sections with web openings, 9th International Specialty Conference on Cold-Formed Steel Structures, (1988) 513 - 527.

[4] M. -Y. Shan, R.A. LaBoube, W. -w. Yu, Behavior of web elements with openings subjected to bending, shear and the combination of bending and shear, in, Missouri S&T (formerly the University of Missouri-Rolla), (1994).

DOI: 10.1061/(asce)0733-9445(1996)122:8(854)

[5] M. Kulatunga, M. Macdonald, Investigation of cold-formed steel structural members with perforations of different arrangements subjected to compression loading, Thin-Walled Structures, 67 (2013) 78-87.

DOI: 10.1016/j.tws.2013.02.014

[6] E.H. FahmyA, A.A. HassaneinB, Analysis of composite beams with web opening, 4th Structural Specialty Conference of the Canadian Society for Civil Engineering, Montréal, Québec, Canada, (2002) 1 - 10.

[7] T. Liu, K. Chung, Steel beams with large web openings of various shapes and sizes: finite element investigation, Journal of Constructional Steel Research, 59 (2003) 1159-1176.

DOI: 10.1016/s0143-974x(03)00030-0

[8] K. Sivakumaran, M.Y. Ng, S.R. Fox, Flexural strength of cold-formed steel joists with reinforced web openings, Canadian Journal of Civil Engineering, 33 (2006) 1195-1208.

DOI: 10.1139/l06-064

[9] K. Tsavdaridis, C. D Mello, Finite element investigation of perforated steel beams with different web opening configurations, in: ICASS'09/IJSSD-Proceedings of Sixth International Conference on Advances in Steel Structures and Progress in Structural Stability and Dynamics, ICASS'09 Press, 2009, pp.213-220.

[10] K.D. Tsavdaridis, C. D'Mello, Vierendeel bending study of perforated steel beams with various novel web opening shapes through nonlinear finite-element analyses, Journal of Structural Engineering, 138 (2012) 1214-1230.

DOI: 10.1061/(asce)st.1943-541x.0000562

[11] M. Kulatunga, M. Macdonald, J. Rhodes, D. Harrison, Load capacity of cold-formed column members of lipped channel cross-section with perforations subjected to compression loading–Part I: FE simulation and test results, Thin-Walled Structures, 80 (2014).

DOI: 10.1016/j.tws.2014.02.017

[12] C. -C. Chen, C. -Y. Li, M. -C. Kuo, Experimental study of steel reinforced concrete beams with web openings, in, The 14th World Conference on Earthquake Engineering, Beijing, China, October 12-17, (2008).

[13] N.D. Lagaros, L.D. Psarras, M. Papadrakakis, G. Panagiotou, Optimum design of steel structures with web openings, Engineering Structures, 30 (2008) 2528-2537.

DOI: 10.1016/j.engstruct.2008.02.002

[14] K. Chung, R. Lawson, Simplified design of composite beams with large web openings to Eurocode 4, Journal of Constructional Steel Research, 57 (2001) 135-164.

DOI: 10.1016/s0143-974x(00)00011-0
