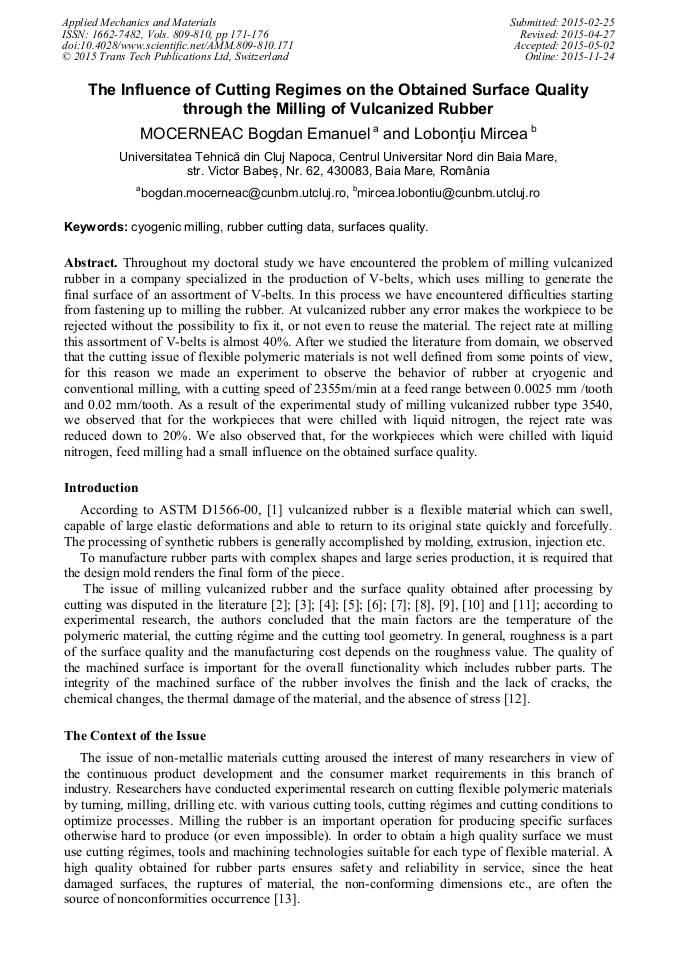

The Influence of Cutting Regimes on the Obtained Surface Quality through the Milling of Vulcanized Rubber

Abstract:

Throughout my doctoral study I have encountered the problem of milling vulcanized rubber in a company specialized in the production of V-belts, which uses milling to generate the final surface of an assortment of V-belts. In this process I have encountered difficulties starting from fastening up to milling the rubber. At vulcanized rubber any error makes the workpiece to be rejected without the possibility to fix it, or not even to reuse the material. The reject rate at milling this assortment of V-belts is almost 40%. After we studied the literature from domain, we observed that the cutting issue of flexible polymeric materials is not well defined from some points of view, for this reason we made an experiment to observe the behavior of rubber at cryogenic and conventional milling, with a cutting speed of 2355m/min at a feed range between 0.0025 mm /tooth and 0.02 mm/tooth. As a result of the experimental study of milling vulcanized rubber type 3540, we observed that for the workpieces that were cooled with liquid nitrogen, the reject rate was reduced down to 20%. We also observed that, for the workpieces which were cooled with liquid nitrogen, feed milling had a small influence on the obtained surface quality.

• Periodical: Applied Mechanics and Materials (Volumes 809-810)
• Pages: 171-176
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.809-810.171
• Online since: November 2015
• Authors: Bogdan Emanuel Mocerneac*, Mircea Lobonțiu
• Keywords: Cryogenic Milling, Rubber Cutting Data, Surfaces Quality

References

[1] ASTM-D1566-00, American Society for Testing of Materials, in Standard Terminology Relating to Rubber, (2000).

[2] M. Jin, and M. Murakawa, High-speed milling of rubber (1st Report)-Fundamental experiments and considerations for improvement of work accuracy. Japan Society for Precision Engineering Journal. 64 (1998) 897-901.

DOI: 10.2493/jjspe.64.897

[3] M.A. Lewis, End milling of elastomers, NCSU Master Thesis, (2002).

[4] A. Rivera-Moreno, et al., Influence of CO2 cooling on the ortogonal cutting of elastomers, Ingenieria mecanica, Tecnologia y desarrollo. 4, 5 (2013) 177-183.

[5] R. Nayak, R. Shetty, S. Shetty, Experimental and Finite Element Analysis on Chip Formation Mechanism in Machining of Elastomers. Bonfring International Journal of Industrial Engineering and Management Science. 2, 2 (2012) 10-13.

DOI: 10.9756/bijiems.1291

[6] Y. Kakinuma, S. Kidani, T. Aoyama, Ultra-precision cryogenic machining of viscoelastic polymers. CIRP Annals-Manufacturing Technology. 61, 1 (2012) 79-82.

DOI: 10.1016/j.cirp.2012.03.039

[7] K. Mishima, Y. Kakinuma, T. Aoyama, Pre-deformation-assisted cryogenic micromachining for fabrication of three-dimensional unique micro channels. Journal of Advanced Mechanical Design, Systems, and Manufacturing. 4, 5 (2010) 936-947.

DOI: 10.1299/jamdsm.4.936

[8] Y. Kakinuma, N. Yasuda, and T. Aoyama, Micromachining of soft polymer material applying cryogenic cooling. Journal of Advanced Mechanical Design, Systems, and Manufacturing. 2, 4 (2008) 560-569.

DOI: 10.1299/jamdsm.2.560

[9] C. Friedrich, Near-cryogenic machining of polymethyl methacrylate for micromilling tool development. Materials and Manufacturing Processes. 15, 5 (2000) 667-678.

DOI: 10.1080/10426910008913012

[10] J. Yan, A numerical and experimental investigation of the machinability of elastomers, NCSU Dissertation, (2006).

[11] R. Nayak, R. Shetty, Cutting force and surface roughness in cryogenic Machining of elastomer. International Journal Of Mechanical Engineering and Technology. 5, 9 (2014) 151-156.

[12] J. Luo, Machining of Elastomers, The University of Michigan, (2005).

[13] M. Shaw, Metal Cutting Principles, Oxford Series on Advanced Manufacturing. Publ. Oxford University Press, New York, (2005).

[14] M. Cosma, Experimental studies on influence of tool path in 3-axes bnem on inclined surfaces at 45 degrees. Academic Journal of Manufacturing Engineering. 9, 4 (2011) 30-35.

[15] J. Antony, Design of experiments for engineers and scientists, Elsevier, (2014).

[16] C.E. Ophardt, Virtual chembook. Department of Chemistry, Elmhurst College, (2003).

[17] D.A. Stephenson, J.S. Agapiou, Metal cutting theory and practice, CRC press, (2005).

[18] B. Mocerneac, M. Lobonțiu, Aspects regarding the comparative study of the cryogenic and conventional milling of vulcanized rubber, in the proceedings of the International Conference on the Carpathian Euro-Region's Specialists in Industrial Systems, Baia Mare, 2014, pp.51-56.

[19] A.J. Shih, et al., End milling of elastomers-fixture design and tool effectiveness for material removal. Journal of Manufacturing Science and Engineering. 126, 1 (2004) 115-123.

DOI: 10.1115/1.1616951
