SMA in Mitigation of Extreme Loads in Civil Engineering: Study of their Application in a Realistic Steel Portico

Abstract:

Guaranteeing the use of Shape Memory Alloys (SMA) in mitigation of extreme load effects requires a deep study of the SMA behavior according to the specific requirements of the applications in damping. The damper was defined according the expected requirements (length of SMA and number of SMA wires). It is applied to two types of alloys (CuAlBe and NiTi) in the diagonals of a realistic steel portico (2.47 m x 4.10 m). The measurements establish that the used SMA reduces the oscillation amplitude to a less than a half.

You might also be interested in these eBooks

Performance, Protection and Strengthening of Structures under Extreme Loading

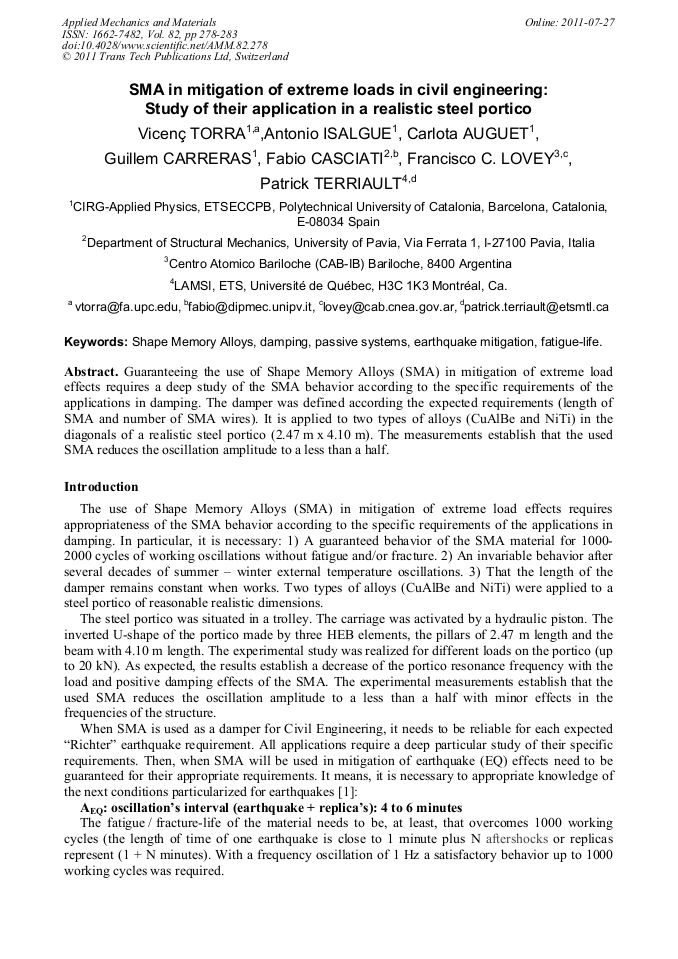

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 82)

Pages:

278-283

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.82.278

Citation:

Cite this paper

Online since:

July 2011

Authors:

Vicenç Torra, Antonio Isalgue, Carlota Auguet, Guillem Carreras, Fabio Casciati, Francisco C. Lovey, Patrick Terriault

Keywords:

Damping, Earthquake Mitigation, Fatigue Life, Passive Systems, Shape Memory Alloy Actuator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] V. Torra, A. Isalgue, F. Martorell, F. C. Lovey and Patrick Terriault, "Damping in Civil Engineering using SMA. Part I: Particular Properties of CuAlBe for Damping of Family Houses": Can. Metall. Quart., Vol. 49(2), (2010), pp.179-190

DOI: 10.1179/cmq.2010.49.2.179

Google Scholar

[2] A. Isalgue, V. Torra, G. Carreras, C. Auguet and F.C. Lovey, "SMA smart materials (CuAlBe and NiTi) for use in damping: the implications of reliability for long time applications and aging behavior": Proceedings of the Smart Structural Systems Technologies (S(3)T2010), Porto, Portugal, 6-9 April 2010, pp.471-481. ISBN: 978-989-96697-0-3

DOI: 10.1142/s1793604712500087

Google Scholar

[3] Y.F. Zhang, J.A. Camilleri and S.Y. Zhu, "Mechanical properties of superelastic Cu-Al-Be wires at cold temperatures for the seismic protection of bridges": Smart Materials & Structures Vol. 17 (2) (2008), Article Number: 025008

DOI: 10.1088/0964-1726/17/2/025008

Google Scholar

[4] A. Isalgue, V. Torra, A. Yawny and F.C. Lovey,"Metastable effects on martensitic transformation in SMA Part VI. The Clausius–Clapeyron relationship": J. Therm. Anal. Calorim. Vol. 91 (3) (2008), p.991–998

DOI: 10.1007/s10973-007-8604-8

Google Scholar

[5] G. Carreras, A. Isalgue, V. Torra, F. C. Lovey and H. Soul, "Metastable effects on martensitic transformation in SMA Part V. Fatigue-life and detailed hysteresis behavior in NiTi and Cu-based alloy": J. Therm. Anal. Calorim. Vol. 91 (2) (2007), pp.575-579

DOI: 10.1007/s10973-007-8600-z

Google Scholar

[6] V. Torra, A. Isalgue, C. Auguet, G. Carreras, F.C. Lovey, P. Terriault, "Damping in Civil Engineering using SMA. Part II. Particular properties of NiTi for damping of stayed cables in bridges": submitted to Can. Metall. Quart. (2010)

DOI: 10.1179/1879139512y.0000000036

Google Scholar
