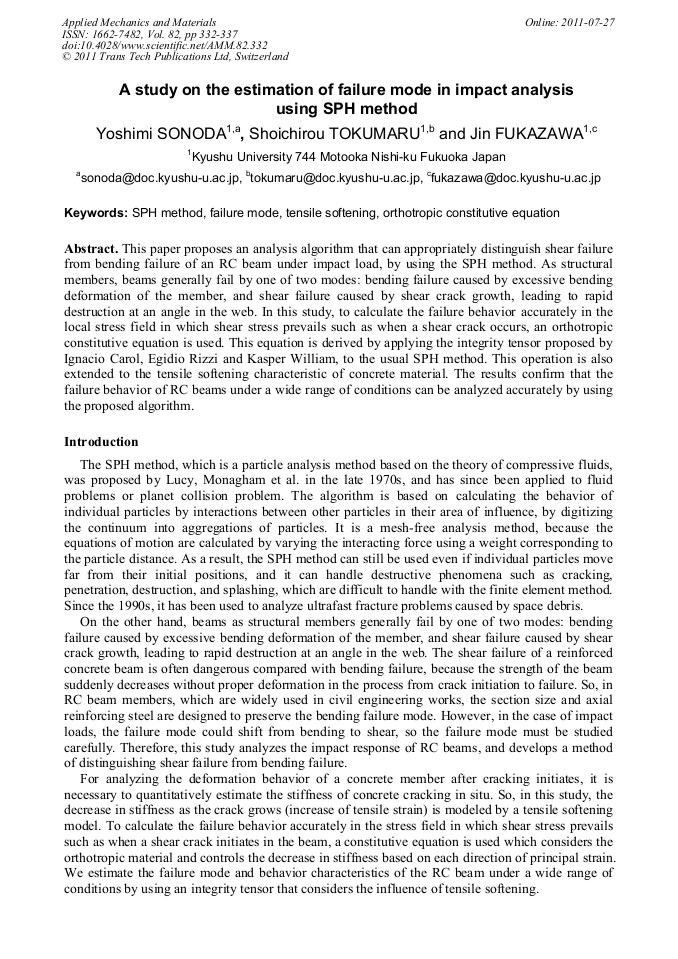

A Study on the Estimation of Failure Mode in Impact Analysis Using SPH Method

Abstract:

This paper proposes an analysis algorithm that can appropriately distinguish shear failure from bending failure of an RC beam under impact load, by using the SPH method. As structural members, beams generally fail by one of two modes: bending failure caused by excessive bending deformation of the member, and shear failure caused by shear crack growth, leading to rapid destruction at an angle in the web. In this study, to calculate the failure behavior accurately in the local stress field in which shear stress prevails such as when a shear crack occurs, an orthotropic constitutive equation is used. This equation is derived by applying the integrity tensor proposed by Ignacio Carol, Egidio Rizzi and Kasper William, to the usual SPH method. This operation is also extended to the tensile softening characteristic of concrete material. The results confirm that the failure behavior of RC beams under a wide range of conditions can be analyzed accurately by using the proposed algorithm.

• Periodical: Applied Mechanics and Materials (Volume 82)
• Pages: 332-337
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.82.332
• Online since: July 2011
• Authors: Yoshimi Sonoda, Shoichirou Tokumaru, Jin Fukazawa
• Keywords: Failure Mode, Orthotropic Constitutive Equation, SPH Method, Tensile Softening

References

[1] Japan Society of Civil Engineering, Basic and Application of Impact Experiments and Analyses, Structural Engineering Series15, Maruzen, (2004)

[2] T.Kishi, H.Mikami, M.Komuro, K.Matsuoka, Adaptability of Elasto-plastic Impact Response Analyses to RC Beam, Structural Engineering Collected Papers, Vol.43A, pp.1579-1588, 1997.3

[3] G.R. Liu and M.B. Liu : Smoothed Particle Hydrodynamics, 2003.

[4] J.Fukazawa and Y.Sonoda : A fundamental study on the SPH method applicability for RC beam elastic-plastic analysis, Journal of Structural Engineering Vol.55A，pp.1358-1365，2009.3

[5] Y.Sakai, A.Yamasita : Study on the Fundamental Characteristics of Structural Analysis by Particle Method based on SPH, Journal of Japan Society of Mechanical Engineering, Vol.67, No.659, 2001.7

[6] Y.Sakai : Large Deformation Elastic-Plastic Analysis by SPH method, Journal of Computational Engineering and Science, Vol.13, pp.481-484, 2008.5

[7] J.Fukazawa, Y.Sonoda and K.Gotou : A study on the estimation of RC member's failure mode using ASPH impact analysis, Proceedings of the 10th Symposium on Impact Problems in Civil Engineering, pp.53-58, 2010.12

[8] I.Carol, Egidio Rizzi and Kasper William : On the formulation of anisotropic elastic degradation. I. Theory based on a pseudo-logarithmic damage tensor rate, International journal of solid and structures 38, 491-518, 2001.

DOI: 10.1016/s0020-7683(00)00030-5
