Dynamics of Simple Gearing Model with Flexible Planetary Pins

Abstract:

The influence of flexible pins of planet gears on the dynamic properties of planetary gearing box is investigated by means of a general analysis with some alternative values of parameters. For discovering of basic dynamic behaviour of planetary gear system the simplest planetary gear set with neglected compliance of teeth contacts, fixed axes of central sun wheel and fixed planetary carrier, etc is used One mode of free vibration with eigenfrequency Ω proportional to and zero frequency mode Ω→0 corresponding to the rotation with constant angular velocity were analysed. Forced vibrations, analysed by means of response curves, were oriented on ascertaining of influence of driving aggregate characteristic on frequency spectrum of the whole set.

You might also be interested in these eBooks

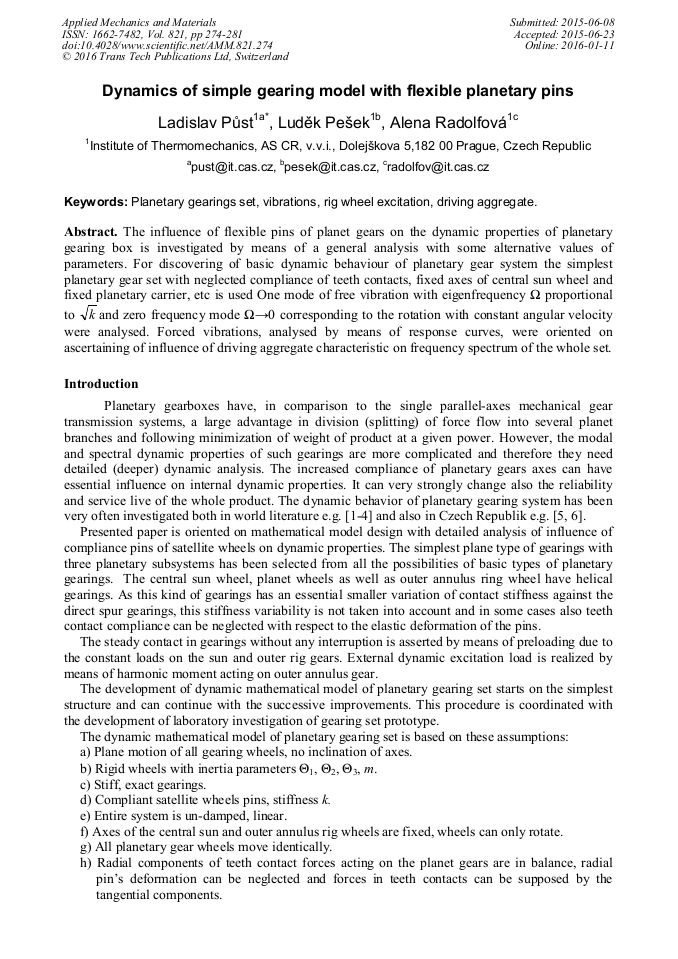

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 821)

Pages:

274-281

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.821.274

Citation:

Cite this paper

Online since:

January 2016

Authors:

Ladislav Půst*, Luděk Pešek, Alena Radolfová

Keywords:

Driving Aggregate, Planetary Gearings Set, Rig Wheel Excitation, Vibrations

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D.D. Ji, Z.M. Song, J. Yhang, Dynamics in the Gear Train set in Wind Turbine, Material Science Forum, 697 (2012) 701-705.

DOI: 10.4028/www.scientific.net/msf.697-698.701

Google Scholar

[2] P. Velex, A. Saada, A Model for the Dynamic Behaviour of Multistage Geared System, Proc. 8th World Congress on TMM, Prague, 2 (1991) 621-624.

Google Scholar

[3] A. Hedman, A Matrix Based Method to Analyse Mechanical Transmissions, Proc. 7th World Congress on TMM, Sevilla, 3 (1987) 1415-1420.

Google Scholar

[4] S. Yanabe, M. Yoshino, Self-centring Characteristics of Flouting Sun Gear in a Star-type Planetary Gear Train, Proc. 9th World Congress on TMM, Oulu, 6 (1999) 2386-2391.

Google Scholar

[5] L. Pust, L. Pesek, A. Radolfova, Dynamics of Simple Planet Gearing Model, Proc. Engineering Mechanics 2015, Svratka, (2015), 246-247.

Google Scholar

[6] M. Hortel, A. Skuderova, Nonlinear Time Heteronymous Damping in Nonlinear Parametric Planetary Systems, Acta Mechanica, 225, 7, (2014) 2059-(2073).

DOI: 10.1007/s00707-013-1041-9

Google Scholar
