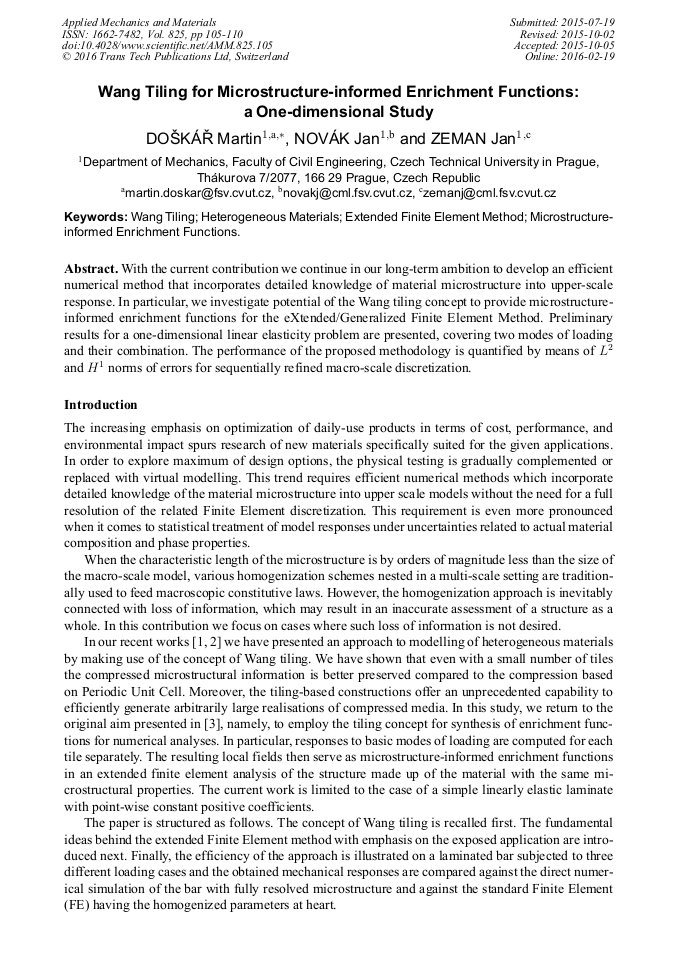

Wang Tiling for Microstructure-Informed Enrichment Functions: A One-Dimensional Study

Abstract:

With the current contribution we continue in our long-term ambition to develop an efficient numerical method that incorporates detailed knowledge of material microstructure into upper-scale response. In particular, we investigate potential of the Wang tiling concept to provide microstructure-informed enrichment functions for the eXtended/Generalized Finite Element Method. Preliminary results for a one-dimensional linear elasticity problem are presented, covering two modes of loading and their combination. The performance of the proposed methodology is quantified by means of $L^2$ and $H^1$ norms of errors for sequentially refined macro-scale discretization.

You might also be interested in these eBooks

Modern Methods of Experimental and Computational Investigations in Area of Construction

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 825)

Pages:

105-110

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.825.105

Citation:

Cite this paper

Online since:

February 2016

Authors:

Martin Doškář*, Jan Novák, Jan Zeman

Keywords:

Extended Finite Element Method, Heterogeneous Materials, Microstructure-Informed Enrichment Functions, Wang Tilings

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. Novák, A. Kučerová, J. Zeman, Compressing random microstructures via stochastic Wang tilings, Phys. Rev. E 84 (2012) 040104.

DOI: 10.1103/physreve.86.040104

Google Scholar

[2] M. Doškář, J. Novák, J. Zeman, Aperiodic compression and reconstruction of real-world material systems based on Wang tiles, Phys. Rev. E 90 (2014) 062118.

DOI: 10.1103/physreve.90.062118

Google Scholar

[3] J. Novák, A. Kučerová, J. Zeman, Microstructural enrichment functions based on stochastic Wang tilings, Model. Simul. Mater. Sci. Eng. 21 (2013) 025014.

DOI: 10.1088/0965-0393/21/2/025014

Google Scholar

[4] H. Wang, Proving Theorems by Pattern Recognition - II, Bell Syst. Tech. J. 40 (1961) 1-41.

Google Scholar

[5] K. Culik II, An aperiodic set of 13 Wang tiles, Discret. Math. 160 (1996) 245-251.

DOI: 10.1016/s0012-365x(96)00118-5

Google Scholar

[6] M. F. Cohen, J. Shade, S. Hiller, O. Deussen, Wang Tiles for image and texture generation, ACM T. Graphic. 22 (2003) 287-294.

DOI: 10.1145/882262.882265

Google Scholar

[7] T. Belytschko, R. Gracie, G. Ventura, A review of extended/generalized finite element methods for material modeling, Model. Simul. Mater. Sci. Eng. 17 (2009) 043001.

DOI: 10.1088/0965-0393/17/4/043001

Google Scholar
