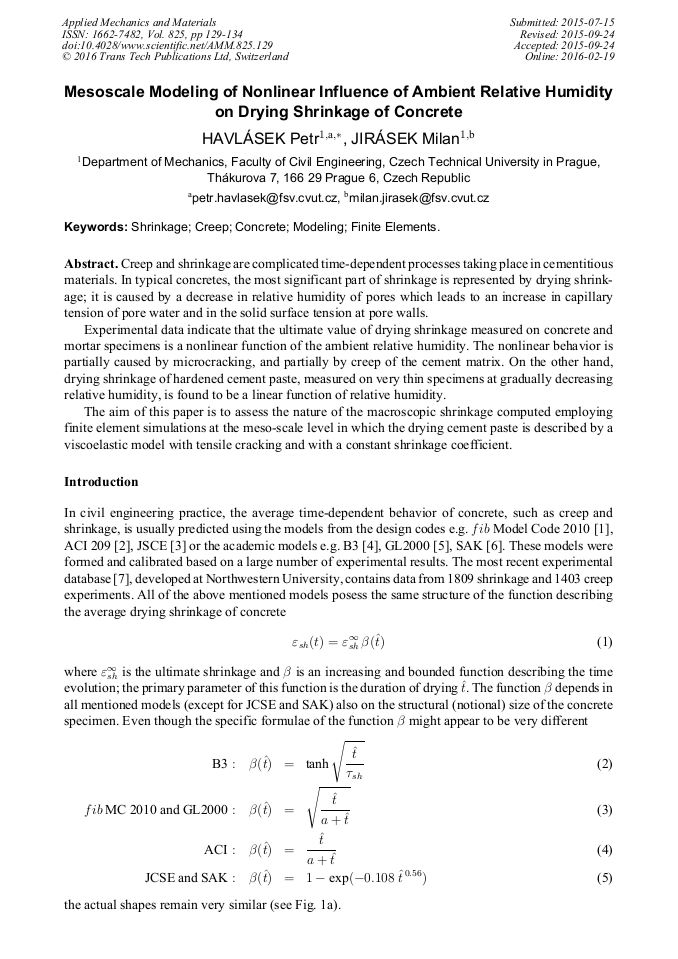

Mesoscale Modeling of Nonlinear Influence of Ambient Relative Humidity on Drying Shrinkage of Concrete

Abstract:

Creep and shrinkage are complicated time-dependent processes taking place in cementitious materials. In typical concretes, the most significant part of shrinkage is represented by drying shrinkage; it is caused by a decrease in relative humidity of pores which leads to an increase in capillary tension of pore water and in the solid surface tension at pore walls.Experimental data indicate that the ultimate value of drying shrinkage measured on concrete and mortar specimens is a nonlinear function of the ambient relative humidity. The nonlinear behavior is partially caused by microcracking, and partially by creep of the cement matrix. On the other hand, drying shrinkage of hardened cement paste, measured on very thin specimens at gradually decreasing relative humidity, is found to be a linear function of relative humidity.The aim of this paper is to assess the nature of the macroscopic shrinkage computed employing finite element simulations at the meso-scale level in which the drying cement paste is described by a viscoelastic model with tensile cracking and with a constant shrinkage coefficient.

• Periodical: Applied Mechanics and Materials (Volume 825)
• Pages: 129-134
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.825.129
• Online since: February 2016
• Authors: Petr Havlásek*, Milan Jirásek
• Keywords: Concrete, Creep, Finite Elements, Modeling, Shrinkage

References

[1] Fédération Internationale du Béton, Model Code for Concrete Structures 2010, Ernst & Sohn, Berlin, (2013).

[2] ACI 209, Guide for Modeling and Calculating Shrinkage and Creep in Hardened Concrete, American Concrete Institute, (2008).

[3] Japan Society of Civil Engineers, Standard Specifications for Concrete Structures - 2007 Design, JSCE, (2010).

[4] Z. P. Bažant, S. Baweja, Creep and shrinkage prediction model for analysis and design of concrete structures: Model B3, in: Adam Neville Symposium: Creep and Shrinkage - Structural Design Effects, (2000).

DOI: 10.14359/9890

[5] N. J. Gardner, Comparison and prediction provisions for drying shrinkage and creep of normalstrength concretes, Canadian Journal for Civil Engineering 31 (2004) 767-775.

DOI: 10.1139/l04-046

[6] K. Sakata, Prediction of concrete creep and shrinkage, Creep and Shrinkage of Concrete 31 (2004) 767-775.

[7] M. H. Hubler, R. Wendner, Z. P. Bažant, Comprehensive database for concrete creep and shrinkage: Analysis and recommendations for testing and recording, ACI Materials Journal, in press (2015).

DOI: 10.14359/51687453

[8] O. Z. Cebeci, S. I. Al-Noury, W.H. Mirza, Strength and drying shrinkage of masonry mortars in various temperature-humidity environments, Cement and Concrete Research 19 (1989) 53-62.

DOI: 10.1016/0008-8846(89)90065-3

[9] V. Baroghel-Bouny, M. Mainguy, T. Lassabatere, O. Coussy, Characterization and identification of equilibrium and transfer moisture properties for ordinary and high-performance cementitious materials, Cement and Concrete Research 29 (1999).

DOI: 10.1016/s0008-8846(99)00102-7

[10] T. Rougelot, F. Skoczylas, N. Burlion, Water desorption and shrinkage in mortars and cement pastes: Experimental study and poromechanical model, Cement and Concrete Research 39 (2009) 36-44.

DOI: 10.1016/j.cemconres.2008.10.005

[11] B. Patzák, OOFEM - an object-oriented simulation tool for advanced modeling of materials and structures, Acta Polytechnica 52 (2012) 59-66.

DOI: 10.14311/1678

[12] Information on http: /ksm. fsv. cvut. cz/ dr/t3d. html.

[13] Z. P. Bažant, L. J. Najjar, Nonlinear water diffusion in nonsaturated concrete, Materials and Structures 5 (1972) 3-20.

[14] Z. P. Bažant, A. P. Hauggaard, S. Baweja, F. J. Ulm, Microprestress solidification theory for concrete creep. I: Aging and drying effects, Journal of Engineering Mechanics 123 (1997) 1188- 1194.

DOI: 10.1061/(asce)0733-9399(1997)123:11(1188)

[15] M. Jirásek, P. Havlásek, P., Microprestress-solidification theory of concrete creep: Reformulation and improvement, Cement and Concrete Research 60 (2014) 51-62.

DOI: 10.1016/j.cemconres.2014.03.008

[16] Z. P. Bažant, P. Havlásek, M. Jirásek, Microprestress-solidification theory: Modeling of size effect on drying creep, in: N. Bicanic, H. Mang, G. Meschke, R. de Borst (Eds. ), EURO-C 2014, Computational Modelling of Concrete Structures, CRC Press/Balkema, EH Leiden, The Netherlands, 2014, pp.749-758.

DOI: 10.1201/b16645-84

[17] P. Havlásek, Creep and Shrinkage of Concrete Subjected to Variable Environmental Conditions, PhD. Thesis, Czech Technical University in Prague (2014).
