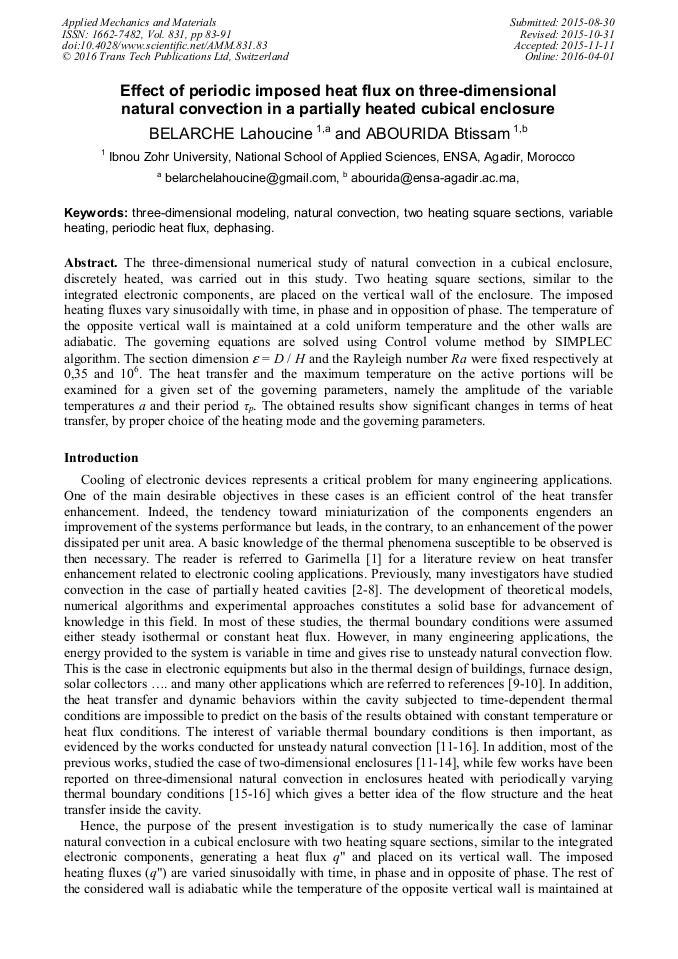

Effect of Periodic Imposed Heat Flux on Three-Dimensional Natural Convection in a Partially Heated Cubical Enclosure

Abstract:

The three-dimensional numerical study of natural convection in a cubical enclosure, discretely heated, was carried out in this study. Two heating square sections, similar to the integrated electronic components, are placed on the vertical wall of the enclosure. The imposed heating fluxes vary sinusoidally with time, in phase and in opposition of phase. The temperature of the opposite vertical wall is maintained at a cold uniform temperature and the other walls are adiabatic. The governing equations are solved using Control volume method by SIMPLEC algorithm. The sections dimension ε = D / H and the Rayleigh number Ra were fixed respectively at 0,35 and 10⁶. The average heat transfer and the maximum temperature on the active portions will be examined for a given set of the governing parameters, namely the amplitude of the variable temperatures a and their period τ_p. The obtained results show significant changes in terms of heat transfer, by proper choice of the heating mode and the governing parameters.

• Periodical: Applied Mechanics and Materials (Volume 831)
• Pages: 83-91
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.831.83
• Online since: April 2016
• Authors: Lahoucine Belarche*, Btissam Abourida
• Keywords: Dephasing, Natural Convection, Periodic Flux, Three-Dimensional Modeling, Two Heating Square Sections, Variable Heating

References

[1] S.V. Garimella, Enhanced air cooling of electronic equipment, Air Cooling Technology for Electronic Equipment. (1996) 173-202. ‏‏.

DOI: 10.1201/9781003069300-5

[2] M.A.R. Sharif and T.R. Mohammad, Natural convection in cavities with constant flux heating at the bottom wall and isothermal cooling from the sidewalls, Int. J. Therm. Sci. 44 (2005) 865–878.

DOI: 10.1016/j.ijthermalsci.2005.02.006

[3] N. Ben Cheikh, B. Ben Beya and T. Lili, Influence of thermal boundary conditions on natural convection in a square enclosure partially heated from below, Int. J. Heat and Mass Transfer. 34 (2007) 369–379.

DOI: 10.1016/j.icheatmasstransfer.2006.11.001

[4] N. Nithyadevi, P. Kandaswamy and J. Lee, Natural convection in a rectangular cavity with partially active side walls, Int. J. of Heat Mass Transfer. 50 (2007) 4688–4697.

DOI: 10.1016/j.ijheatmasstransfer.2007.03.050

[5] Qi-Hong, D. : Fluid flow & heat transfer characteristics of natural convection in square cavities due to discrete source–sink pairs, Int. J. of Heat Mass Transfer, Vol 51, 5949–5957, (2008).

DOI: 10.1016/j.ijheatmasstransfer.2008.04.062

[6] R.L. Frederick and F. Quiroz, On the transition from conduction to convection regime in a cubical enclosure with a partially heated wall, Int. J. Heat Transfer. 44 (2001) 1699–1709.

DOI: 10.1016/s0017-9310(00)00219-2

[7] N. Ben-Cheikh, A. Campo, N. Ouertatani and T. Lili, Three-dimensional study of heat and fluid flow of air and dielectric liquids filling containers partially heated from below and entirely cooled from above, Int. J. Heat Transfer. 37 (2010).

DOI: 10.1016/j.icheatmasstransfer.2010.01.011

[8] L. Belarche, B. Abourida, S. Smolen, and T. Mediouni, Effect of the inclination on three-dimensional Incompressible fluid flowin a discretely heated cavity. Key Engineering Materials. 597 (2014) 3-8.

DOI: 10.4028/www.scientific.net/kem.597.3

[9] A. Bejan and A.D. Kraus, Heat Transfer Handbook, Wiley, New York, (2003).

[10] R. J. Goldstein et al., A review of 2003 literature, Int. J Heat and Mass Transfer. 49 (2006) 451-534.

[11] J.I. Lage and A. Bejan, The resonance of natural convection in an enclosure heated periodically from the side. Int J Heat Mass Transfer. 36 (1993) 2027–(2038).

DOI: 10.1016/s0017-9310(05)80134-6

[12] B. Abourida, M. Hasnaoui and S. Douamna, Convection Naturelle dans une Cavité Carrée avec des Parois Verticales Soumises à des Températures Périodiques. Rev. Gen. Therm. 37 (1998) 788–800.

DOI: 10.1016/s0035-3159(98)80005-6

[13] B. Abourida, M. Hasnaoui and S. Douamna, Transient natural convection in a square enclosure with horizontal walls submitted to periodic temperatures. Numerical Heat Transfer, PartA, 36 (1999) 737–750.

DOI: 10.1080/104077899274543

[14] N. Ben Cheikh, B. Ben Beya and T. Lili, Aspect ratio effect on natural convection flow in a cavity submitted to a periodical temperature boundary. Int. J. Heat Transfer, 129 (2007), 1060–1068.

DOI: 10.1115/1.2728908

[15] G. Wang, M. Zeng, Y.C. Ren, H. Ozoe and Q.W. Wang, Transient heat flux measurement of natural convection in an inclined enclosure with time-periodically-varying wall temperature, Experimental Thermal and Fluid Science. 35 (2011) 105–111.

DOI: 10.1016/j.expthermflusci.2010.08.011

[16] L. Belarche, B. Abourida and T. Mediouni, Three-dimensional Numerical Study of Natural Convection in a Cubical Enclosure with Two Heated Square Sections Submitted to Periodic Temperatures, IJCSI International Journal of Computer Science Issues. 10 (2013).

DOI: 10.4028/www.scientific.net/amm.831.83

[17] S.V. Patankar, Numerical Heat Transfer and Fluid Flow, McGraw-Hill, New York, (1980).
