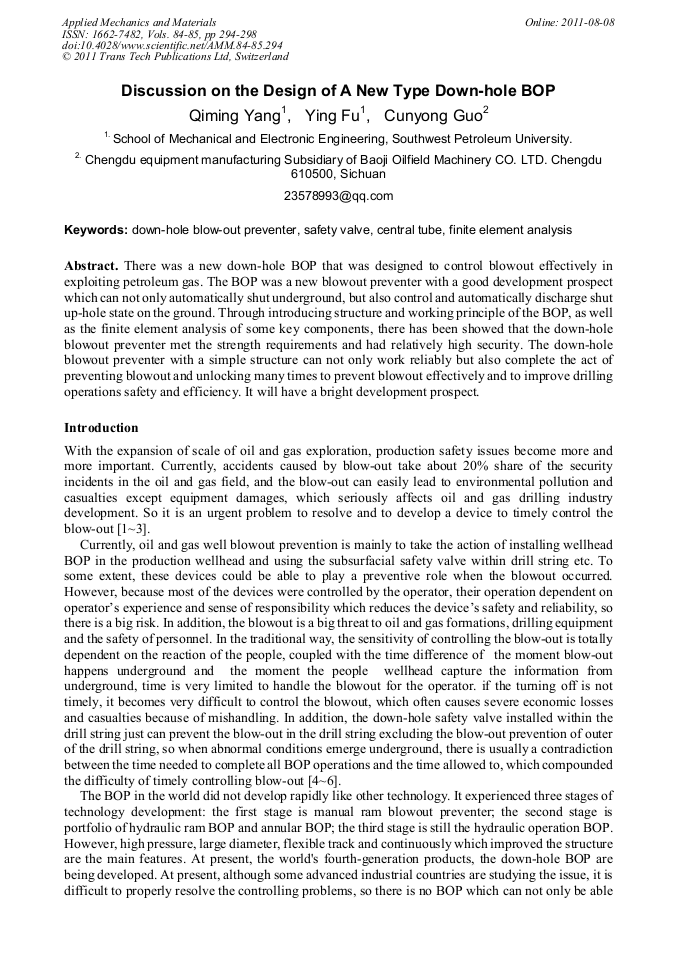

Discussion on the Design of a New Type Down-Hole BOP

Abstract:

There was a new down-hole BOP that was designed to control blowout effectively in exploiting petroleum gas. The BOP was a new blowout preventer with a good development prospect which can not only automatically shut underground, but also control and automatically discharge shut up-hole state on the ground. Through introducing structure and working principle of the BOP, as well as the finite element analysis of some key components, there has been showed that the down-hole blowout preventer met the strength requirements and had relatively high security. The down-hole blowout preventer with a simple structure can not only work reliably but also complete the act of preventing blowout and unlocking many times to prevent blowout effectively and to improve drilling operations safety and efficiency. It will have a bright development prospect.

• Periodical: Applied Mechanics and Materials (Volumes 84-85)
• Pages: 294-298
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.84-85.294
• Online since: August 2011
• Authors: Qi Ming Yang, Ying Fu, Cun Yong Guo
• Keywords: Central Tube, Down-Hole Blow-Out Preventer, Finite Element Analysis (FEA), Safety Valve

References

[1] XIAO Xiaohua, Du Li, Li Hongwei, Fu Yukun. Downhole BOP Present Condition Analysis and Research [J]. Inner Mongolia Petrochemical, 2010, 14, 1-3.

[2] CHEN Lixia, LIU Qingyou, SHAN Daiwei1, XIAO Xiaohua, QIN Shikuan. Construction and Qualitative Analysis of Fault Tree for BOP Control System [J]. Oil Field Equipment, 2008, 10, 64-67.

[3] Wang Cunxin, Li Sigui, Wang Zengguo. Research on Sub-sea BOP Arrangement for Deepwater Drilling [J]. Oil Field eQUUIPMENT, 2009, 38, 72-75.

[4] ZhangHui, Liu Chunquan, LuoHaiy. Design of a Rotating Blow-outPreventer(RBOP) with a New Sealing Structur [J]. MechanicalScience and Technology forAerospace Engineering, 2009, 28, 234-237.

[5] A. Andersen , A. Sivertsen , Downhole Blowout Preventer [C], SPE 71370. Orleans, Louisiana. SPE Annual Technical Conference. 30 September - 3 October2001.

DOI: 10.2118/21962-ms

[6] LIU Feng, QI Yao-guang, ZHAN Chuan-xian. Design and Research of Blowout Preventer Used for Workover Operation in Beach Oilfield [J]. Oil Field Equipment, 2009, 38(3), 39-45.

[7] S. Sangesland, A. Sivertsen, E. Hiorth, Downhole Blowout Preventer[C]. SPE/I-ADC 21692. Amserdam. SPE/IADC Drilling Conference. March. 1991, 11 -14.

DOI: 10.2118/21962-ms

[8] Ronald L. Nieuwstad, Stavanger, Down-hole Blow-out Preventers[P].U.S.A.: 4712613, Dec. 15, (1987).

[9] John M. Bednar, Houston; Clifford W. Pe-tersen, Acoustically Actuated Down-hole Blowout Preenter[P].U.S.A.: 4367794, Jan. 11, (1983).

[10] Sigbjorn Sangesland, Blow-out Prevention Device for Shutting off An Annulus Between A When Drilling for Oil or Gas[P].U.S.A.: 5404953, Apr. 11, (1995).

[11] WANG Zhiyun, ZHANG Jiming. Design of Full Bore Down-hole Auto Ejection Controlle [J]. Oil Field Equipment, 2009, 38(4), 37-40.
